Iluminação de perfil LED – formas lineares, curvas e personalizadas

Introduction – Lighting Is No Longer Linear

Lighting design today goes far beyond straight lines.
In modern architecture and commercial interiors, lighting plays a vital role in shaping the visual identity of a space—not just in function, but in form.
Our modular LED profile lighting system supports a wide range of configurations, including linear, circular, oval, S-curve, and fully custom-shaped forms, built from bendable aluminum profiles with seamless connections.
Whether used in recessed ceilings, suspended decorative zones, or feature lighting layouts, these fixtures provide precise, flexible, and visually striking solutions for offices, hotel lobbies, retail environments, and architectural design projects.

LED Linear and Curved Profile Lights – Technical Specifications & Price Guide

Circular LED Lights – Sizes, Specs & Pricing

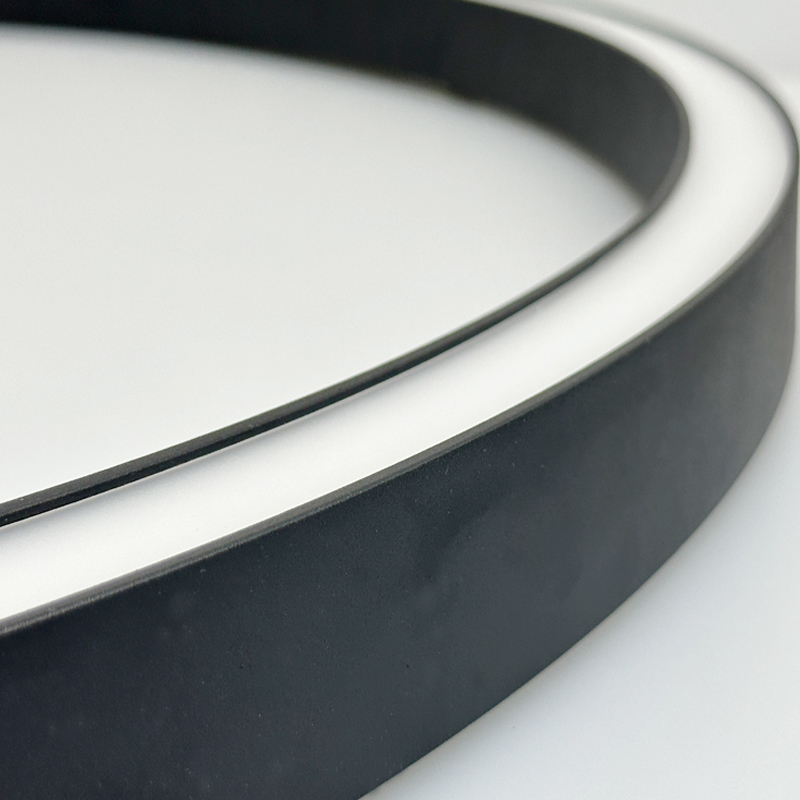

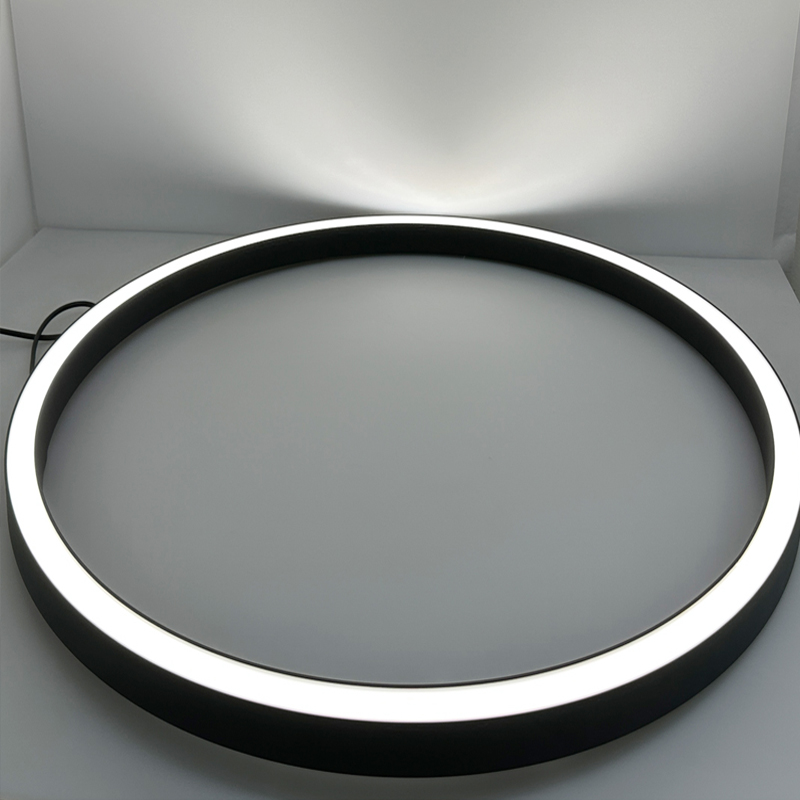

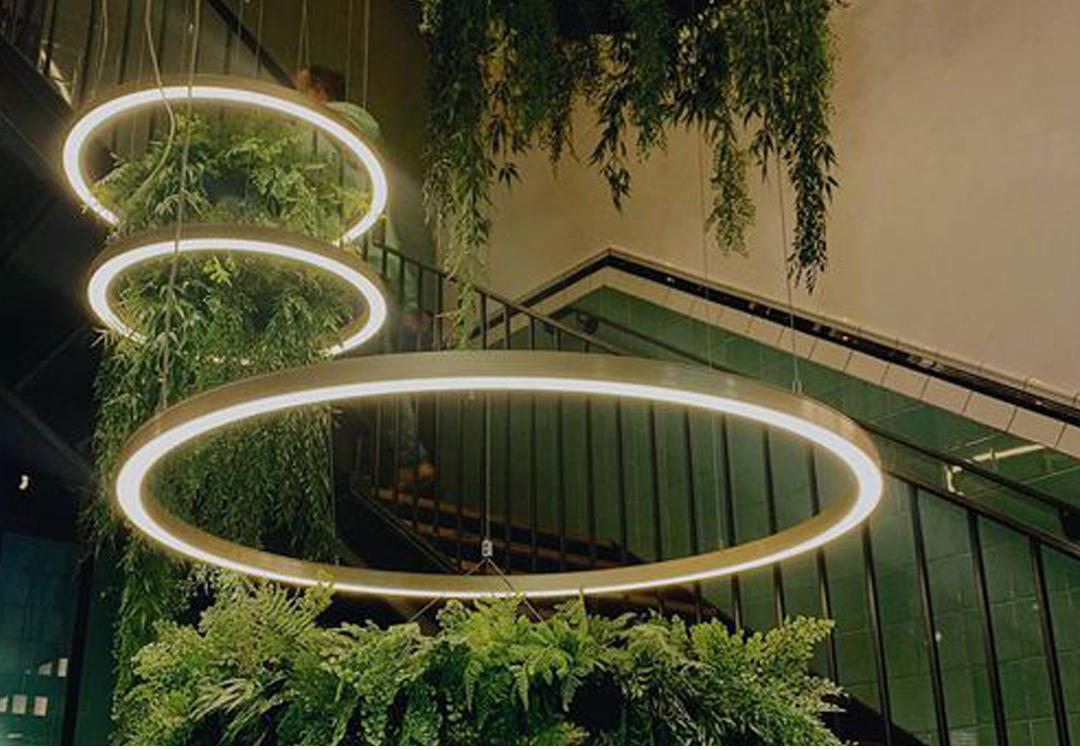

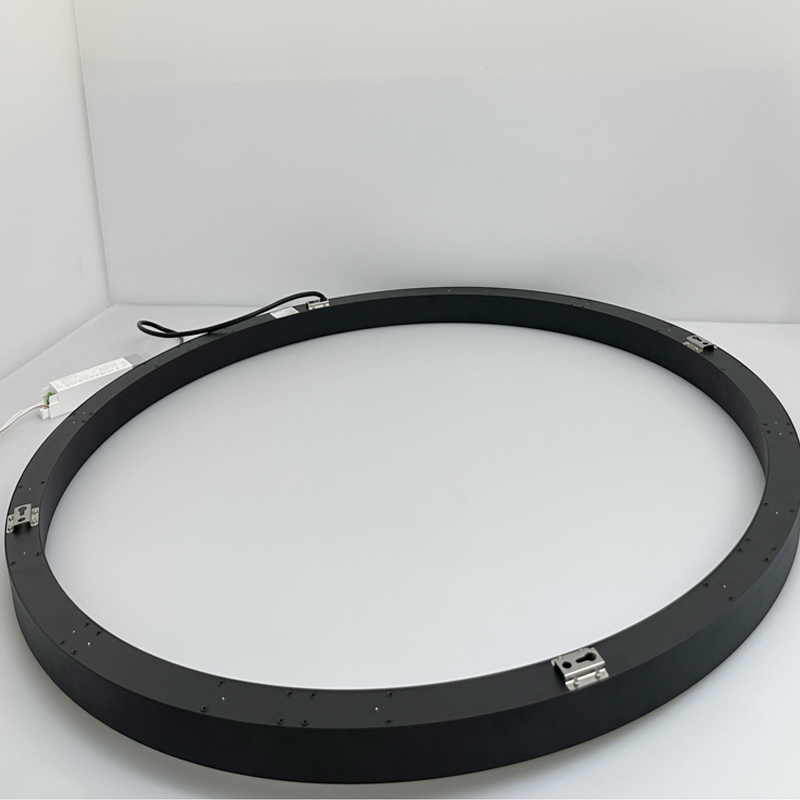

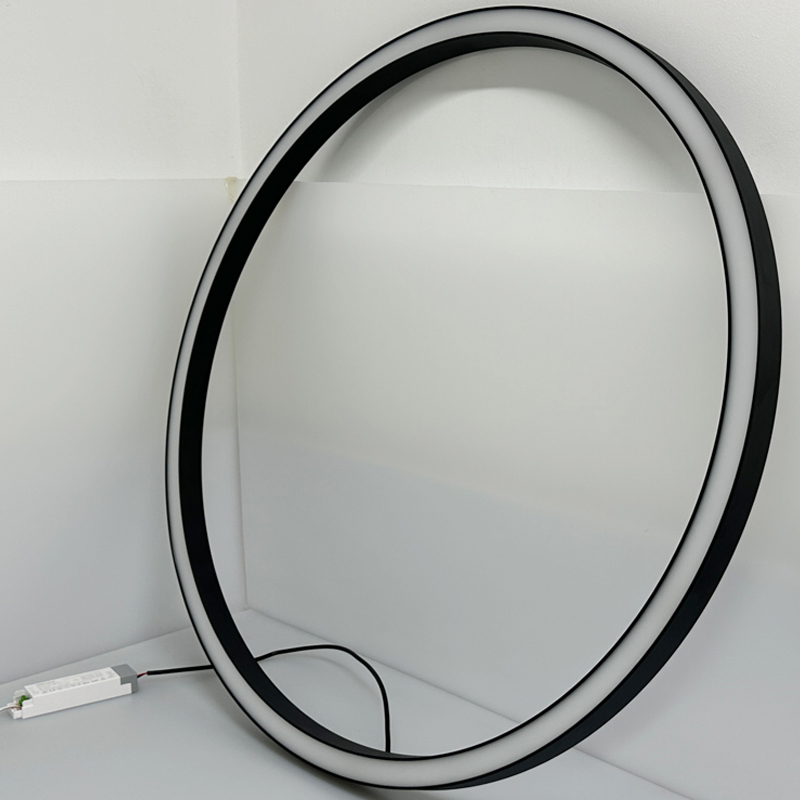

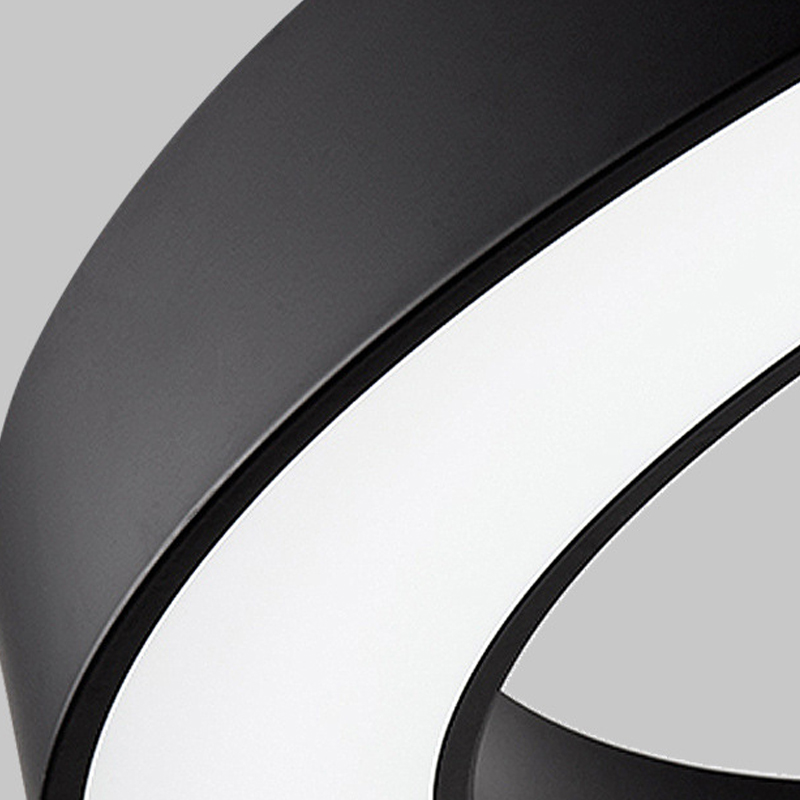

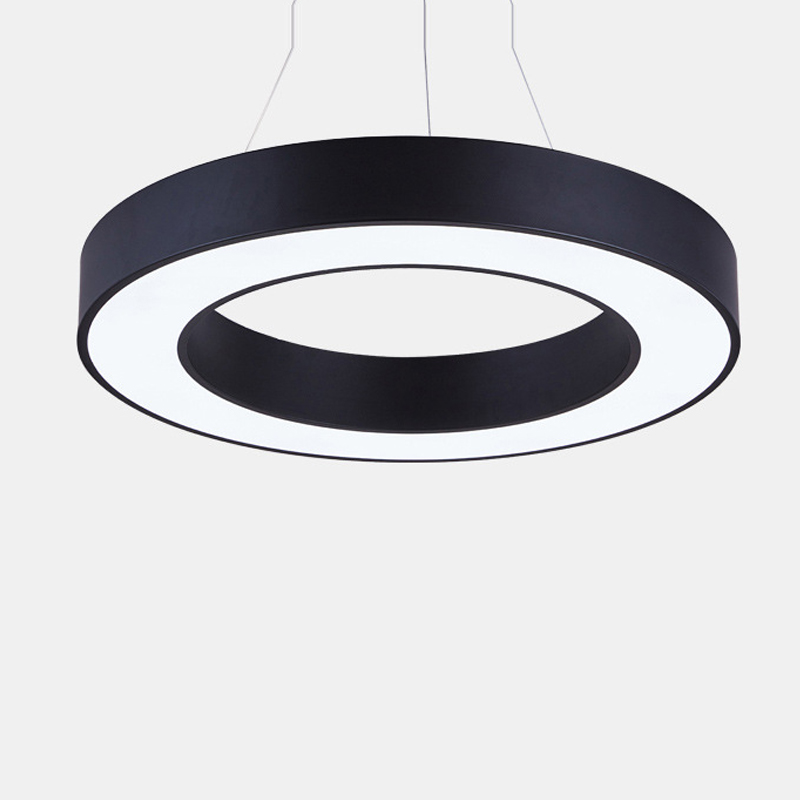

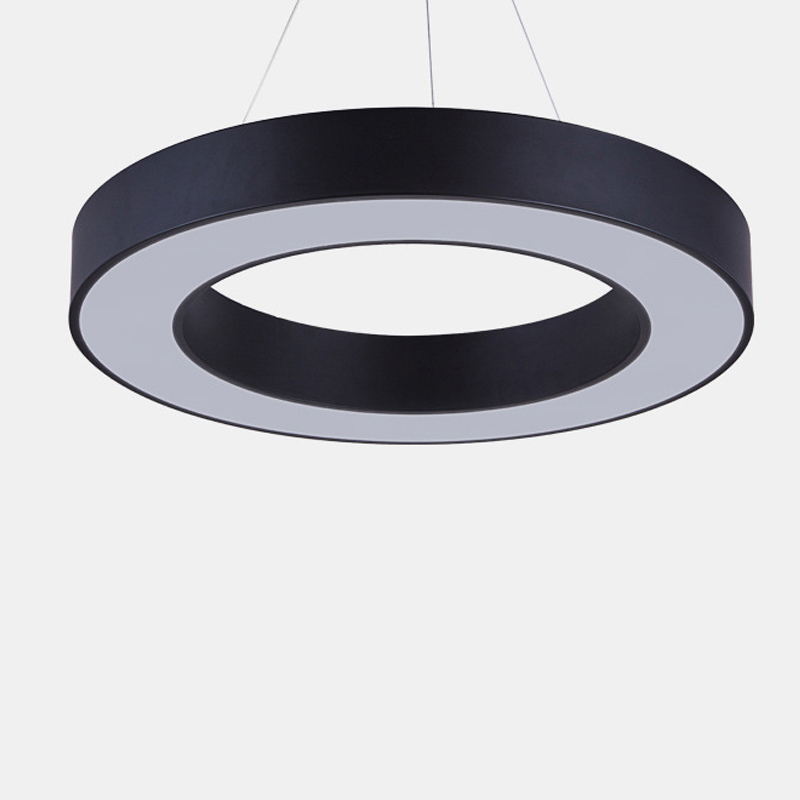

Circular or ring-shaped LED profile lights are a popular choice for modern commercial and architectural spaces. Their clean geometry and balanced lighting output make them ideal for conference rooms, hotel lobbies, dining spaces, and high-end retail ceilings. Available in single-ring or multi-ring formats, they can be suspended or ceiling-mounted for various design styles.

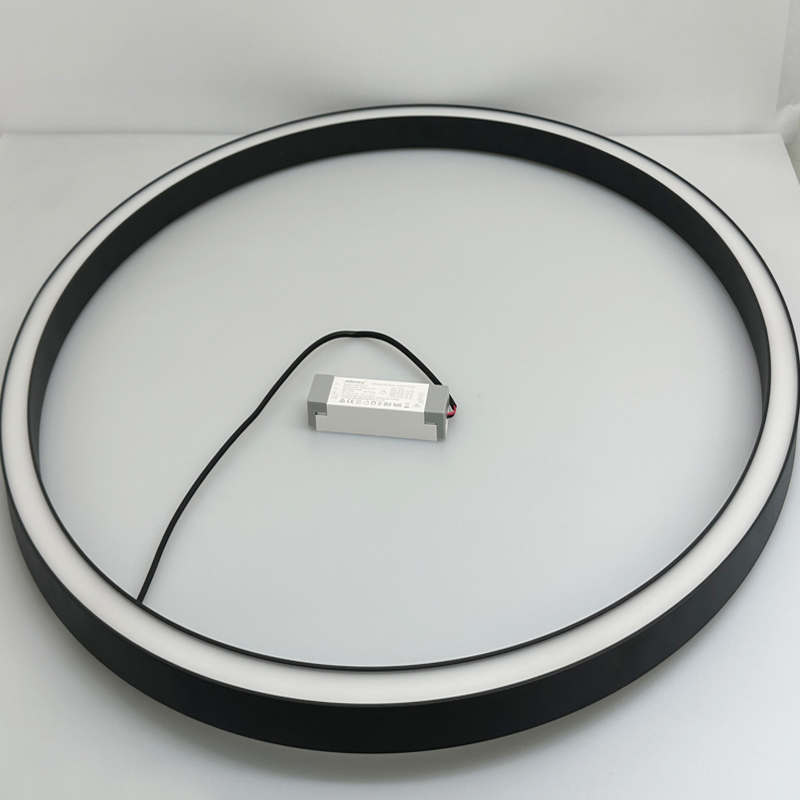

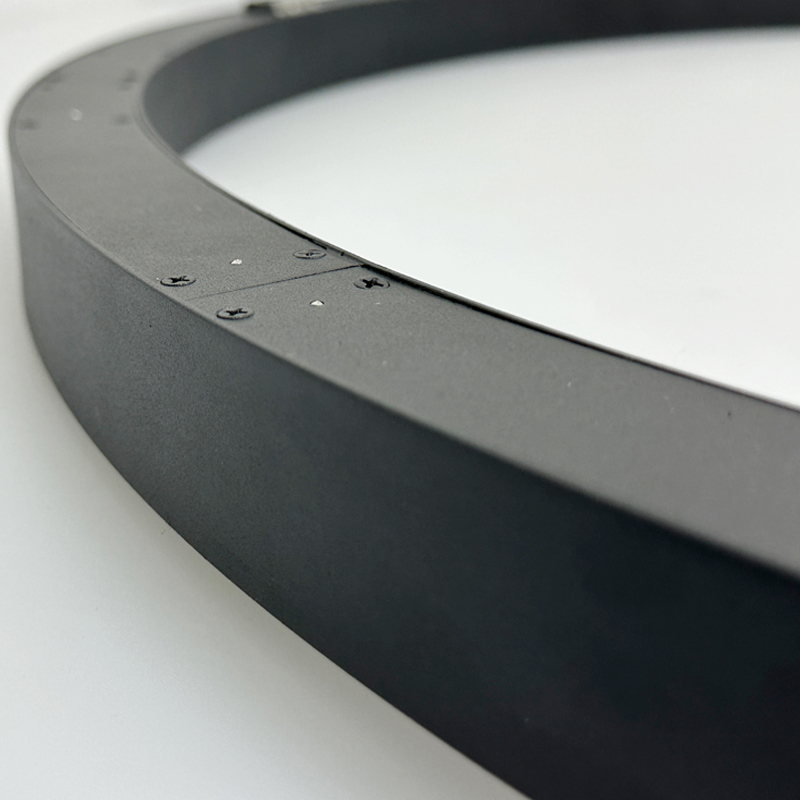

Product Display

Product Parameters

Tensão de entrada	AC100-277V / AC220-240V,50/60HZ
Material	6063 Aluminium Profile + Opal Diffuser
Profile Size	W35*H35mm
Chip de LED	SMD2835
Temperatura de cor	3000K / 4000K / 6000K
Potência	10W-40W
Luminous Flux	>90Ra
PF	>95
Product Size	Φ450-1500*W35*H35 mm
Flicker Free	Sim
Ângulo do feixe	120°
Function Option	ON&OFF / 0-10V / DALI / Triac dimming
Método de instalação	Suspension Mount / Ceiling Surface Mount / Recessed Mount
Finish Color	Black / White / Gold / Silver
Grau IP	IP20
Garantia	5 anos

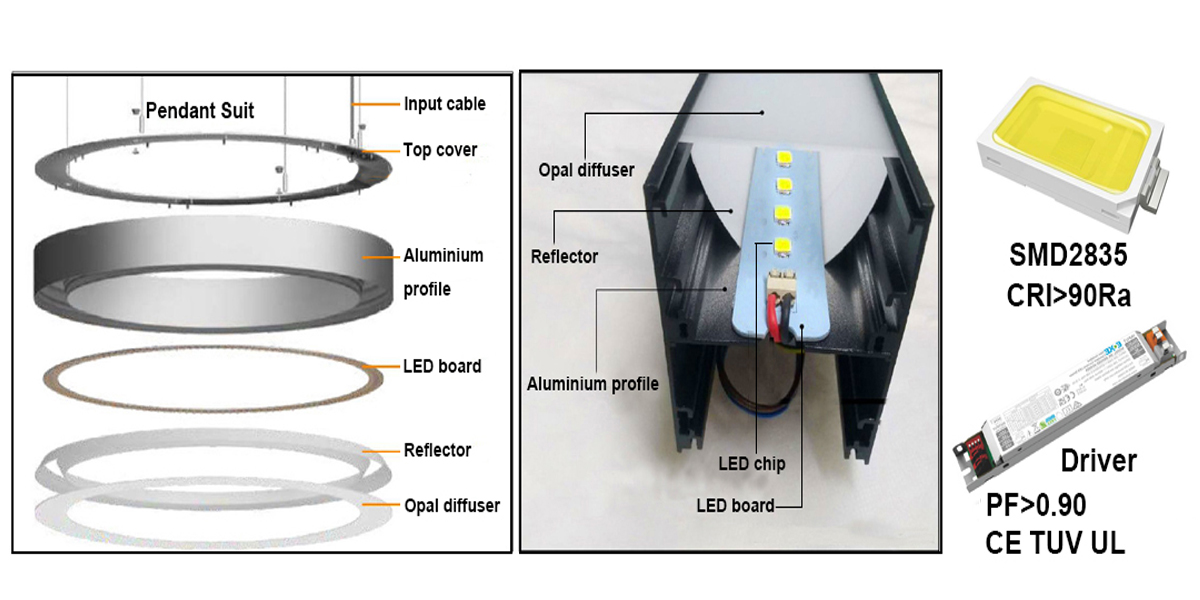

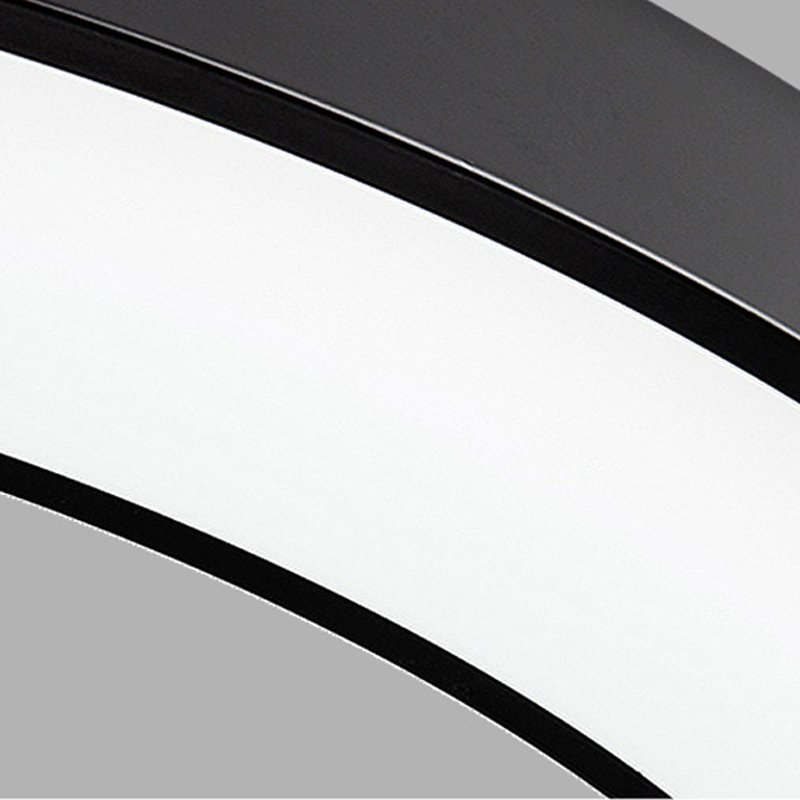

Product Structure

Cost Breakdown (EXW Price Estimate)

Size (Diameter)	Perfil de alumínio	LED Board	Power Driver	Total Estimated Cost
Ø600mm	$15	$10	$15	~$40 USD
Ø900mm	$20	$12	$18	~$50 USD
Ø1200mm	$25	$15	$20	~$60 USD
Ø1500mm	$30	$18	$25	~$70–80 USD

Actual price may vary based on finish color (black/white/silver), LED density (CRI 80/90), dimming system, and order quantity

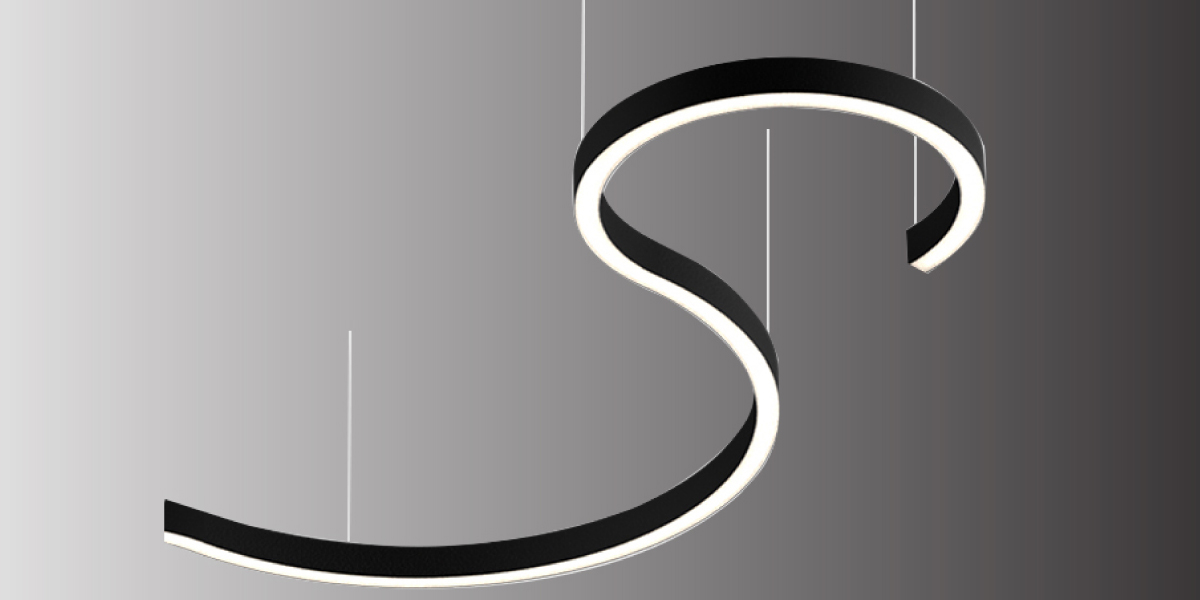

S-Curve Profile Lights – Flowing Forms for Creative Spaces

S-shaped or wave-style LED profile lights deliver dynamic flow and visual impact to retail, exhibition, and artistic spaces. Built with flexible aluminum channels and high-CRI LED strips, these curved luminaires break the rigidity of traditional lighting and offer continuous, soft curves that attract attention from every angle. Ideal for showrooms, galleries, and high-end commercial interiors.

Product Parameters

Tensão de entrada	AC100-277V / AC220-240V,50/60HZ
Material	6063 Aluminium Profile + PMMA Diffuser
Profile Size	W60*H60mm
Chip de LED	SMD2835
Temperatura de cor	3000K / 4000K / 6000K
Potência	10W-240W
Luminous Flux	>90Ra
PF	>95
Product Size	L890-9940*W235-2110 mm
Flicker Free	Sim
Ângulo do feixe	120°
Function Option	ON&OFF / 0-10V / DALI / Triac dimming
Método de instalação	Suspension Mount / Ceiling Surface Mount / Recessed Mount
Finish Color	Black / White / Gold / Silver
Grau IP	IP20
Garantia	5 anos

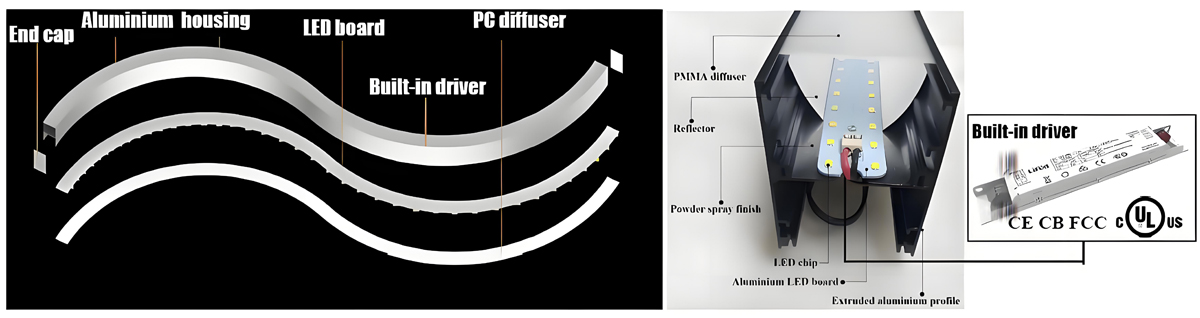

Product Structure

Cost Breakdown (EXW Price Estimate)

Section Length	Perfil de alumínio	LED Board	Driver	Total Estimated Cost
0.6m	$8	$4	$6	~$18 USD
1.2m	$12	$6	$8	~$26 USD
1.5m	$15	$8	$10	~$33 USD

Customization may affect cost depending on curve radius, LED configuration, dimming system, and mounting hardware.

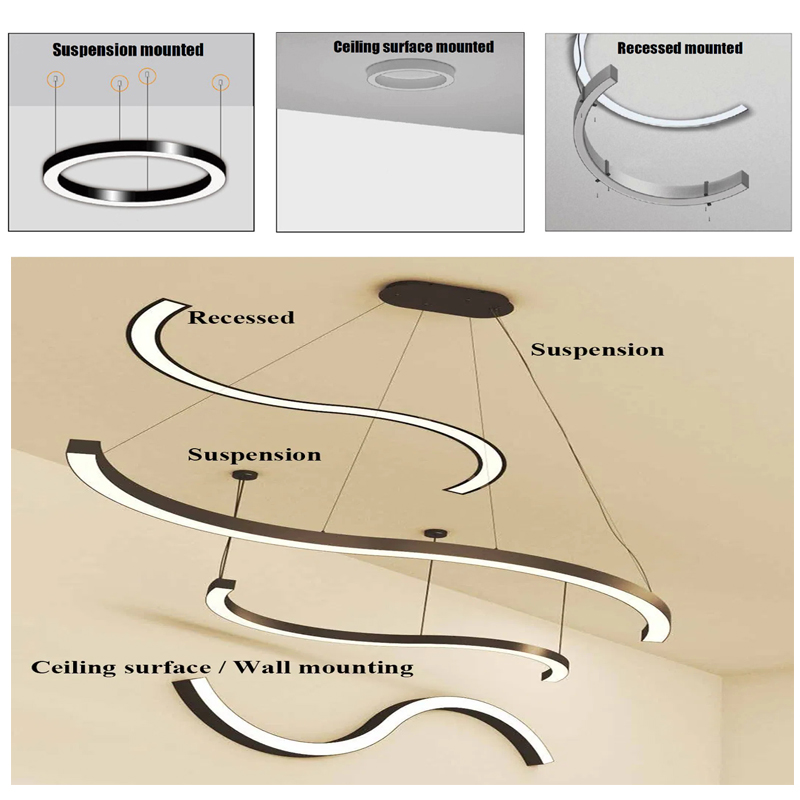

Mounting Methods & Included Accessories

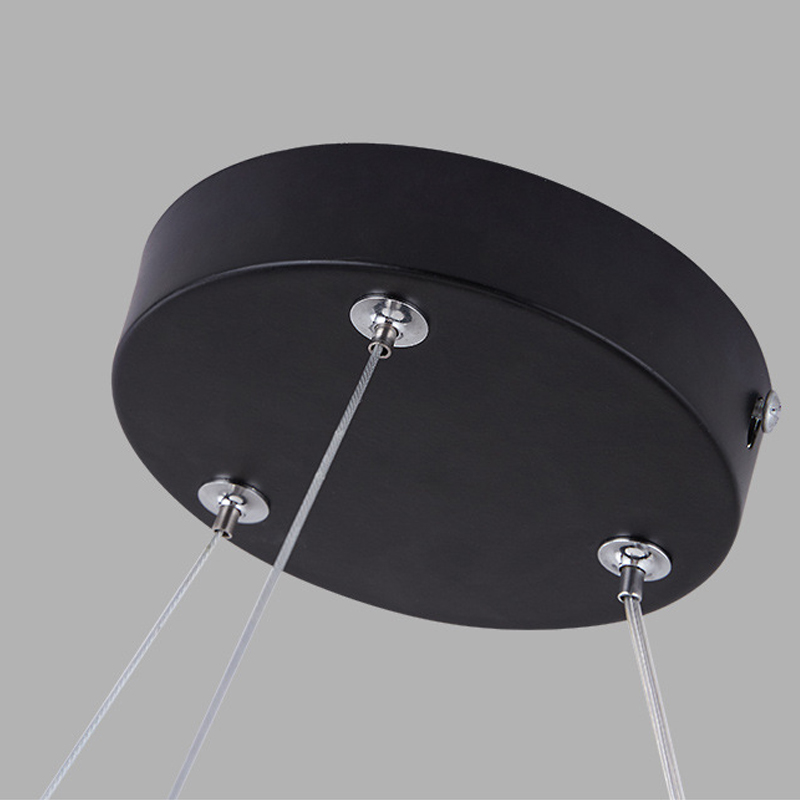

All circular and curved LED profile lights support three mounting types: suspended, surface-mounted, and recessed. Each installation method includes standard accessories tailored to the setup—such as adjustable steel suspension wires, mounting clips, expansion plugs, and external LED drivers compatible with DALI, 0–10V, or Triac dimming systems.
Recessed linear profile lights are especially favored in commercial ceilings where a clean, low-profile finish is required.

All fixtures are shipped with essential mounting hardware. Pre-wired kits and customized mounting solutions are available for OEM orders and large-scale projects.

Included Accessories (Standard Package)

Acessório	Descrição

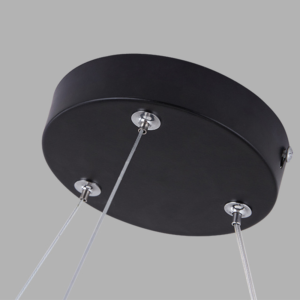

Suspension kit	Wire cables, adjustable holders, and ceiling hooks
Power driver (external)	Matched to fixture power and dimming protocol
Screws & anchors	For surface mount or securing suspension cables
Quick-connect terminals	Optional for plug-and-play pre-wired solutions

Application Scenarios – Where Design Meets Function

Each lighting shape serves a distinct visual and spatial purpose. While straight linear lights provide structure and uniform illumination, circular and S-curve LED profile lights bring soft geometry and artistic flow into modern commercial interiors.

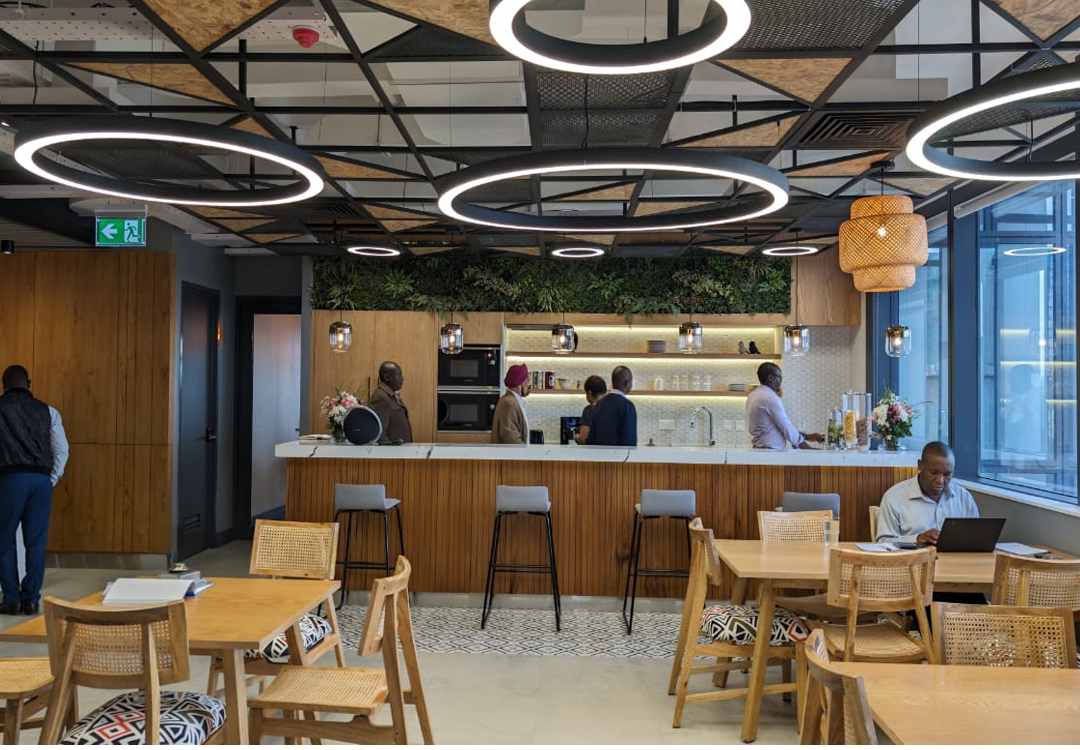

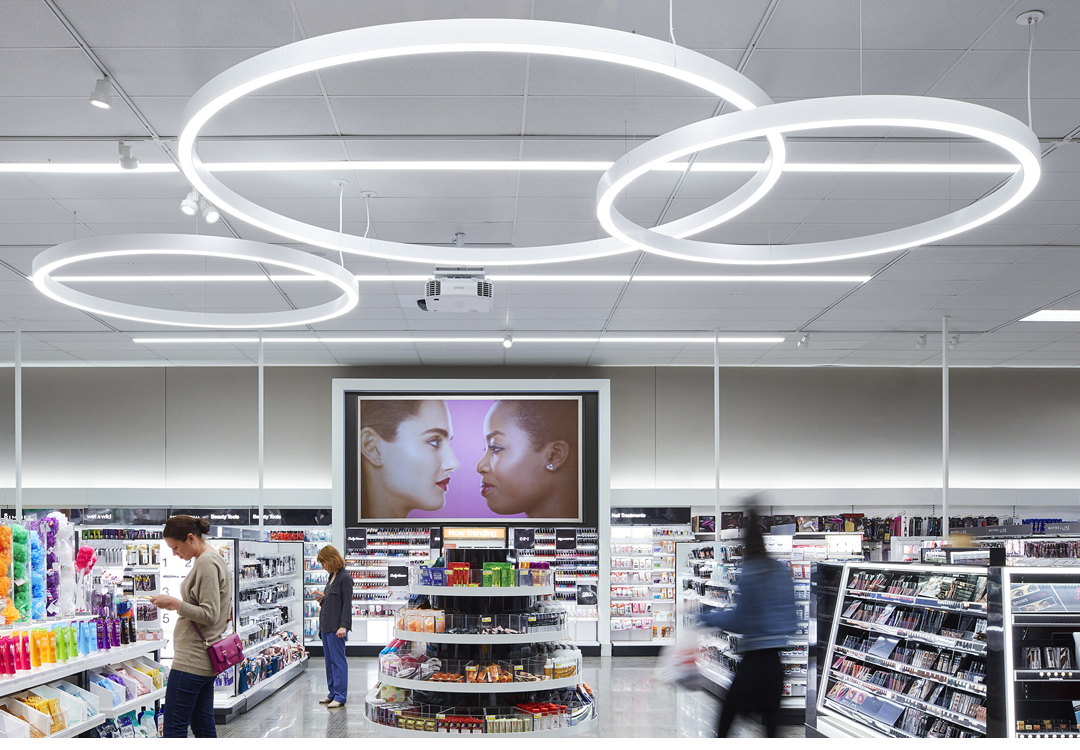

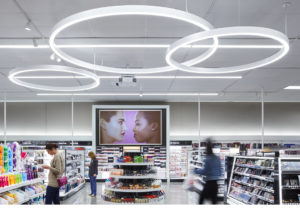

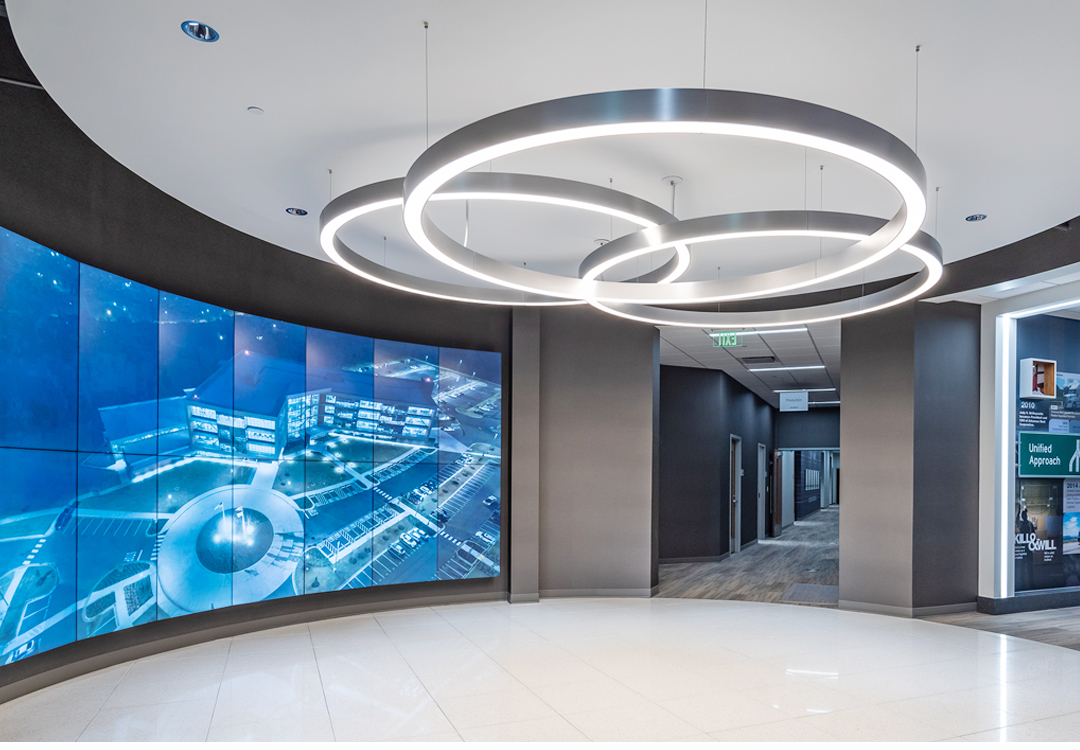

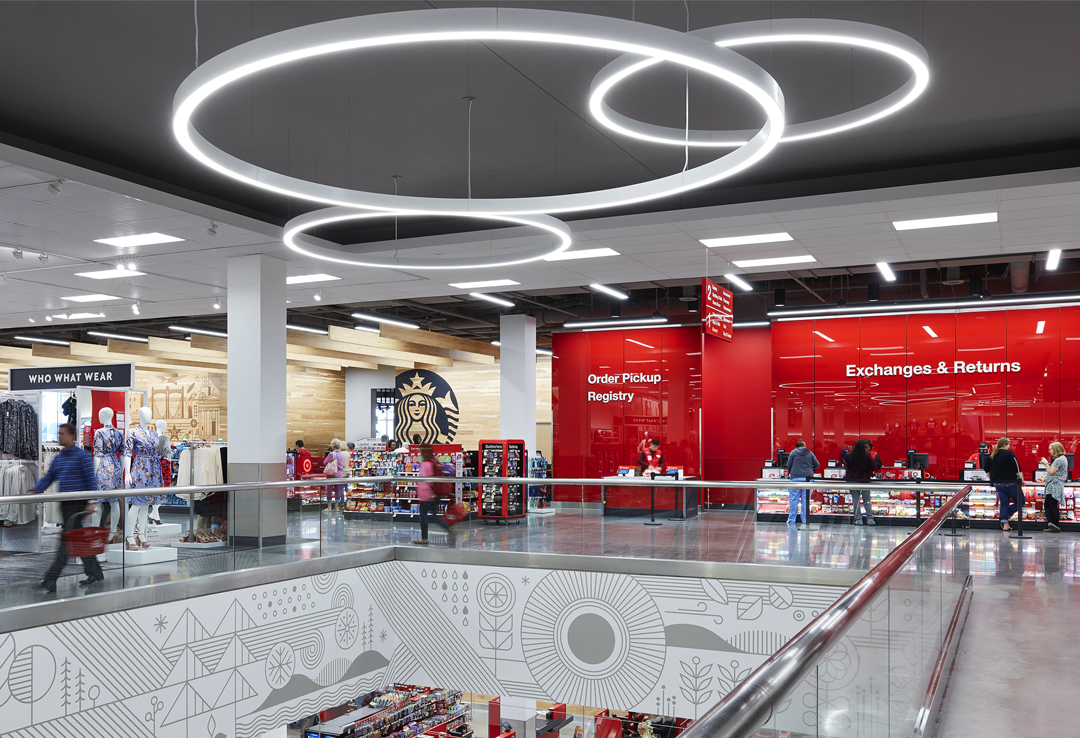

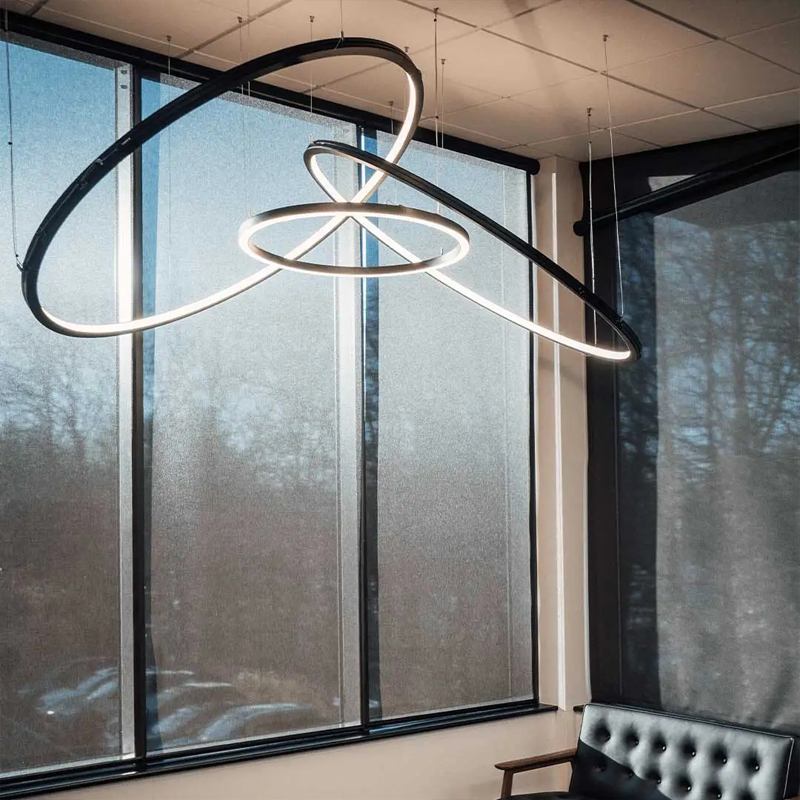

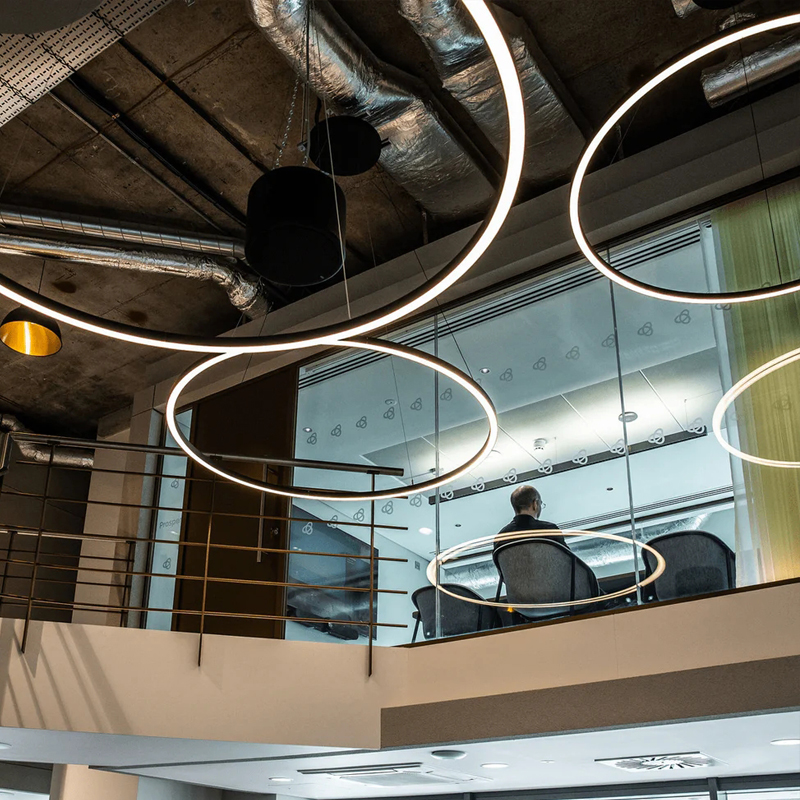

Circular LED profile lights are ideal for spaces that require balance, symmetry, and a strong central focus. They are commonly installed in hotel lobbies, reception counters, and high-end retail environments. Circular rings also work exceptionally well above round meeting tables or in conference rooms, and are frequently used as statement lighting in dining areas and restaurant ceilings.

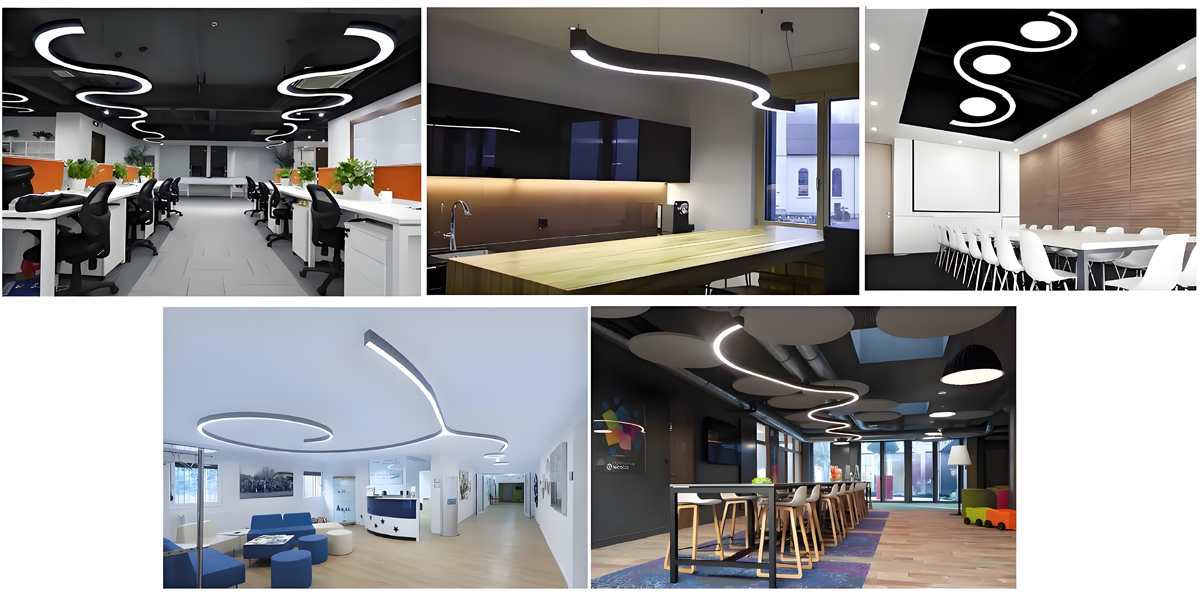

On the other hand, S-curve and wave-shaped LED lights are designed for dynamic spaces that demand visual movement and creativity. They’re a perfect fit for boutique retail stores, gallery-style exhibitions, and brand showrooms where lighting enhances the customer journey. These flowing luminaires are also popular in luxury cosmetics zones and fashion displays, where ambiance and design drama are key.

Both shapes can be ceiling-mounted or suspended, depending on the spatial layout. Their sculptural forms not only deliver functional illumination, but also elevate the overall design language of the space—turning ceilings into canvases.

Lighting Design Tips by Shape

Choosing the right architectural LED profile light is not just about aesthetics—it’s about function and atmosphere. Circular lights work as visual anchors above reception desks or conference tables, while S-curve luminaires enhance movement and rhythm across ceiling layouts. When integrated into a modular LED lighting system, both shapes help define zones, soften geometry, and add brand identity to commercial interiors.

Circular Fixtures – Create Visual Focus & Balance

Use as a centerpiece above reception desks, meeting tables, or dining areas to create a clear focal point in the room.

Layer different ring sizes in open spaces to add vertical depth and symmetry.

For retail or hospitality use, choose larger diameters (Ø1200mm–1500mm) to create architectural presence.

S-Curve Fixtures – Guide Movement & Break Monotony

Ideal for hallways or gallery-like spaces, S-curve lights lead the eye and guide the flow of movement.

Combine with linear fixtures to break ceiling monotony and soften architectural edges.

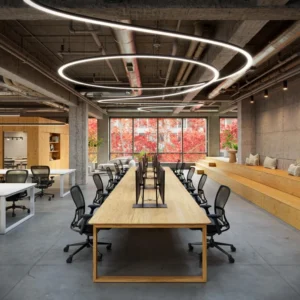

Curved lines help define zones in open-plan offices or exhibition spaces without using physical partitions.

Design Bonus: Combine Shapes for Layered Impact

Use circular lights for central focal points and S-curves along perimeters or corridors for dynamic contrast.

Add DMX or DALI dimming systems to control lighting rhythm and scene transitions across zones. In multi-purpose spaces, pair warm CCT (3000K) circular lighting with cooler CCT (4000K–5000K) curved runs for subtle visual zoning.

Customization & OEM Services

We understand that every lighting project is unique. Whether you’re an interior designer, project contractor, or lighting brand, we offer flexible customization and full OEM/ODM services to meet your specific requirements—both technically and aesthetically.

Our curved and circular LED profile lights can be tailored in the following ways:

Shape & Size Customization

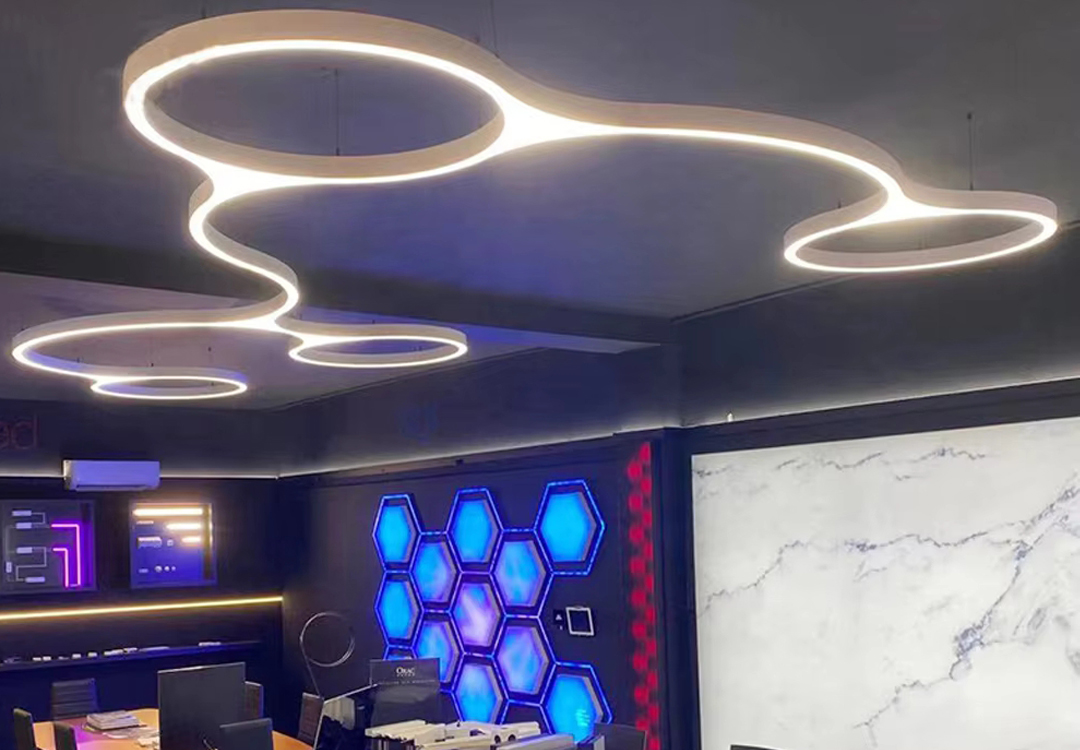

Beyond standard rings and curves, we offer custom LED lighting shapes derived from basic circular, linear, or S-curve forms—such as double-ring, offset arcs, wavy contours, or polygon-based designs. These profiles are ideal for feature ceilings, boutique layouts, and complex lighting patterns requiring creative design expression.

Profile Width & Finish Options

Choose from various widths (e.g., 20mm / 35mm / 60mm) and finishes including white, black, silver, or gold anodizing.

Lighting Specifications

We offer multiple LED options including SMD2835, SMD2216, and COB strips, all available with CRI >90 for high color accuracy. Choose from 2700K to 6000K for general illumination, or RGB/RGBW LED strips for mood or decorative lighting. For detailed LED strip specifications and photometric options, visit our LED Strip Light Collection.

Dimming & Control Systems

Support for ON/OFF, 0-10V, DALI, Triac, and DMX512 dimming. Pre-programmed addressable pixel control available.

Branding & Packaging

OEM clients can customize product labels, packaging, user manuals, and laser-engraved or screen-printed logos.

Engineering Support

Our team provides CAD drawings, photometric data, and wiring diagrams for your project planning. Sample testing and pre-assembled kits available upon request. For more examples of custom-shaped and bendable lighting solutions, read our guide: Custom Bendable Linear Light Fixtures – The Perfect Lighting Solution for Complex Architectural Projects

FAQ – Frequently Asked Questions

Call to Action – Let’s Light Up Your Vision

Whether you’re sourcing lighting for a high-end office, a luxury retail space, or a creative architectural project, our modular curved and circular LED profile lights offer the flexibility, performance, and design freedom to bring your ideas to life.

We specialize in supporting designers, contractors, and lighting brands with tailored solutions—from concept to production.

Looking for a custom shape?

Need a fast quote or project sample?

Ready to scale your lighting solution with OEM support?

Let’s talk. Contact us today to request a quotation, explore samples, or start your next project with expert lighting support.

Planning other linear lighting projects?

Discover our complete Perfil de alumínio LED range for surface, recessed, and suspended installations.
