Surge Protective Devices
LED Lighting | Photovoltaic (PV) Systems | Power Supply Systems
Surge protective devices (SPDs) provide reliable overvoltage protection for LED lighting, solar photovoltaic (PV), and AC/DC power systems.
Built with MOV + GDT hybrid circuits and compliant with IEC 61643-11, our Type 2 and Type 3 surge protection devices safeguard LED drivers, solar inverters, and power distribution panels from lightning surges, transient overvoltages, and grid disturbances — ensuring stable performance and long-term reliability in commercial and industrial environments.
Philips Surge protection devices

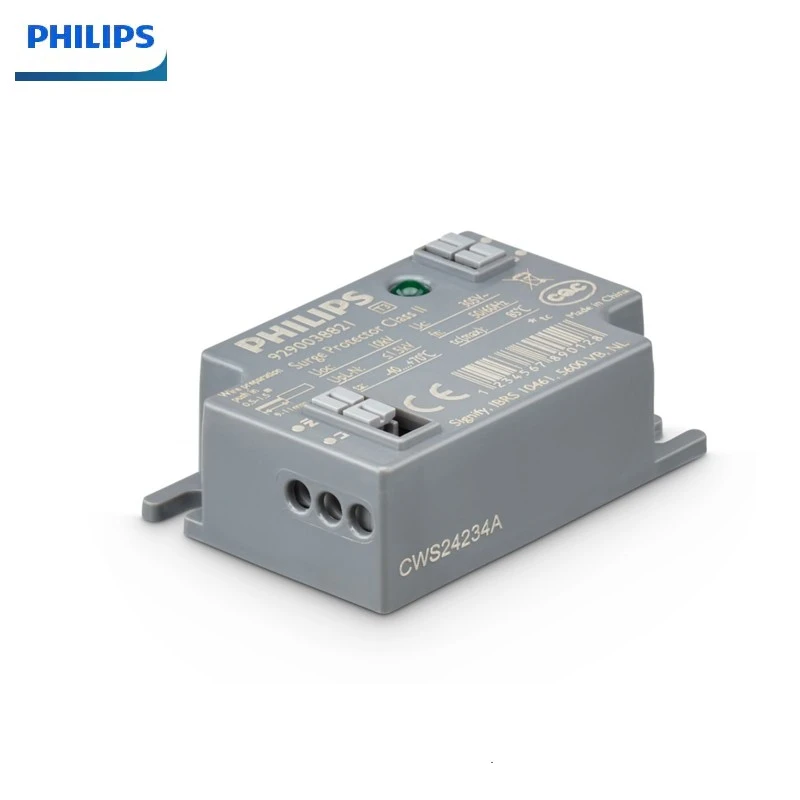

Surge 10kV Protector Class-II serial
Designation: Type 3
Classification: Class III
Protection mode: Diff. mode
Rated input voltage Un(L-N): 230VAC, 50/60Hz
Max. continuous operating voltage Uc (L-N): 305VAC, 50/60Hz
Supported power grids: TN, TT, IT
Rated discharge current In(L-N): 5kA
Max. voltage protection level at In Up (L-N): 15kV
Open-circuit voltage Uoc: 10kV
Backup fuse: 16A
Rated load current (max): 5A
Power consumption (max): 1W
Certifications: CE, CQC, UKCA, TÜV Rheinland
Lifetime: 100,000 hours

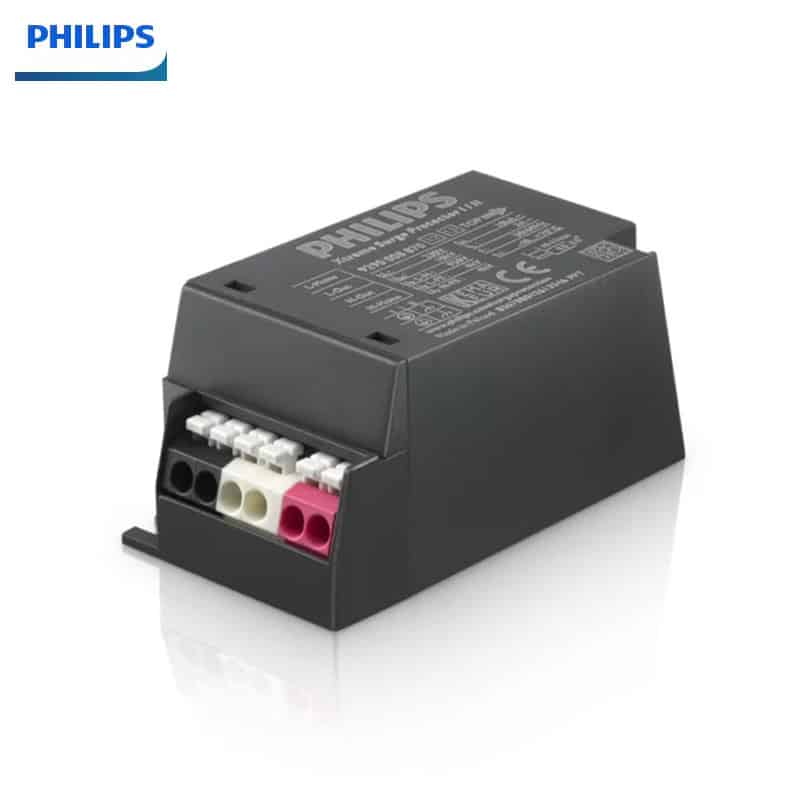

Surge Protector Class-I
Designation: Type 3
Classification: Class III
Protection mode: Diff. mode & Comm. mode
Rated input voltage Un: 230VAC, 50/60Hz
Max. continuous operating voltage Uc: 305VAC, 50/60Hz
Supported power grids: TN, TT, IT
Rated discharge current In: 5kA
Max. voltage protection level at In Up: L-N 1.5kV, L(N)-PE 2kV
Open-circuit voltage Uoc: 10kV
Backup fuse: 16A
Rated load current (max): 4A
Power consumption (max): 0.01W
Certifications: CE, CQC, UKCA, TÜV Rheinland
Lifetime: 100,000 hours

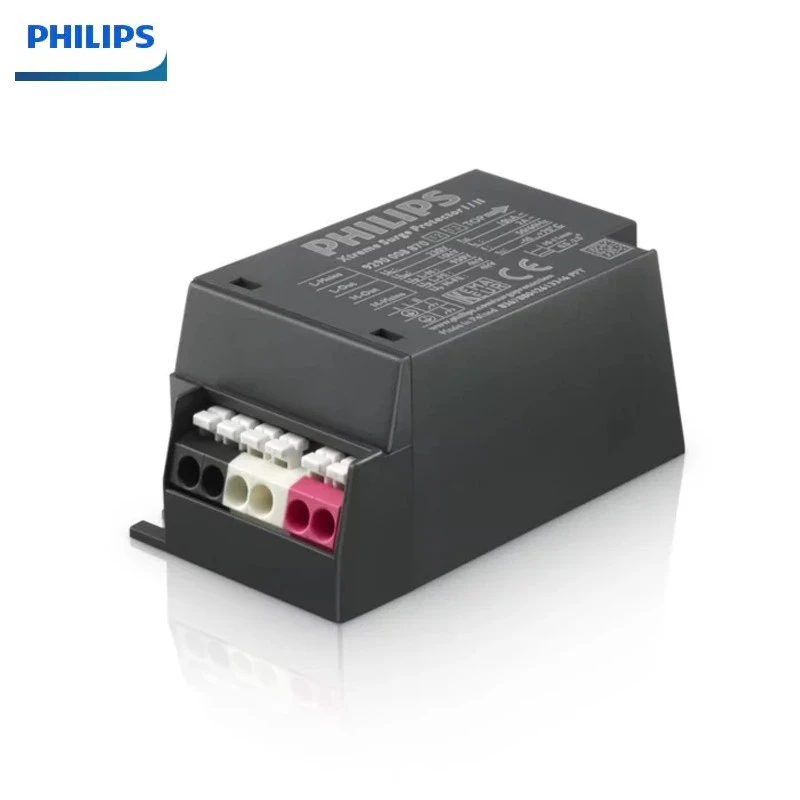

Surge Protector Class-II
Designation: Type 3
Classification: Class III
Protection mode: Diff. mode
Rated input voltage Un: 230VAC, 50/60Hz
Max. continuous operating voltage Uc: 32555VAC, 50/60Hz
Supported power grids: TN, TT, IT
Rated discharge current In(L-N): 5kA
Max. voltage protection level at In Up(L-N): 1.5kV
Open-circuit voltage Uoc: 10kV
Backup fuse: 20A
Rated load current (max): 4A
Power consumption (max): 0.001W
Certifications: CE, CQC, UKCA, TÜV Rheinland
Lifetime: 100,000 hours
Surge Protective Devices for LED Lighting
SPD05-AC275i-D ClassII+III
Designation: Type2+3
Classification: Class III
Protection mode: L-N , N-PE , L-PE
Rated input voltage Un(L-N): 230VAC, 50/60Hz
Max. continuous operating voltage Uc (L-N): 275VAC, 50/60Hz
Max discharge current (8/20μs) Imax:15 kA
Nominal discharge current (8/20μs) In:5 kA
Voltage protective level Up: L-N ≤1.3 kV, N-PE ≤0.5 kV, L-PE ≤1.5 kV
Open circuit voltage Uoc: 10 kV
Backup fuse: 20A
Housing material: UL94V-0
Degree of protection: IP20
SPD05-AC275i-D ClassII+III
Designation: Type2+3
Classification: Class III
Protection mode: L-N , N-PE ,L-PE
Rated input voltage Un(L-N): 230VAC, 50/60Hz
Max. continuous operating voltage Uc (L-N): 275VAC, 50/60Hz
Max discharge current (8/20μs) Imax:6 kA
Nominal discharge current (8/20μs) In:3 kA
Voltage protective level Up: L-N ≤1.3 kV, L(N)-PE ≤1.5 kV
Open circuit voltage Uoc: 6 kV
Backup fuse: 16A
Housing material: UL94V-0
Degree of protection: IP20

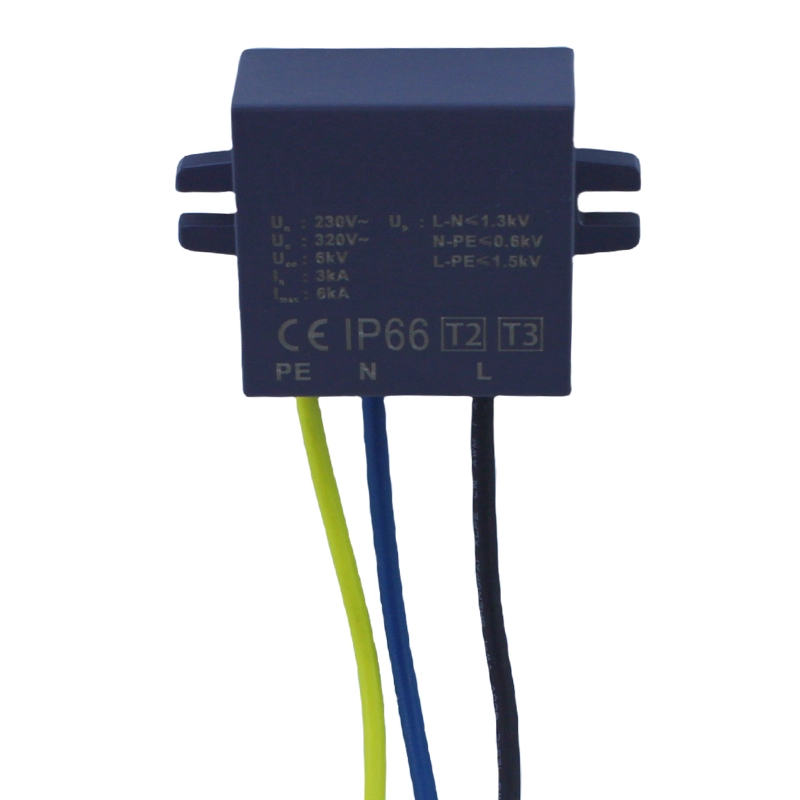

SPD03-DC320-P/G Type2+3
Designation: Type2+3
Classification: Class III
Protection mode: L-N , N-PE ,L-PE
Rated input voltage Un(L-N): 230VAC, 50/60Hz
Max. continuous operating voltage Uc (L-N): 320VAC, 50/60Hz
Max discharge current (8/20μs) Imax:6 kA
Nominal discharge current (8/20μs) In:3 kA
Voltage protective level Up: L-N ≤1.5 kV, N-PE ≤0.6 kV, L-PE ≤1.5 kV
Open circuit voltage Uoc: 6 kV
Backup fuse: 16A
Housing material: UL94V-0
Degree of protection: IP66
Surge Protective Devices for Photovoltaic (PV) Systems

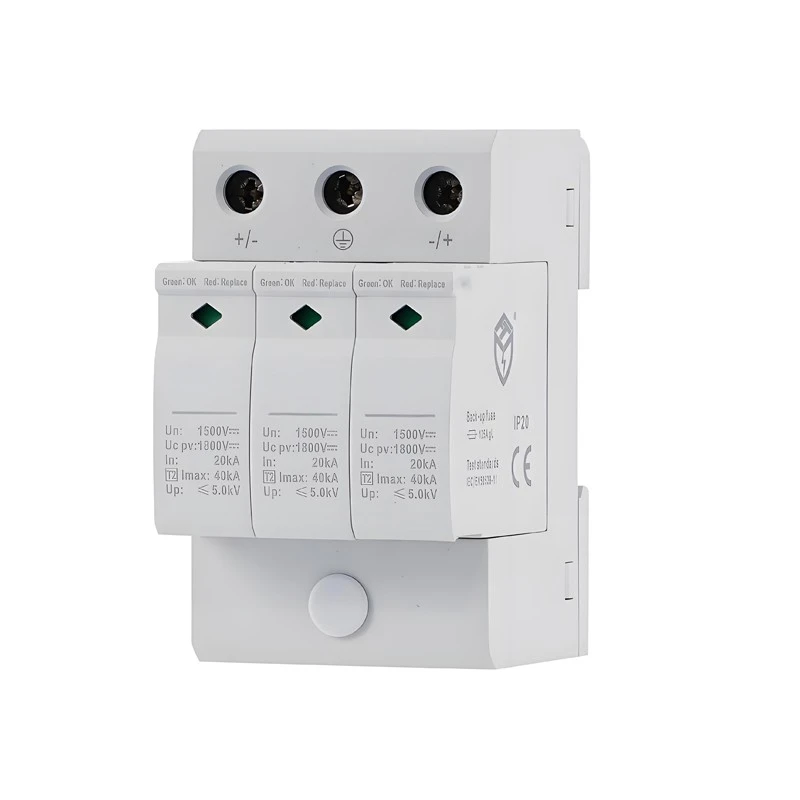

SPD20C/3-1500 PV S Class II
Designation: Type2
Classification: Class II
Protection mode: (+/-)–>PE , (-/+)–>PE , (+/-)–>(-/+)
Nominal Voltage Un: 1500 Vdc
Max. continuous operating voltage Uc (L-N): 180 Vdc
Short-circuit current rating Iscpv: 100 A
Continuous operating current Icpv: <20 µA
Rated load current: 80 A
Max discharge current (8/20μs) Imax:40 kA
Nominal discharge current (8/20μs) In:20 kA
Voltage protective level Up: ≤5.0 kV
Isolation resistance: ＞1000 MΩ
Housing material: UL94V-0
Degree of protection: IP20

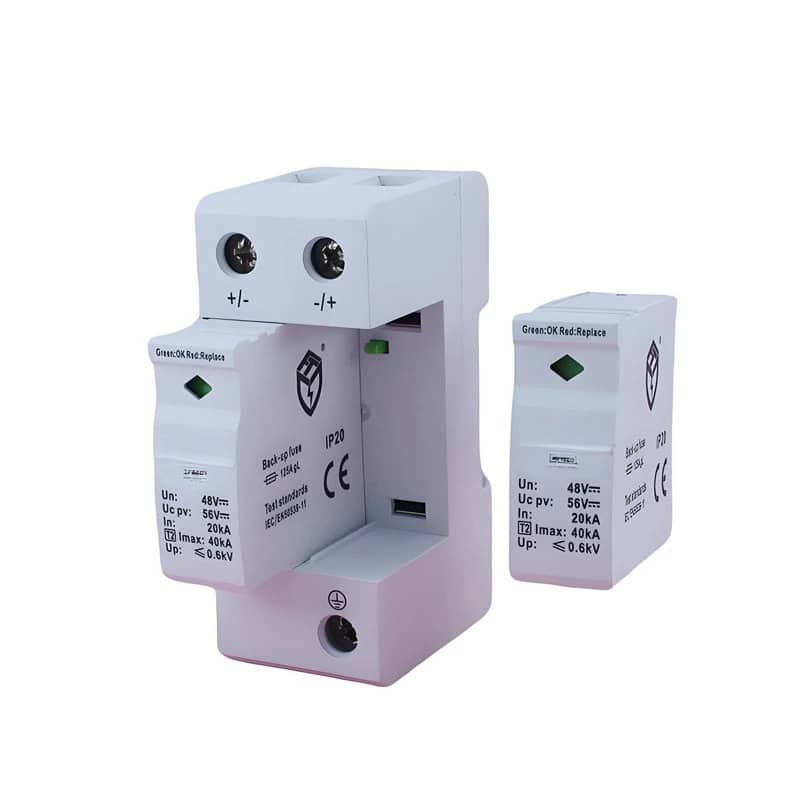

SPD20C/1-48PVS Class II
Designation: Type2
Classification: Class II
Protection mode: (+/-)-PE
Nominal Voltage Un: 48 Vdc
Max. continuous operating voltage Uc (L-N): 75 Vdc
Continuous operating current Icpv: <20 µA
Standby power consumption Pc: ≤25 mVA
Max discharge current (8/20μs) Imax:40 kA
Nominal discharge current (8/20μs) In:20 kA
Voltage protective level Up: ≤0.6 kV
Isolation resistance: ＞1000 MΩ
Housing material: UL94V-0
Degree of protection: IP20
SPD03-DC320-P/G Type2+3
Designation: Type2+3
Classification: Class III
Protection mode: L-N , N-PE ,L-PE
Rated input voltage Un(L-N): 230VAC, 50/60Hz
Max. continuous operating voltage Uc (L-N): 320VAC, 50/60Hz
Max discharge current (8/20μs) Imax:6 kA
Nominal discharge current (8/20μs) In:3 kA
Voltage protective level Up: L-N ≤1.5 kV, N-PE ≤0.6 kV, L-PE ≤1.5 kV
Open circuit voltage Uoc: 6 kV
Backup fuse: 16A
Housing material: UL94V-0
Degree of protection: IP66
Surge Protective Devices for Power Supply Systems

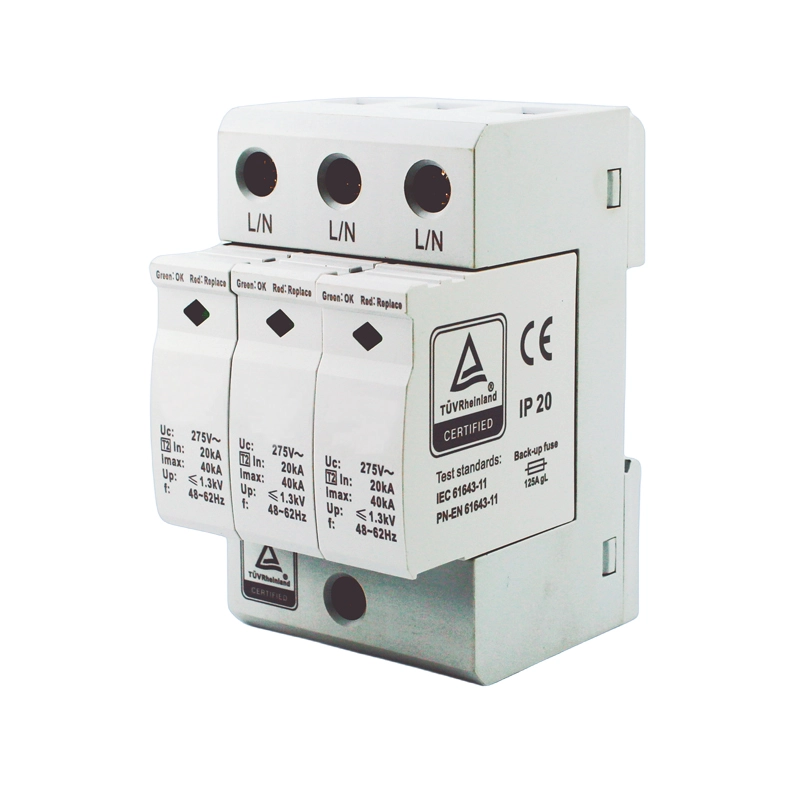

FDS20C/3-275 Class II
Designation: Type2
Classification: Class II
Protection mode: L1 , L2 , L3-PE
Nominal Voltage Un: 230/400 Vac/50(60)Hz
Max. continuous operating voltage Uc (L-N): 275 Vac/50(60)Hz
Short-circuit withstand capability: 20 kA
Continuous operating current Ic: <20 µA
Standby power consumption Pc: ≤25 mVA
Max discharge current (8/20μs) Imax: 40 kA
Nominal discharge current (8/20μs) In: 20 kA
Voltage protective level Up: ≤1.3 kV
Isolation resistance: ＞1000 MΩ
Housing material: UL94V-0
Degree of protection: IP20

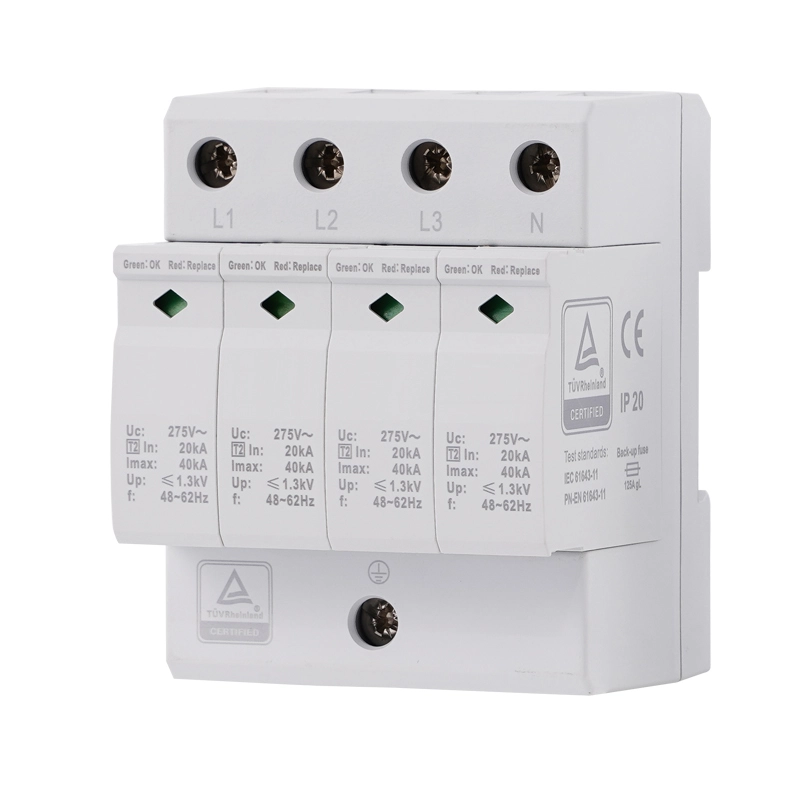

FDS20C/4-275 Class II
Designation: Type2
Classification: Class II
Protection mode: L→PE , N→PE
Nominal Voltage Un: 230 Vac/50(60)Hz
Max. continuous operating voltage Uc (L-N): 275 Vac/50(60)Hz
Short-circuit withstand capability: 20 kA
Continuous operating current Ic: <20 µA
Standby power consumption Pc: ≤25 mVA
Max discharge current (8/20μs) Imax: 40 kA
Nominal discharge current (8/20μs) In: 20 kA
Voltage protective level Up: ≤1.3 kV
Isolation resistance: ＞1000 MΩ
Housing material: UL94V-0
Degree of protection: IP20
FDS20C/4-275 Class II
Designation: Type2
Classification: Class II
Protection mode: L→PE , N→PE
Nominal Voltage Un: 230 Vac/50(60)Hz
Max. continuous operating voltage Uc (L-N): 275 Vac/50(60)Hz
Short-circuit withstand capability: 20 kA
Continuous operating current Ic: <20 µA
Standby power consumption Pc: ≤25 mVA
Max discharge current (8/20μs) Imax: 40 kA
Nominal discharge current (8/20μs) In: 20 kA
Voltage protective level Up: ≤1.3 kV
Isolation resistance: ＞1000 MΩ
Housing material: UL94V-0
Degree of protection: IP20

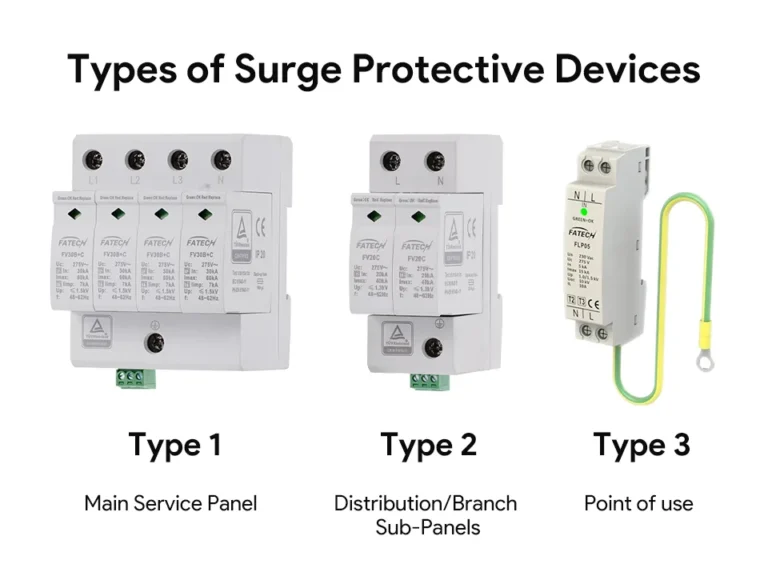

How Surge Protection Devices (SPDs) Work
Features:
- Compact and easy to install
- MOV + GDT hybrid protection
- AC/DC compatible (Type 2 + 3)
- Surge capacity up to 15 kA
- LED status indicator
- IEC 61643 / UL 1449 certified
Benefits:
- Protects LED drivers from surges
- Extends fixture lifespan
- Reduces maintenance costs
- Reliable for indoor & outdoor lighting
A Surge Protection Device (SPD) acts as a safety barrier that protects electrical and electronic systems from transient overvoltages caused by lightning strikes, switching surges, or unstable power grids. When a sudden voltage spike occurs, the SPD instantly redirects excess current to the ground through MOV (Metal Oxide Varistor), GDT (Gas Discharge Tube), or TVS diode components, preventing damage to sensitive circuits and critical equipment.
Application Scenarios:
- LED Lighting Systems: Protects LED drivers, luminaires, and outdoor façade lighting from surge-induced failure, ensuring longer operational life.
- Photovoltaic (PV) Systems: Safeguards DC strings, combiner boxes, and solar inverters, maintaining stable energy output and reducing maintenance costs.
- Industrial Power Networks: Stabilizes voltage across AC and 3-phase power distribution systems, minimizing downtime and equipment failure.
By integrating Type 2 and Type 3 surge protection devices, and using MOV + GDT hybrid SPD technology, these protectors provide:
- Fast response to voltage spikes
- Low residual voltage for safe AC/DC operation
- Long-term reliability for lighting, solar, and industrial infrastructure
For detailed guidelines on SPD selection and application, refer to the Electrical Engineering Portal or IEC 61643-11 standard documentation.
Project Solutions for Surge Protection Systems

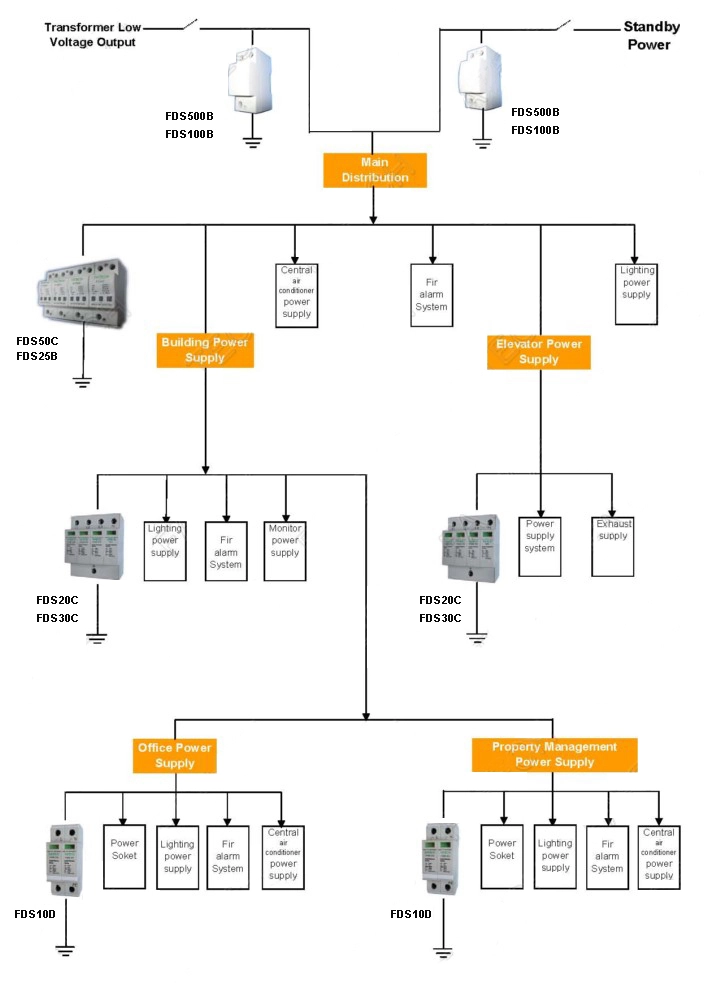

Power Supply System Surge Protection (Commercial & Residential Buildings)
Our Type 2 and Type 3 surge protective devices (SPDs) are designed to safeguard AC power supply systems in commercial buildings, residential properties, and industrial facilities.
Built with MOV + GDT hybrid technology, these surge protection devices comply with IEC 61643-11 and offer reliable defense against transient overvoltages, lightning surges, and grid switching disturbances.
Mounted on DIN rails or integrated into main switchboards, these AC surge arresters ensure stable operation, minimize downtime, and reduce maintenance costs for sensitive electrical equipment.
Photovoltaic (PV) System Surge Protection
Our DC surge protective devices are engineered for solar photovoltaic (PV) systems, including inverters, combiner boxes, and rooftop or ground-mounted modules.
Designed for voltages up to 1500 V DC, these SPD solutions provide rapid response (≤ 25 ns), low residual voltage, and high discharge capacity.
They effectively protect solar panels and power electronics from lightning strikes, transient surges, and grid disturbances, ensuring long-term reliability and efficiency in renewable energy installations.

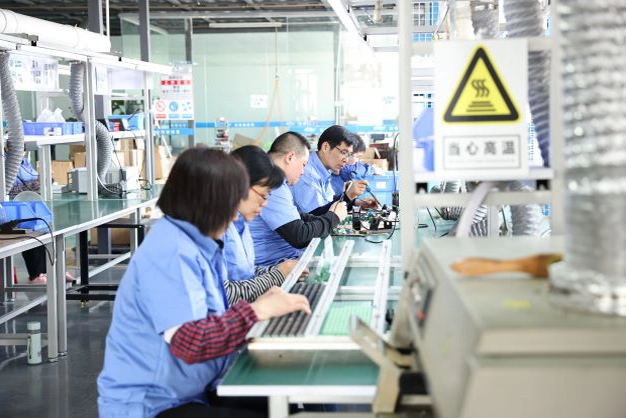

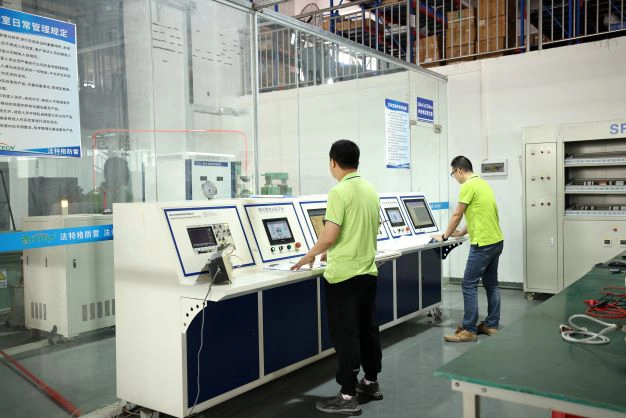

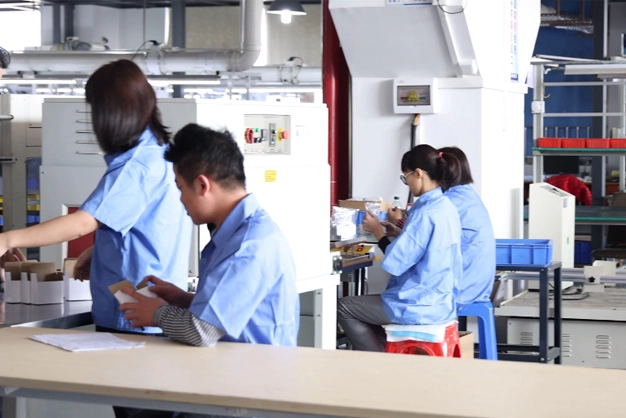

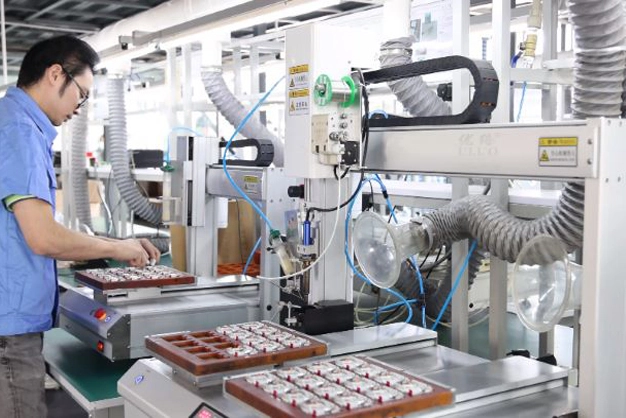

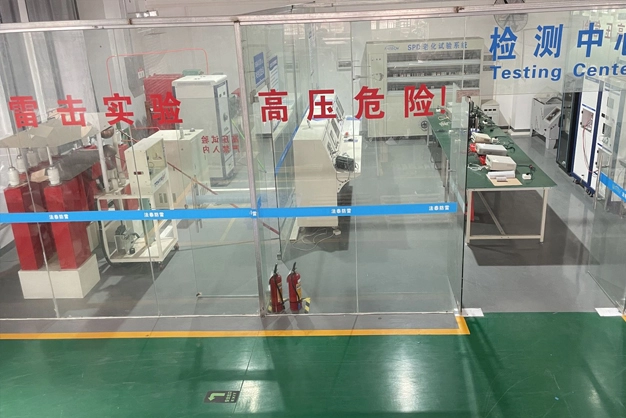

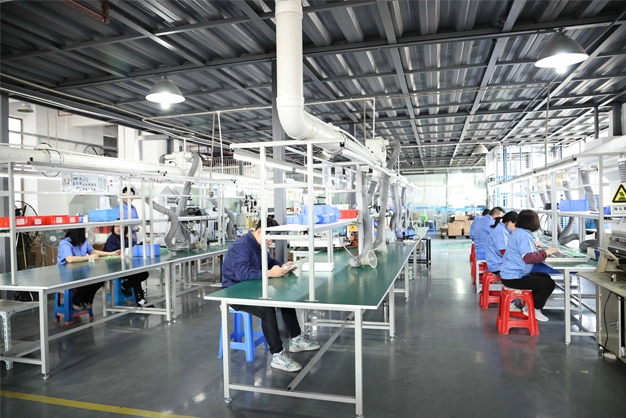

SPD Manufacturing Process & Quality Control
