Mirror LED Lighting Manufacturer
- China mirror LED strips and linear LED mirror lights manufacturer
- Multiple customizable options are available, such as wattage, 80/90 CRI, dimming, etc.
- Available in IP20 (indoor) and IP65 (waterproof) versions
- Supports surface mounting, wall-mounted, and suspended installation methods
- Suitable for bathroom mirrors, smart mirrors, and commercial applications, etc.
Linear LED Mirror Lights
Our linear LED mirror lights are purpose-built for mirror manufacturers, hotel renovation contractors, and smart vanity system integrators. Designed to deliver uniform vertical illumination with minimal glare, these rigid fixtures integrate cleanly into side frames, aluminum channels, or recessed cavities.

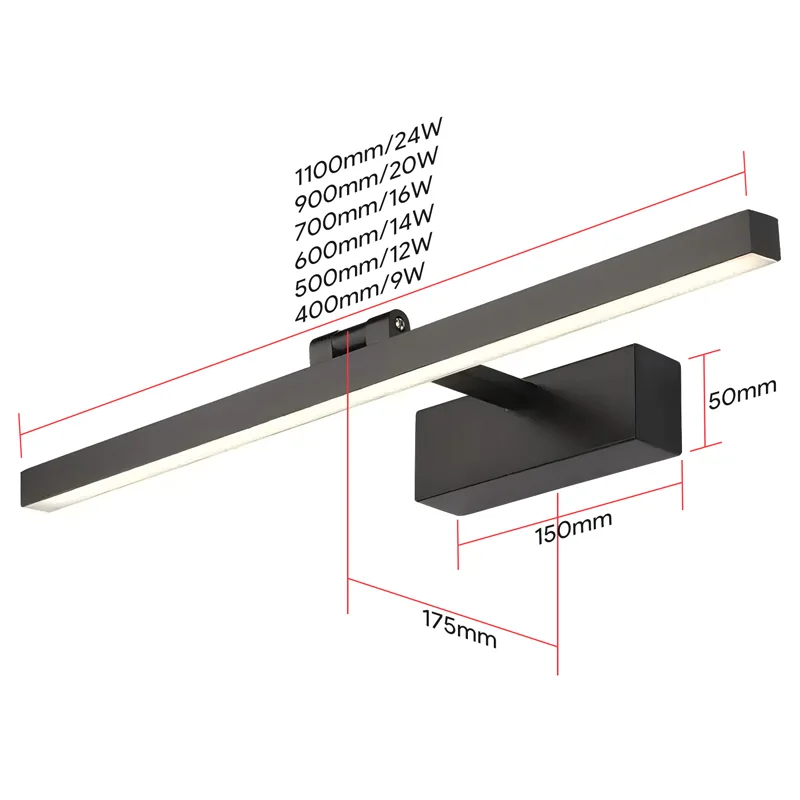

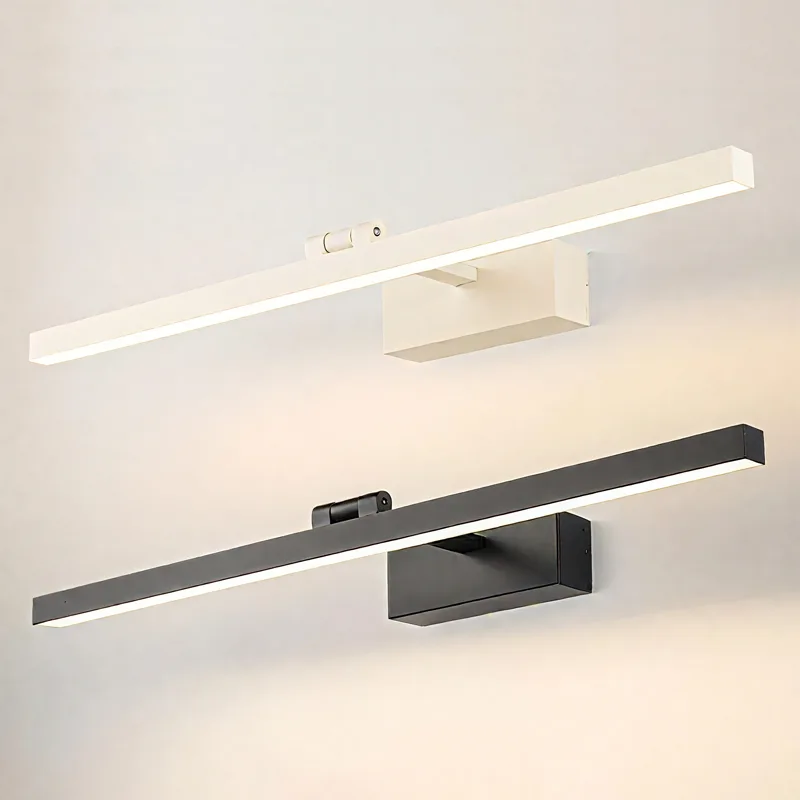

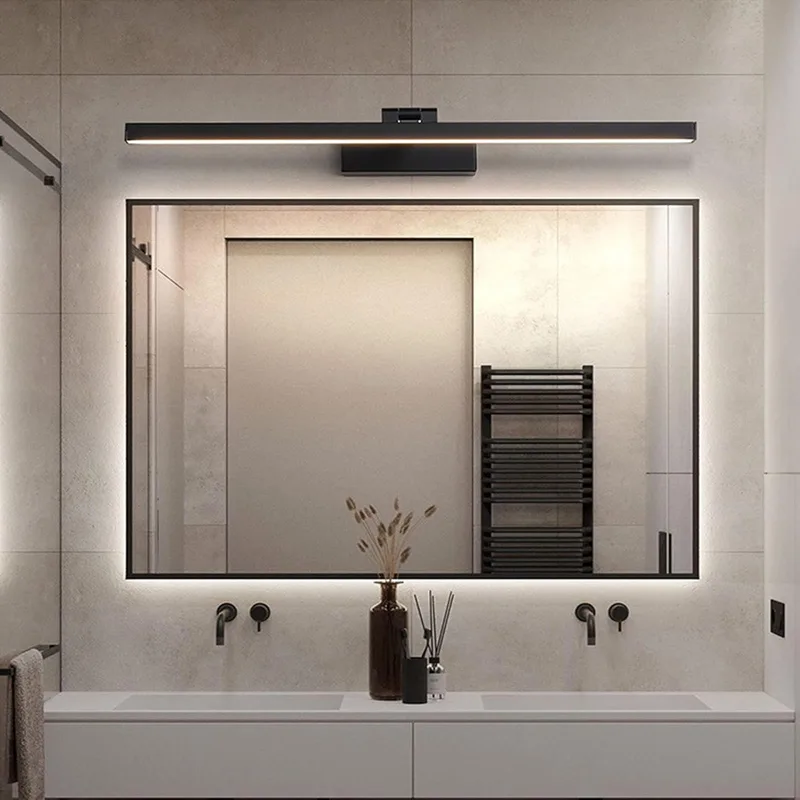

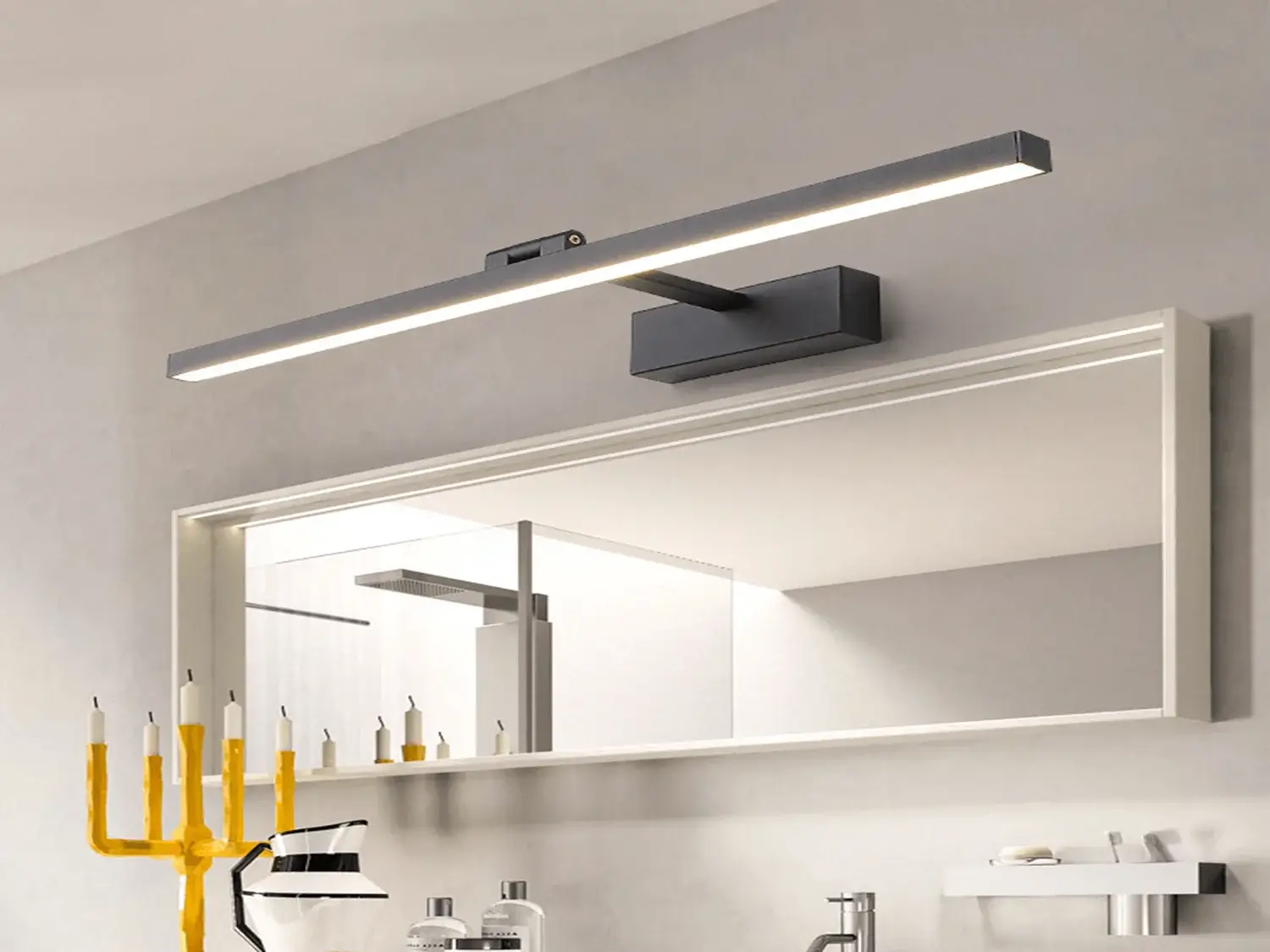

Angle Adjustable Linear LED Mirror Light
Model No.: LQX400TF-A/LQX500TF-A/LQX600TF-A/LQX700TF-A/LQX900TF-A/LQX1100TF-A
Length: 400mm/500mm/600mm/700mm/900mm/1100mm
Material: Aluminum body, Acrylic shade
Body Color: Black/White
Rotatable Angle: 180°
Installation: Wall-mounted/Hardwired
Input Voltage: 100-240VAC
Power: 9W/12W/14W/16W/20W/24W
LED Driver: Built-in
LED Type: SMD2835
Color Temperature: 2700K – 6500K
SDCM: <6
CRI: 80/90
Beam Angle: 120°
IP Rating: IP54
Dimming Option: Non-dim/0-10V/DALI

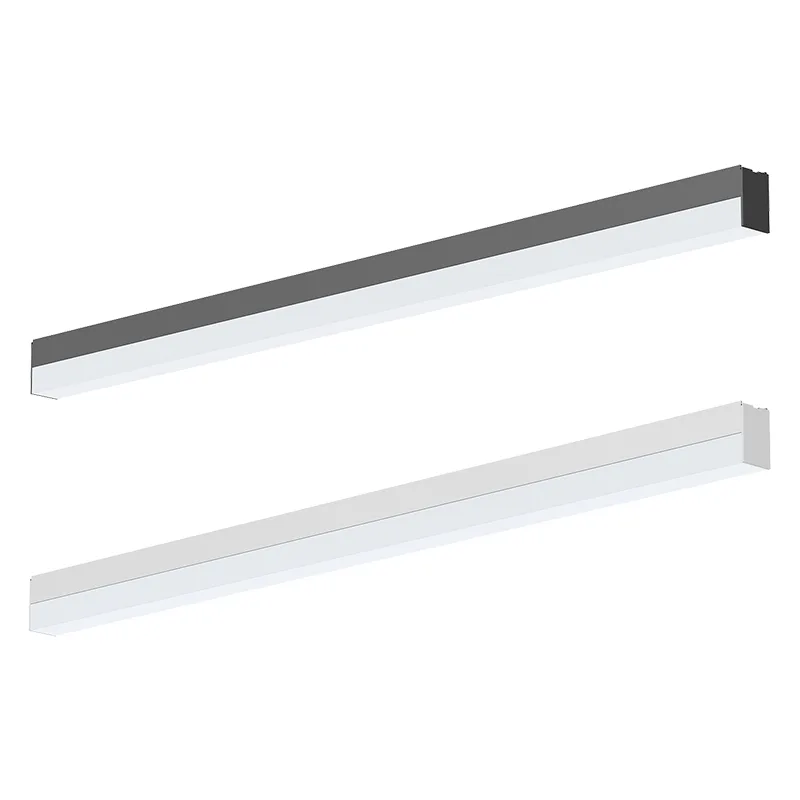

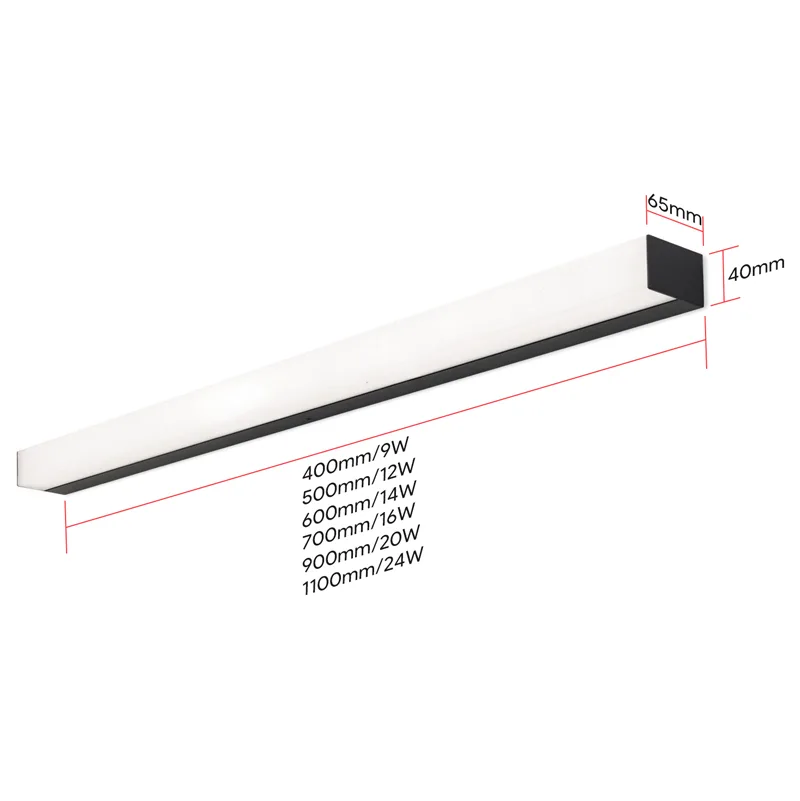

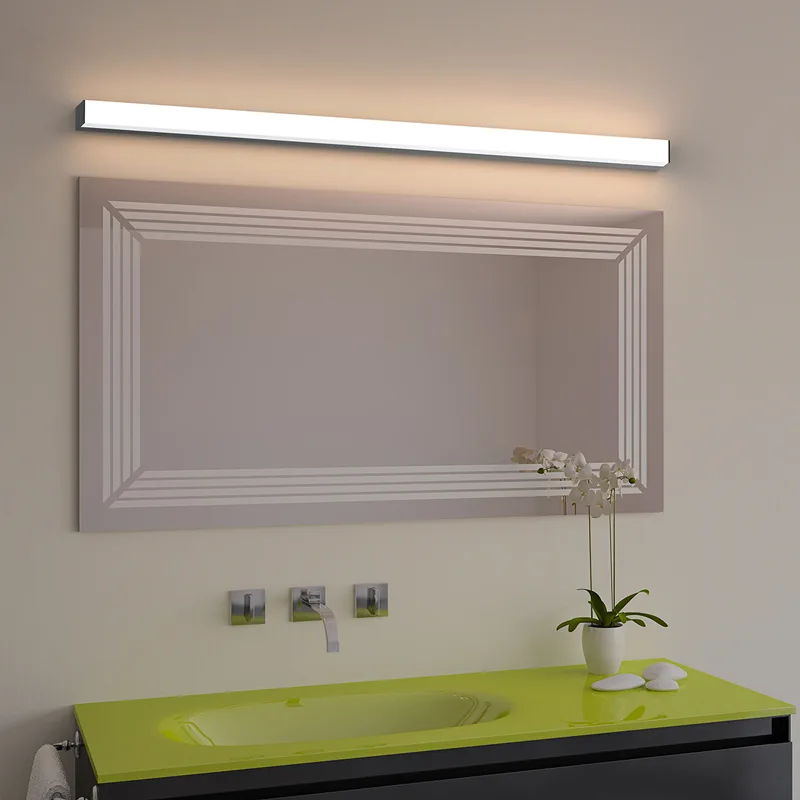

LED Linear Light for Mirror
Model No.: LQX400TF-B/LQX500TF-B/LQX600TF-B/LQX700TF-B/LQX900TF-B/LQX1100TF-B
Length: 400mm/500mm/600mm/700mm/900mm/1100mm
Material: Aluminum body, Acrylic shade
Body Color: Black/White
Installation: Surface mount/Pendant/Wall mount
Input Voltage: 100-240VAC
Power: 9W/12W/14W/16W/20W/24W
LED Driver: Built-in
LED Type: SMD2835
Color Temperature: 2700K – 6500K
SDCM: <6
CRI: 80/90
Beam Angle: 120°
IP Rating: IP54
Dimming Option: Non-dim/0-10V/DALI
Key Features
The LED linear mirror light with UGR<19 glare control, CRI>90 color fidelity, and a low-profile aluminum body, they’re ideal for makeup mirrors, hospitality mirrors, and premium smart bathroom setups.
Available in custom lengths (300mm–1200mm) and multiple beam angles, they ensure optimal facial illumination without casting shadows or hot spots—especially critical in commercial grooming spaces and high-end homes.
Low UGR Glare-Free Output
With UGR<19 optics, ideal for facial lighting in makeup or hotel mirrors
High Color Accuracy
CRI≥90/80 for true-to-skin rendering in grooming applications
Multiple CCT Options
To suit different design aesthetics
0-10V/DALI Dimming Supported
Ensuring compatibility with smart control systems
Completely Customizable
Customizable to meet various project requirements

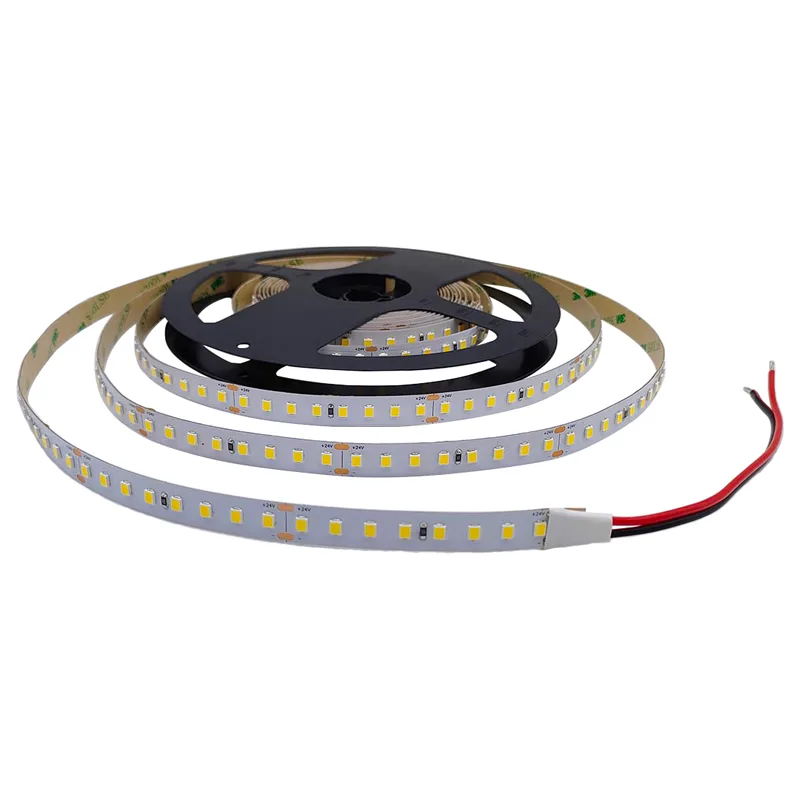

LED Strip Light for Mirror
Designed for mass production, fast installation, and long-term reliability, our mirror LED strip lights are trusted by mirror manufacturers and interior contractors across the globe. The ultra-slim, cuttable design fits easily behind framed or frameless mirrors, enabling even halo backlighting without visible hotspots or shadowing.

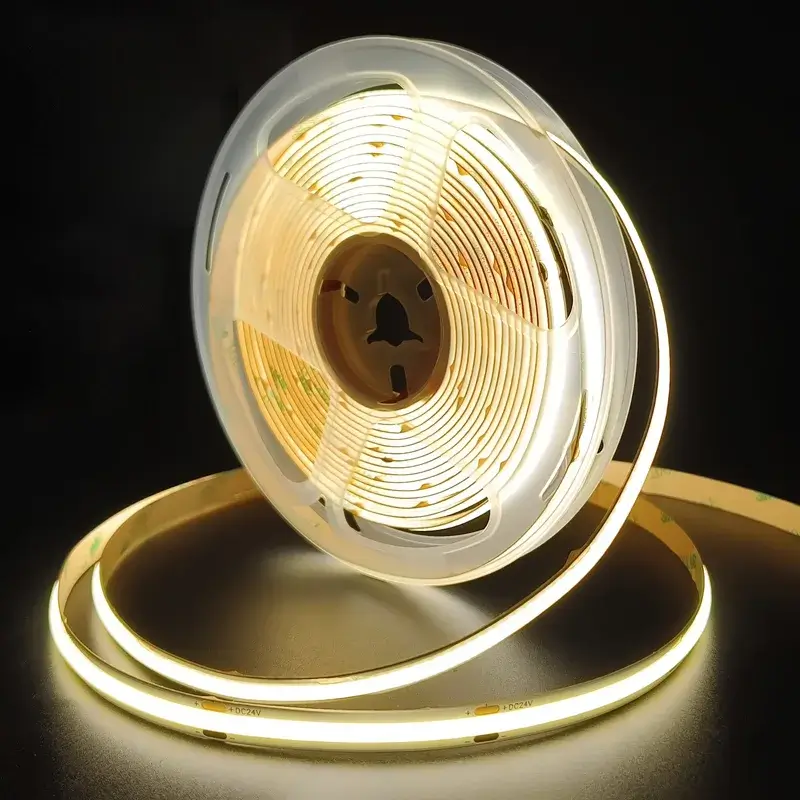

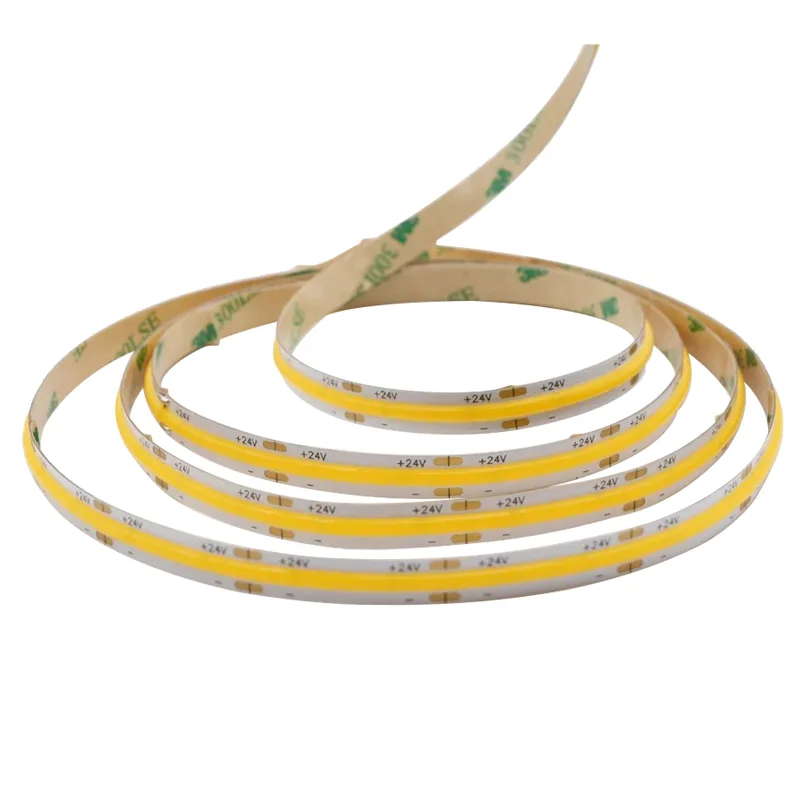

DC12V/24V COB Mirror LED Strip from China
Main Model: FYX08T480A/FYX08T480C
LED Chip QTY per Meter: 480
CRI: >90
PCB Width: 8mm
Color Temperature: 2700K – 6500K
Input Voltage: DC12V/DC24V
Power per Meter: 11W
Efficiency: 100lm/w – 105lm/w
Beam Angle: 180°
Cut Section: 25mm@12V, 50mm@24V
IP Rating: IP20/IP54/IP65/IP67/IP68
Warranty: 3 years

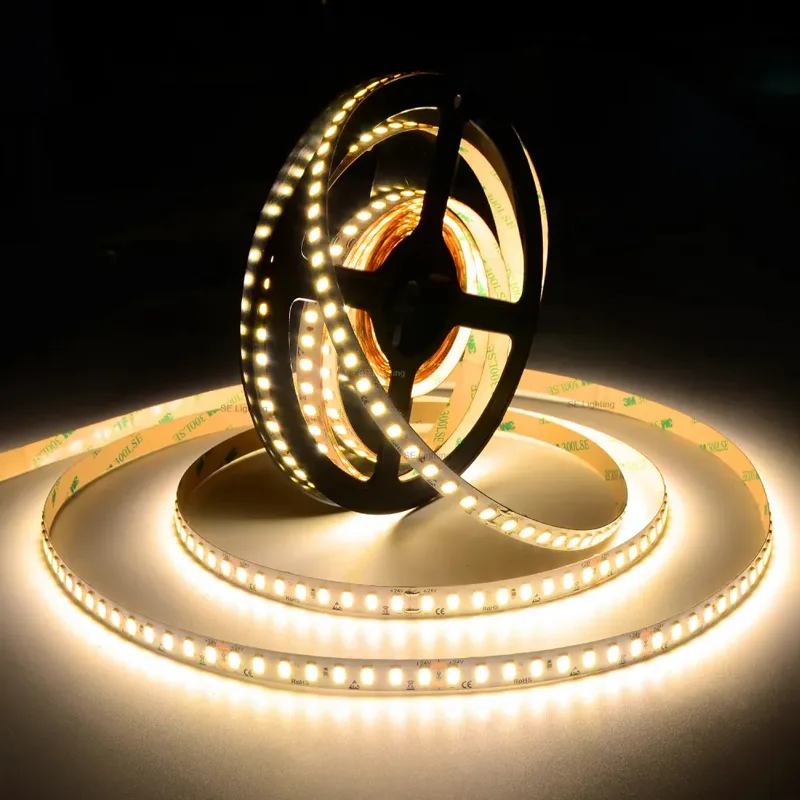

High Efficiency SMD2835 LED Strip for Mirror
Main Model: FQX10T128C
LED Chip QTY per Meter: 128
CRI: >80
PCB Width: 10mm
Color Temperature: 2700K – 6500K
Input Voltage: DC24V
Power per Meter: 12W
Efficiency: 190-200lm/w
Beam Angle: 120°
Cut Section: 62.5mm
IP Rating: IP20/IP54/IP65/IP67/IP68
Warranty: 5 years

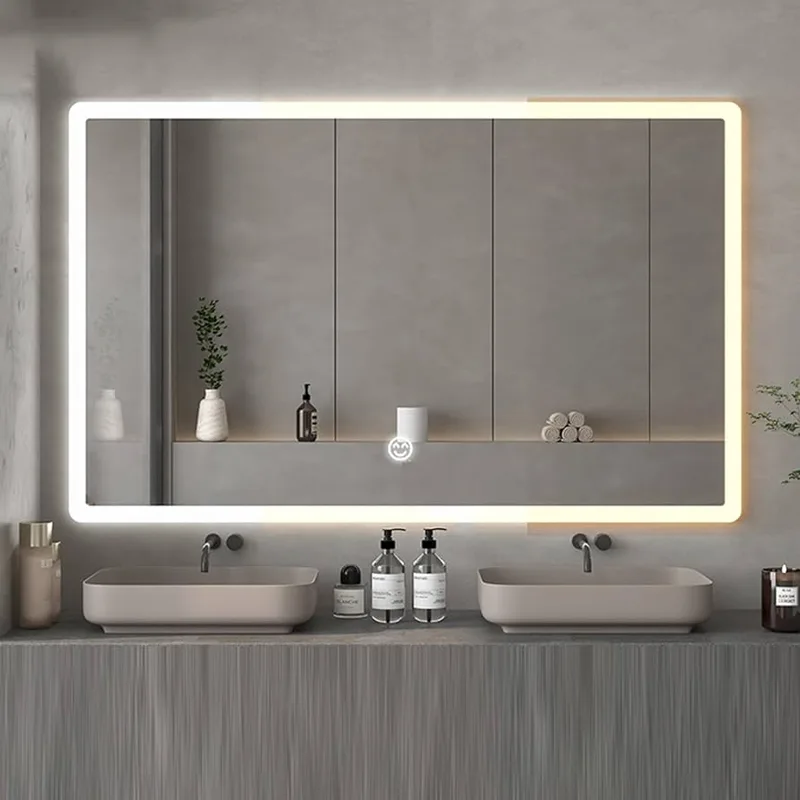

Tunable White COB LED Mirror Strip
Main Model: FYT10T640A/FYT10T640C
LED Chip QTY per Meter: 640
CRI: >90
PCB Width: 10mm
Color Temperature: 2700K – 6500K changeable
Input Voltage: DC12V/24V
Power per Meter: 16W
Efficiency: 90-100lm/w
Beam Angle: 180°
Cut Section: 25mm/50mm
IP Rating: IP20/IP54/IP65/IP67/IP68
Warranty: 5 years

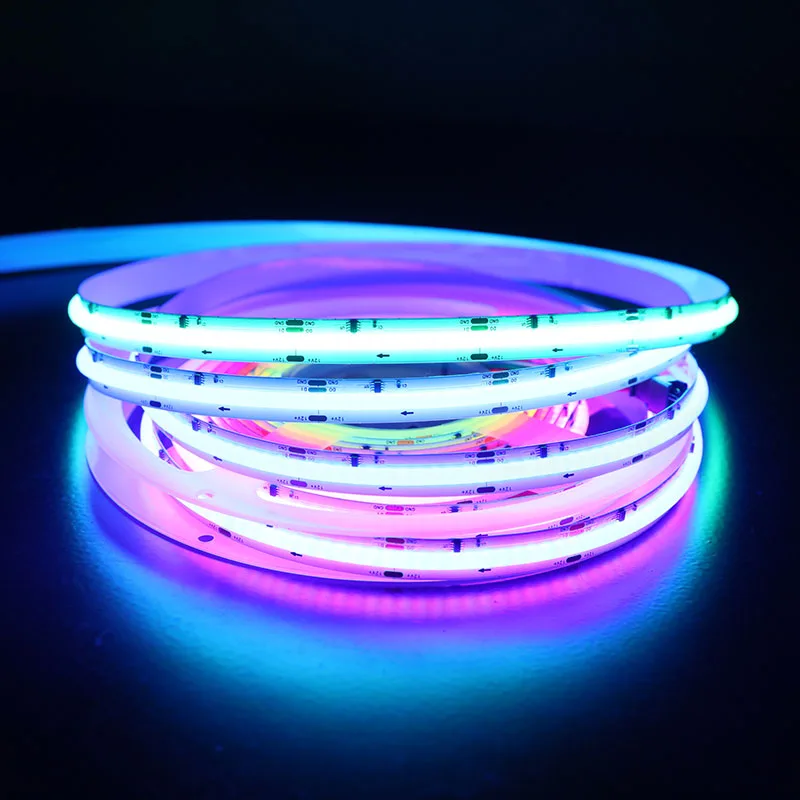

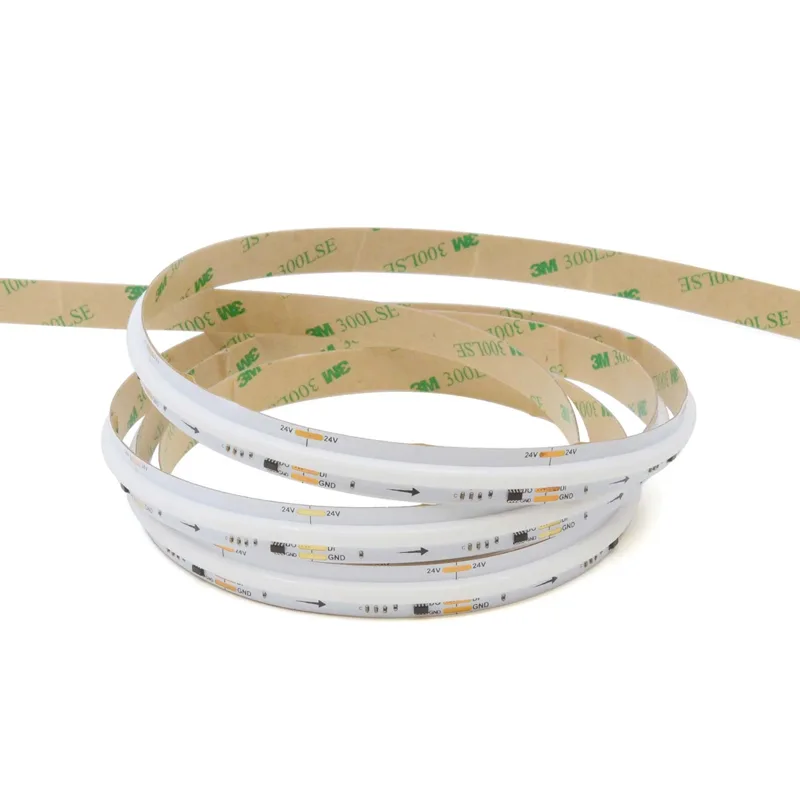

WS2811 RGB COB LED Mirror Front Light Strip
Main Model: FYA10T576A
LED Chip QTY per Meter: 576
IC Type: WS2811
PCB Width: 10mm
Color Temperature: RGB
Input Voltage: DC12V
Power per Meter: 8W
Pixels QTY: 16 pixels/m
Beam Angle: 180°
Cut Section: 62.5mm
IP Rating: IP20/IP54/IP65/IP67/IP68
Warranty: 3 years
Key Features
Whether you’re producing illuminated bathroom mirrors or retrofitting commercial vanity projects, this flexible lighting system ensures uniform color, high CRI, and easy integration with aluminum channels or adhesive mounting.
With tight SDCM binning and customizable PCB widths, it’s built to support large-scale OEM production—without sacrificing lighting quality.
Uniform Lighting Without Spots
Ideal for frameless or frosted-glass mirrors
High CRI & Low SDCM
Ensure accurate skin tones and color consistency
Provide Precise Cut Points
To match mirror sizes without excess waste
Multiple CCT Options
To suit different design aesthetics
Completely Customizable
IP ratings, PCB widths, and more customization options
Related Accessories
Our LED mirror strip lights support optional aluminum profiles with frosted covers, designed to diffuse light evenly and reduce glare, while also aiding passive heat dissipation.
For enhanced usability, dimmable drivers are available, RF remote controllers, wall dimmers, and more, making the lighting system more flexible and intuitive.
Weight:0.232KG
Thickness: 0.8mm
PC color: Milk white
Size: L1000*W40*H22mm
End caps/Clips: 1pair/m
Aluminiu color: Silver/Black
TS4022A
$2.36-2.56/m
Three side light aluminium profile
Weight:0.267KG
Thickness: 0.8mm
PC color: Milk white
Size: L1000*W50*H22mm
End caps/Clips: 1pair/m
Aluminiu color: Silver/Black
TS5022A
$2.81-3.05/m
Three side light aluminium profile
Weight:0.466KG
Thickness: 0.8mm
PC color: Milk white
Size: L1000*W60*H36mm
End caps/Clips: 1pair/m
Aluminiu color: Silver/Black
TS6036A
$4.29-4.65/m
Three side light aluminium profile
Model: LPV-20/LPV-35/LPV-60/LPV-100
Input Voltage: AC100-240V
Output Voltage: DC12V/24V
Output Current: 0.84A-8.5A
Power: 20W-100W
Efficicency: 83%-87%
PF: >0.8
IP Rating: IP67
Certification: UL, CE, ROHS
Warranty: 2 years
Mean Well LPV Series Power Supply
$6.1-15.5/pcs
IP67 constant voltage LED power supply
Model: SP602E
Input Voltage: DC5-24V
Type: Remote Control and Bluetooth APP Control
Controllable Pixels: Max. 2400 pixels (600 pixels/port * 4)
Output Port: 4 pcs
Application: WS2812B, WS2811, etc Digital LED Strip
Output Signal: SPI (TTL) Digital Signal
App Support: IOS 10.0/Android 4.4 or higher
Working Temperature:-20℃~60℃
SP602E
$16.99/pcs
SPI LED strip digital controller
Model: CTL-S-PC-TMB05
Control constant voltage single color LED strip lights
Dimming, delay off
Controller Supply Voltage: DC12-24V
Output Current: 4A*3CH(V-/V-/V-/V+)
Dimension: L86×W86×H36mm
CTL-S-PC-TMB05
$7.85/pcs
Wall mounted dimming touch panel
Unique 3-Sided LED Bathroom Mirror Light Assembly Guide
Read Related Blogs to Learn More

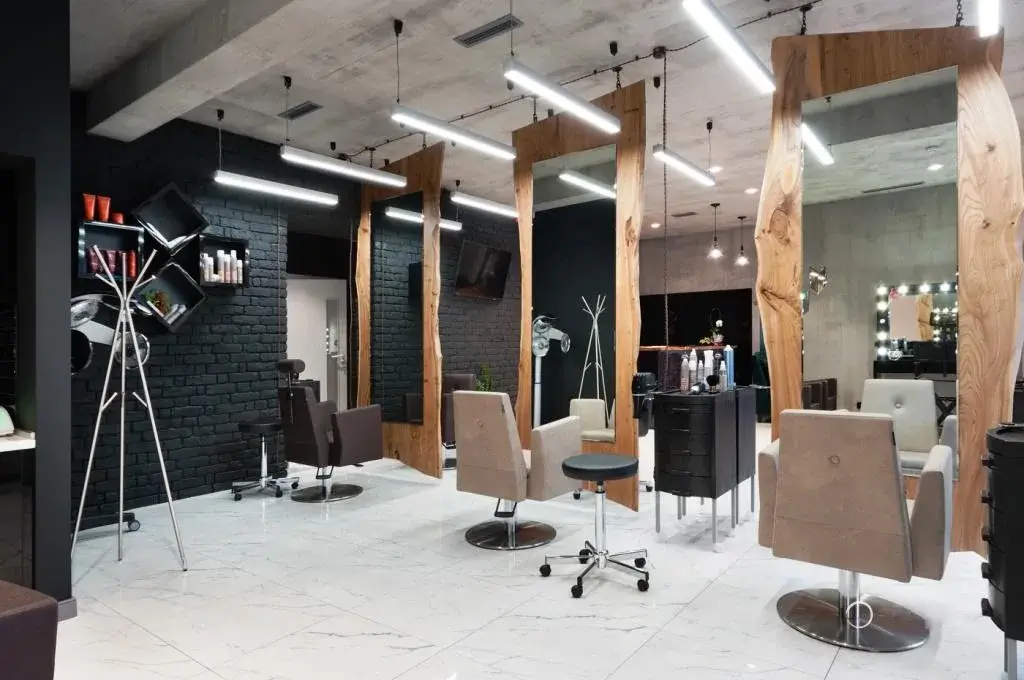

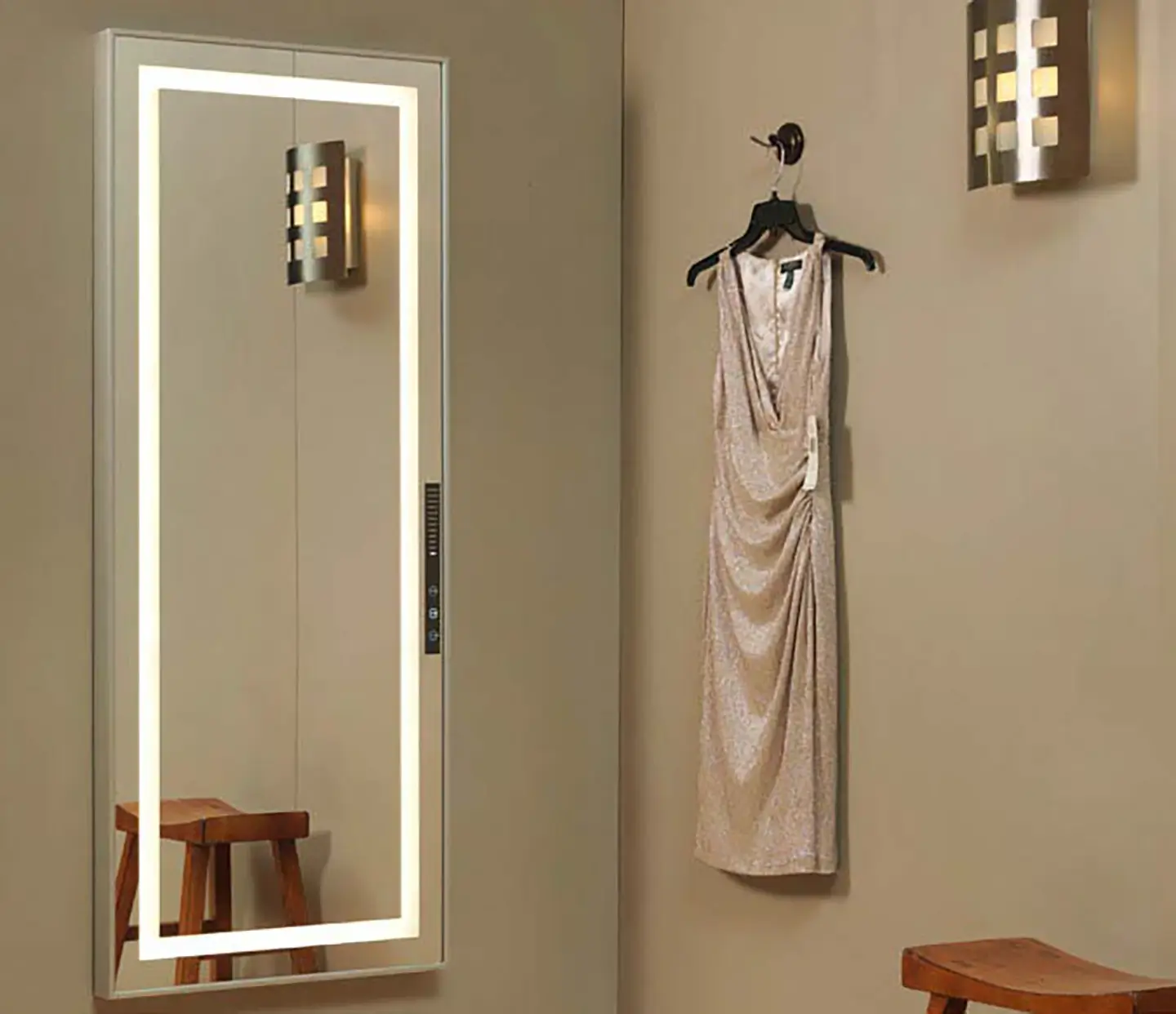

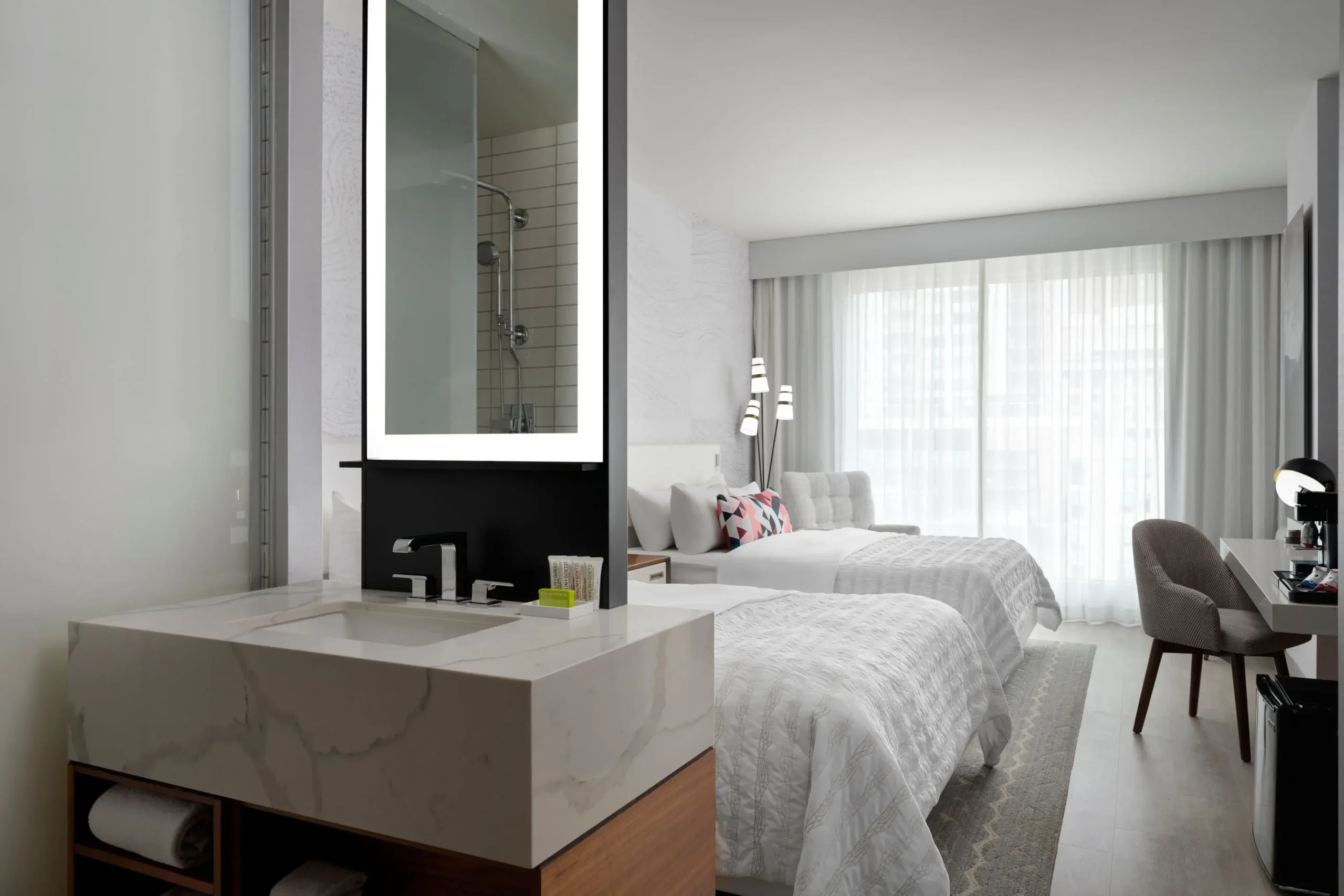

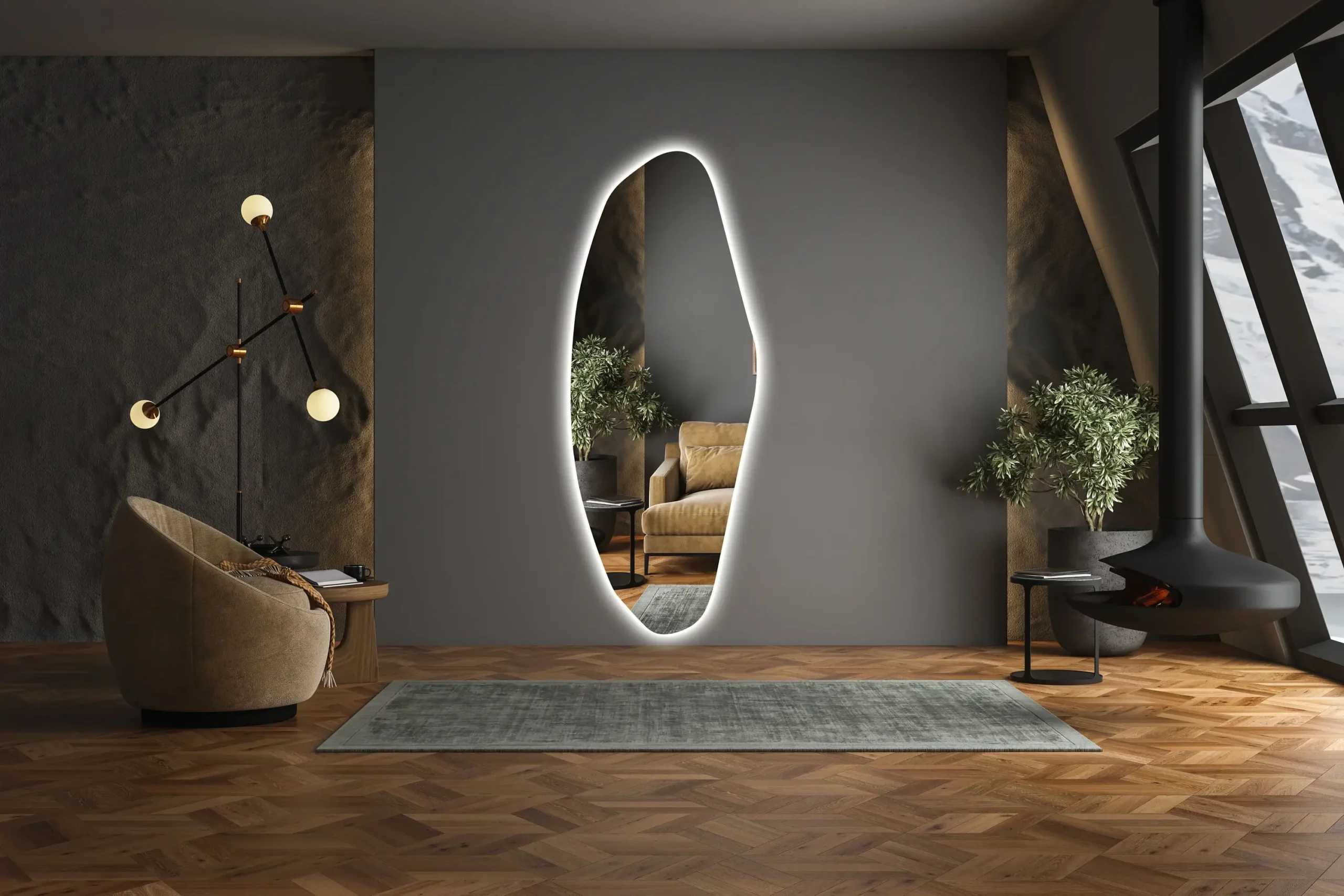

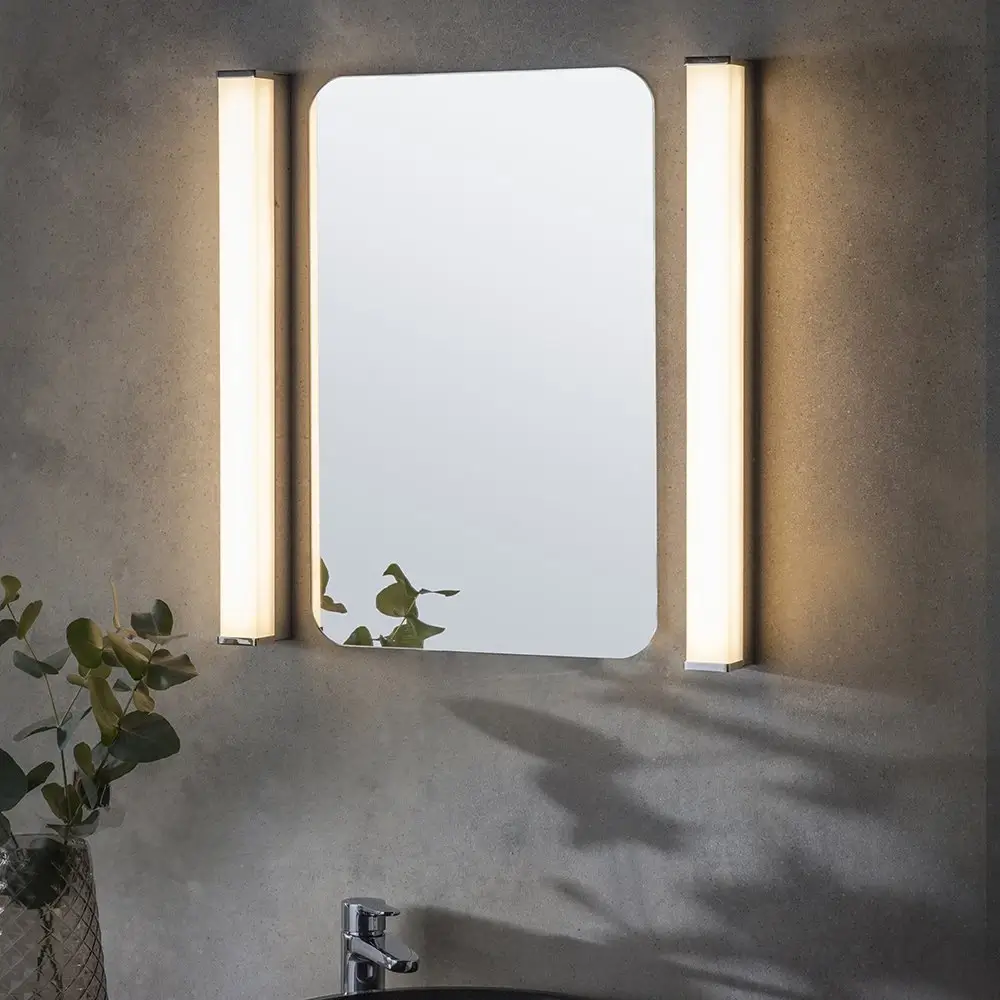

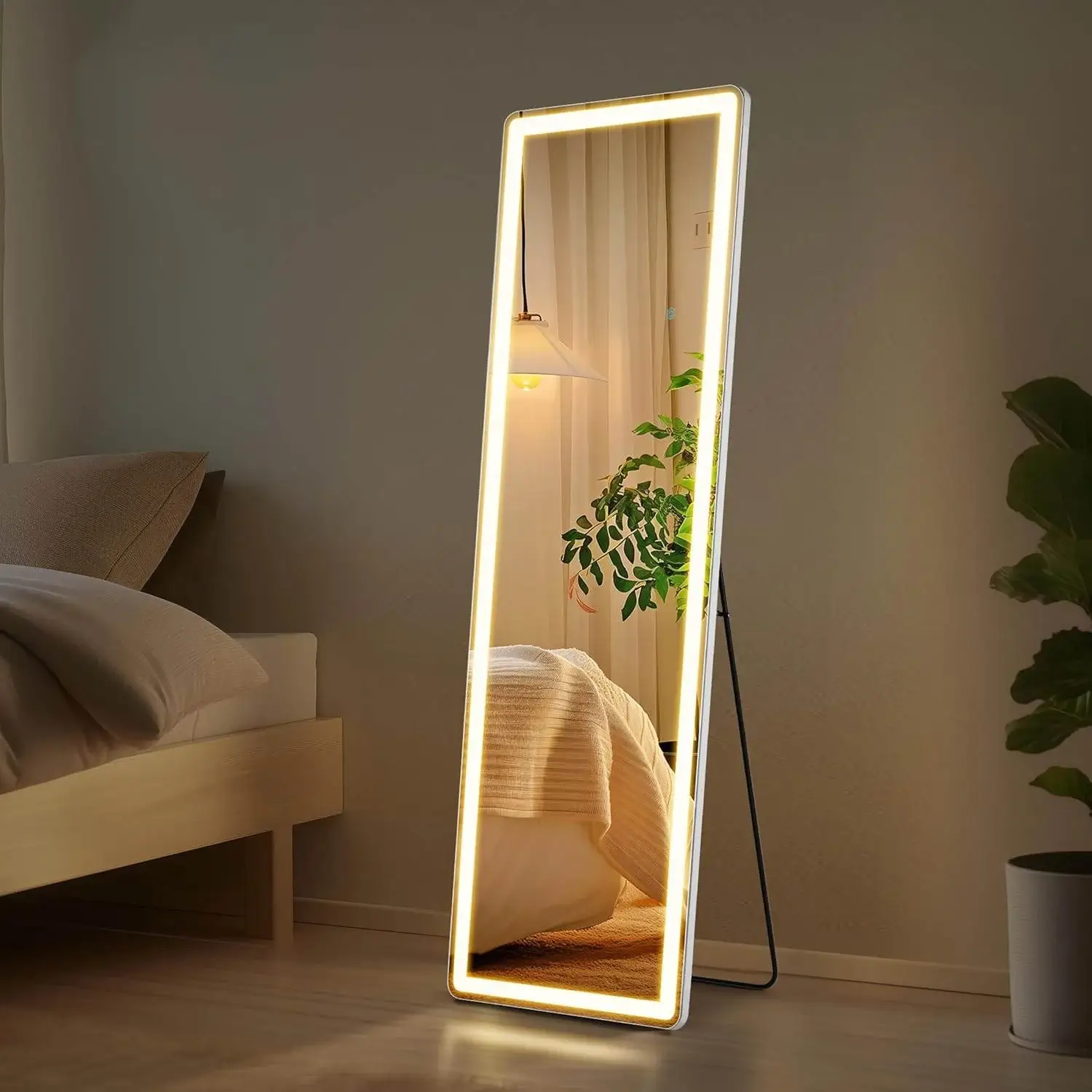

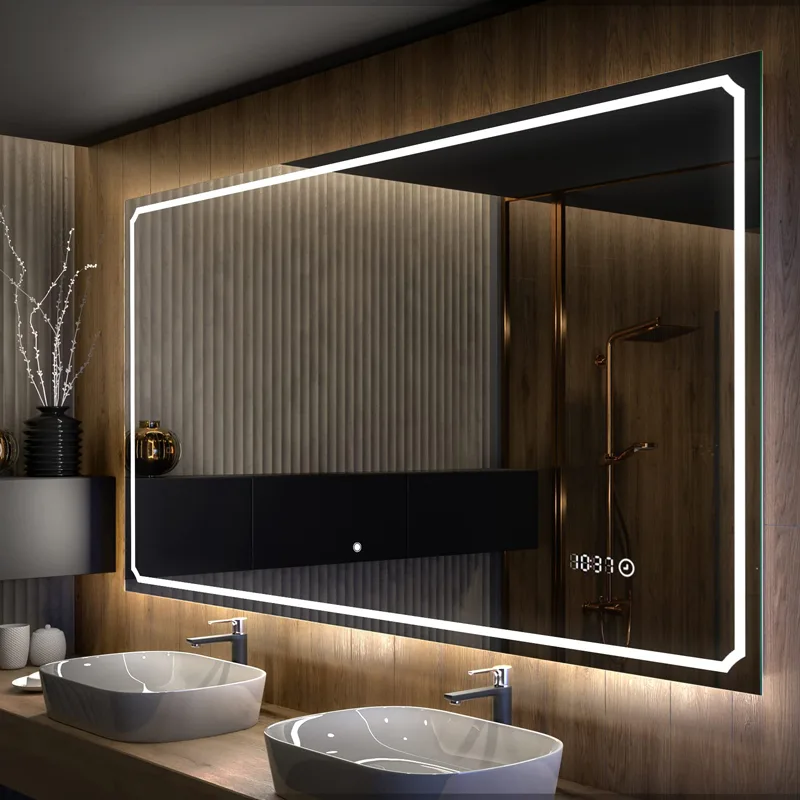

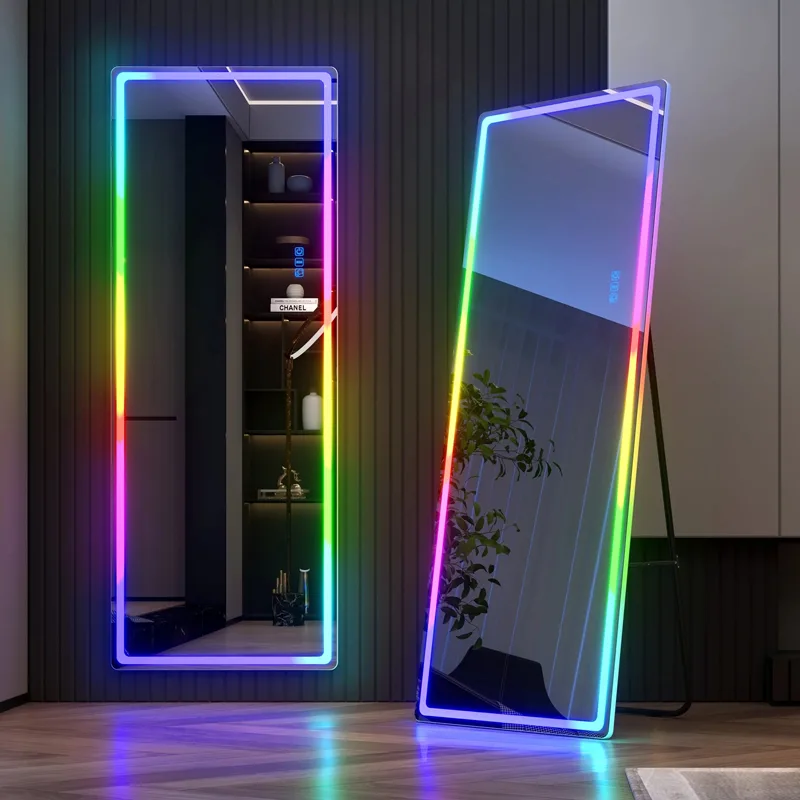

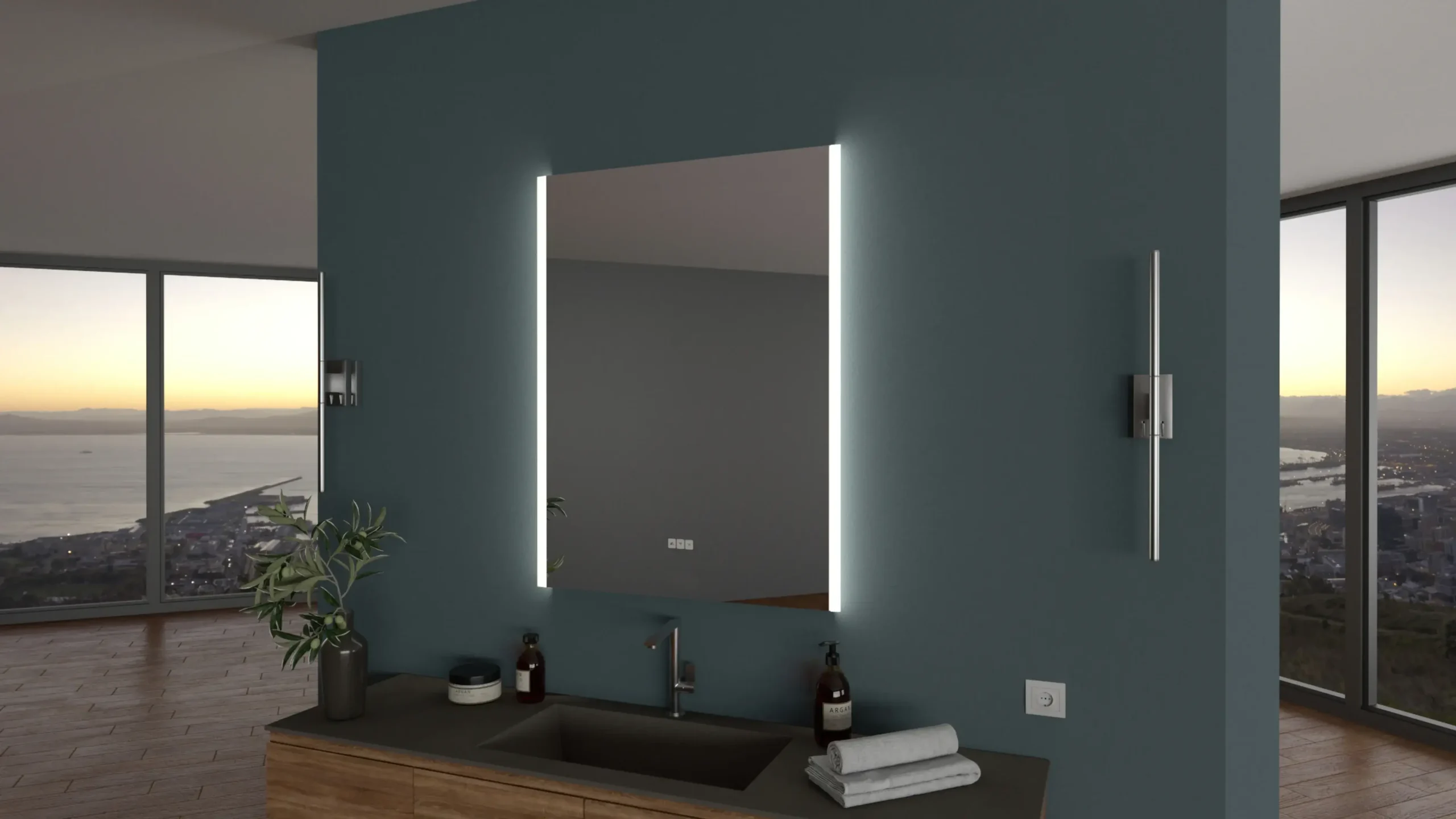

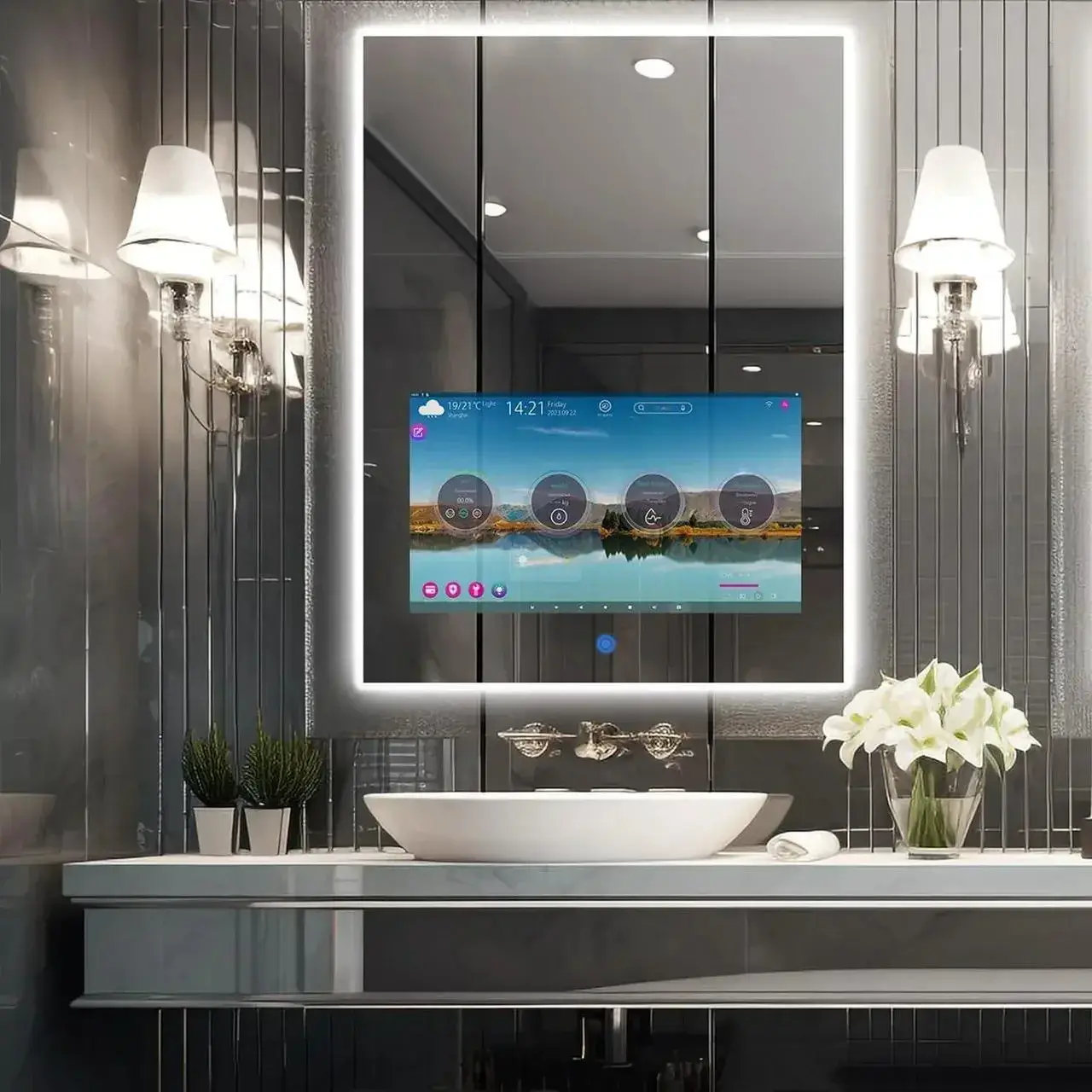

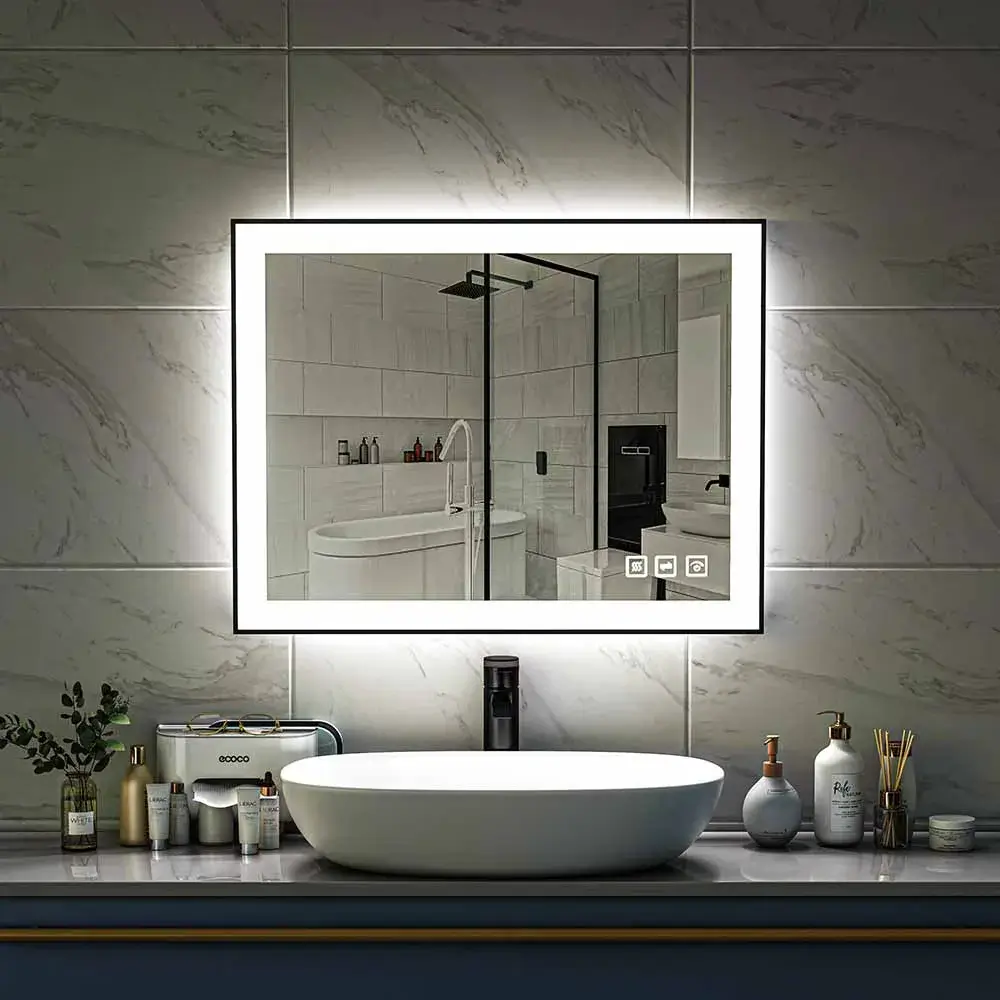

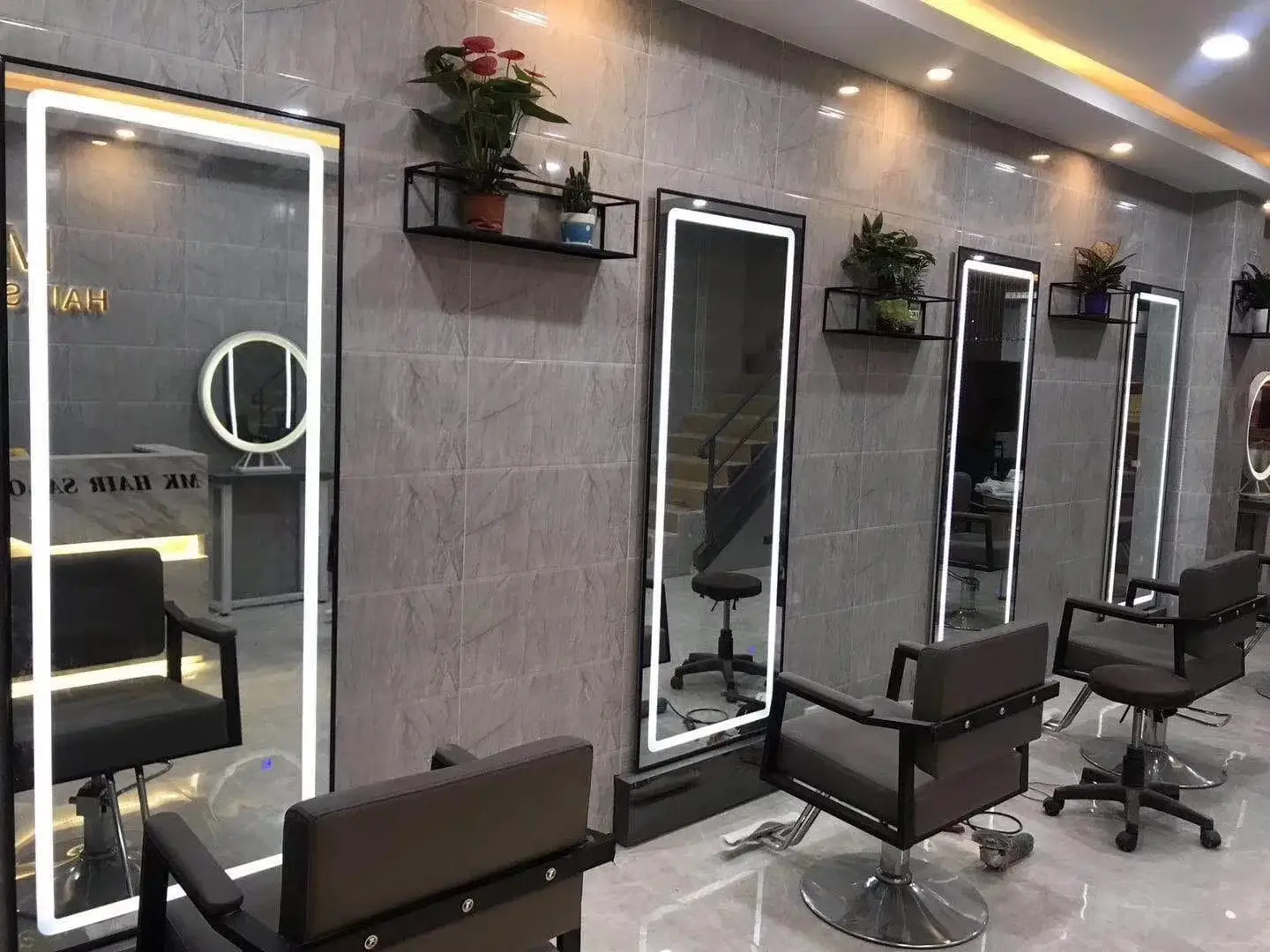

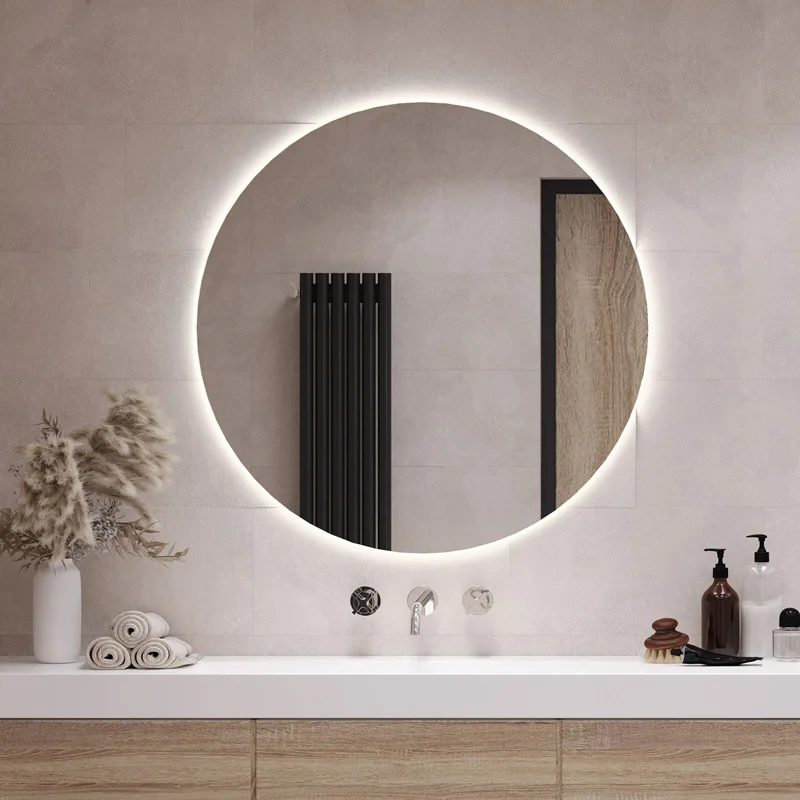

Mirror LED Lighting Application Gallery
LED mirror strip lights and linear LED mirror lights are widely used in both residential and commercial environments where functional and decorative mirror illumination is required.
China Mirror LED Strip Light Manufacturer
We have developed a complete set of production quality control systems, from raw materials to SMT, and even the subsequent assembly, testing, packaging, and shipment of each link are the implementation of strict quality control processes to ensure that our mirror LED strip can be perfectly delivered to customers.
SMT Process
Use high speed automated SMT machine to paste LED chips, IC chips, resistors to make sure all components are in the right place.
Automated Dispensing
Use multi-nozzle automated dispensing equipment to evenly coat the formulated phosphor on the COB tape light.
100% QC Inspection
After reflow soldering and high-temperature ovens, the COB strip needs to be tested again at 100% to ensure no defective LEDs.
Bending Test
The purpose of the bend test is to test whether the strip light can withstand a certain amount of bending without affecting its performance or life.
Twist Test
The LED strip twist test is mainly used to test the bending resistance and life span of LED strip lights by simulating the deformation of light strips in long-term use.
Aging Test
Aging for 8 hours, ensure each LED runs in good condition. And for the COB LED strip, there will be a slap test to check the stability.
Pasted With 3M Tape
All LED strips pasted with 3M adhesive tape and rolled reels to ensure easy transportation and installation.
Final Product Test
Our quality inspectors conduct a final inspection of each roll of LED strip to ensure the consistency of the light color and the good appearance of the strip.
Packaging
Finally, the labels are pasted on the reels and anti-static aluminum foil bags, and the COB strip lights are ready to be boxed and shipped.

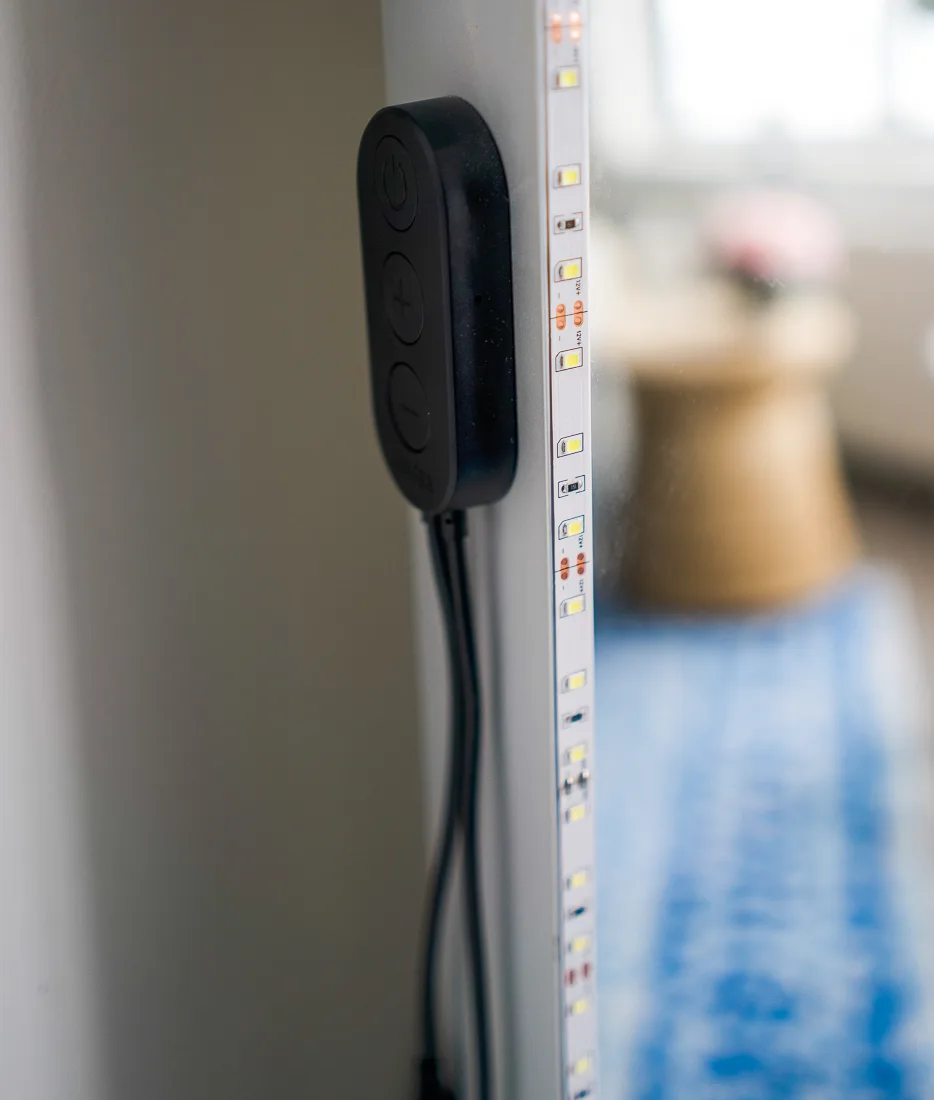

Easy to Customize Mirror LED Strips
As the top LED strip manufacture in China, SignliteLED provides innovative lighting solutions to meet all your mirror lighting needs, whether residential, commercial, or industrial.
Here are the things that can be customized:
1. Number of LEDs
2. PCB color and shape
3. Color can be white, R, G, B, RGB, and RGBW.
4. Waterproof function
5. 3M tape
6. Logo on PCB and package
You just need to share your ideas or designs with us and leave the rest to us; we will give you a surprise!
LED Mirror Lighting Buying Guide
Selecting the appropriate LED lighting solution for mirrors is critical for both aesthetics and performance. Whether designing a bathroom vanity, hotel mirror, or smart mirror system, this guide will help you make informed decisions when selecting the ideal LED strip lights or linear mirror lights for your project.
1. First, clarify the application scenario.
First, determine the location and usage of the mirror.
- Bathroom mirrors require IP65-rated waterproof lighting.
- Vanity mirrors require a high color rendering index (Ra > 90) to achieve accurate color reproduction.
- Decorative or ambient mirrors may consider RGB or adjustable white light LED solutions.
- Smart mirrors are typically integrated with sensors or dimming drivers.
Tip: Match the lighting style (backlight, edge light, or surface-mounted) with the mirror’s structure and intended use.
2. Select the appropriate LED light strip.
When selecting LED light strips for mirrors, consider the following parameters:
| Specification | Recommended Value | Purpose |
| Voltage | DC 12V / 24V | Safe for residential and bathroom use |
| LED Type | SMD 2835 / 5050 (CRI >90) | Soft yet high-quality illumination |
| Color Temperature | 3000K / 4000K / 6000K | Warm white for ambience; cool white for clarity |
| IP Rating | IP20 (indoor dry), IP65 (bathroom) | Moisture protection |
| PCB Width | 8mm / 10mm | Compatible with aluminum profiles |
| Power Consumption | 10-14W/m (typical) | Balance brightness and energy use |
For large or custom mirrors, we recommend using cut-to-length light strips and flexible PCB options.
3. Select aluminum profiles (if needed).
Using aluminum rails with a frosted cover enhances aesthetics and thermal performance.
- Eliminate LED hotspots.
- Improve heat dissipation
- Achieve a professional, integrated appearance.
- Support embedded installation or frameless designs
4. Do not overlook power supply.
The quality of your LED mirror lighting system depends on its driver. Ensure you select
- Constant-voltage LED drivers (12V or 24V, matching the strip voltage)
- Dimmable drivers for flexible brightness control
- Drivers supporting touch sensors or motion sensors, suitable for smart mirror systems
5. Safety and certification
Especially for B2B buyers targeting the EU/US markets, ensure all components comply with necessary standards:
- European CE, RoHS certification
- US UL, FCC certification
- IP65 waterproof rating (suitable for bathroom environments)
- LEDs tested to LM-80 standards (ensuring long lifespan)
6. Consider OEM/ODM customization services.
If you are a mirror manufacturer or lighting system integrator, choose suppliers offering the following services:
- Custom lengths and cutting options
- Pre-welded connectors or sensor modules
- Customizable color temperature and color rendering index (CRI)
- Private brand labeling and packaging services
Purchasing LED lighting for mirrors from China
China is the global hub for LED lighting manufacturing, offering a complete supply chain, competitive pricing, and scalable production capacity. If you are a mirror manufacturer, lighting wholesaler, or project contractor, sourcing LED light strips or LED linear mirror lights from China ensures a smooth and cost-effective procurement process.
SignliteLED specializes in providing flexible, energy-efficient LED mirror lighting solutions for residential and commercial applications. Contact us for professional advice, samples, or a quick quote to support your next project.
FAQ
Questions you may have about mirror LED lighting.
A: For mirror backlighting, we recommend COB LED strips or high-density SMD2835 strips with ≥90 CRI and 4000K/6000K color temperature. These provide smooth, even glow without visible hotspots. Use with aluminum channels with diffused covers to enhance uniformity and thermal stability.
A: Yes, as long as the LED strip is rated IP65 or higher, it's suitable for humid environments like bathrooms. Also ensure waterproof connectors and sealed profiles are used if the installation is exposed to moisture.
A: LED strip lights are flexible and customizable, ideal for mirror backlighting or edge glow. Linear LED mirror lights are ready-made fixtures with integrated housing, used for front-facing illumination like vanity or makeup mirrors.
A: Yes. For LED strips (DC12V/24V), you’ll need a constant voltage LED driver. For linear mirror lights (AC input), choose a version compatible with 0-10V, DALI, or touch dimming based on your control requirements.
A: Absolutely. Most LED strips can be cut every 25mm or 50mm, depending on the model. They're ideal for custom-sized mirrors or modular furniture lighting. We also offer pre-cut and connector-ready kits for bulk orders.
A: Use COB LED strips or aluminum profiles with diffused covers. These eliminate hotspot effects and create soft, uniform illumination, especially important for high-end mirrors and makeup use.
A: Yes, our LED mirror lighting solutions are compatible with touch dimmers, motion sensors, remote controls, and even smart home integration via 0-10V or DALI dimming interfaces.
