360 Degree Round LED Neon Flex With LED Strips Inside

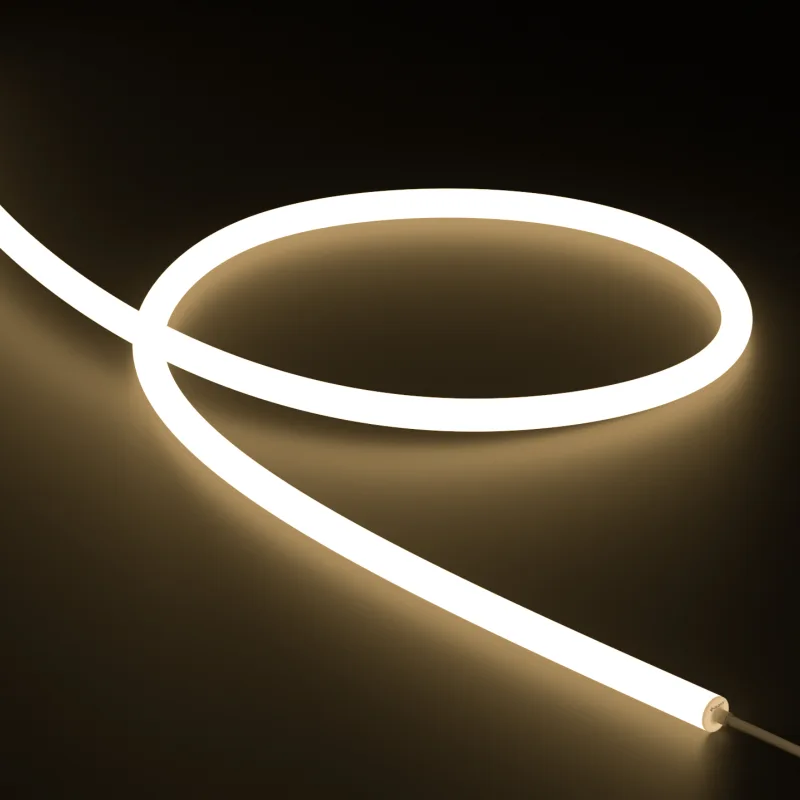

The Round 360° LED Flexible Neon Tube is a revolutionary lighting solution designed to bring new style and versatility to your space. Featuring innovative technology, this round LED neon strip illuminates 360° with no dark zones and can be freely twisted for straight, round, curved, and other specialty shapes. It is available in different mounting options, supporting both suspended and surface mounting, as well as RGB and SPI RGB versions, making it the ideal lighting solution for your space design and artistic styling. For more Round LED Neon Flex, please read the blog: คู่มือ 360 รอบ LED นีออน FLEX.
- 360° rounded luminous surface, uniform illumination, no light spots
- 3 diameters available: Dia 15mm, Dia 22mm, Dia 25mm
- Free bending for decorative space lighting

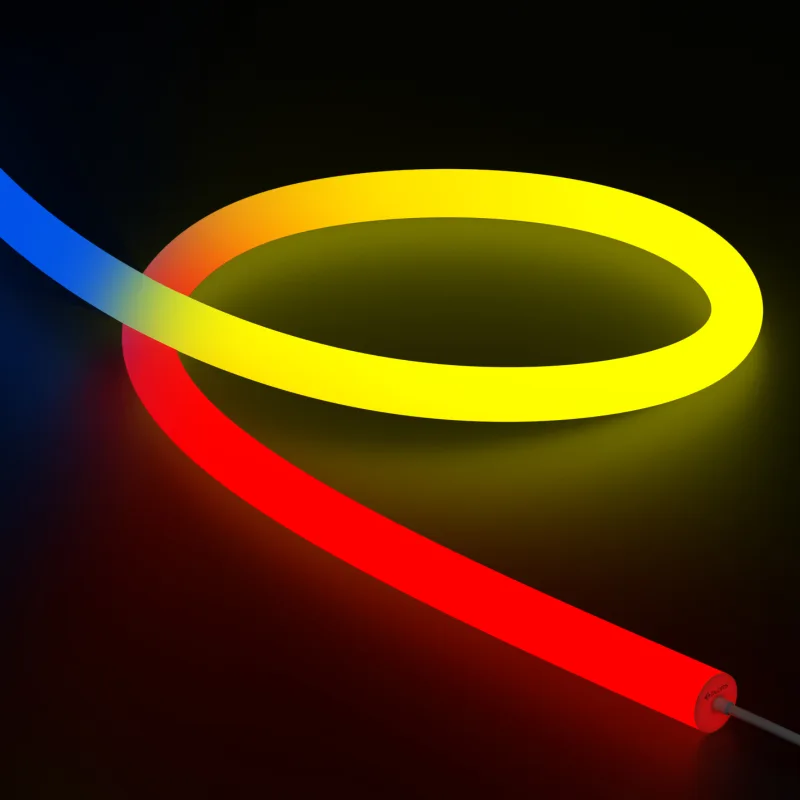

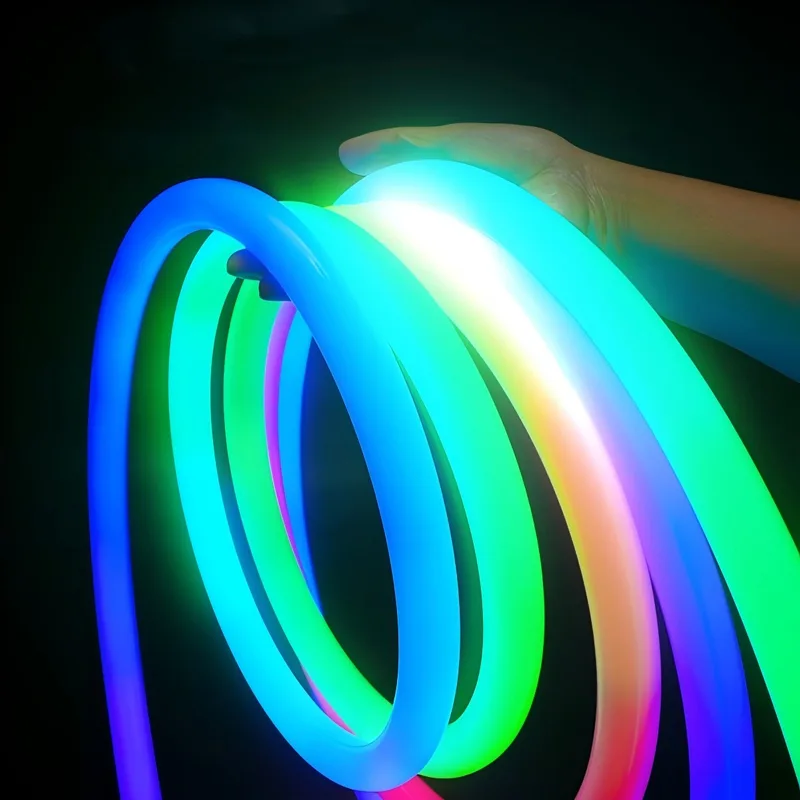

- Multiple color options: 2700K-6500K, RGB, SPI RGB
- High transmittance, environmentally friendly silicone material
- Resistant to salt, acid, and alkali corrosion, UV resistance, and fire prevention
- Suitable for hanging and surface mounting
- 3 year warranty, service life ≥ 36000 hours
- NQX1010TC Specification Download
360° Round LED Neon Strip Specifications:
หมายเลขรุ่น
D15
D22
D25
แรงดันไฟเข้า
DC24V
DC24V
DC24V
อำนาจ
9.6W/m
18.4W/m
18.4W/m
จำนวน LED
120LEDs/m
240LEDs/m
240LEDs/m
ส.ป.ก
2700K - 6500K
2700K - 6500K, RGB, SPI RGB
2700K - 6500K, RGB, SPI RGB
CRI
>80
>90
>90
ลูเมน
>670lm/m
1260-1370LM/ม.
1140-1230lm/m
มุมลำแสง
270°
360°
360°
หน้าตัด
50 มม.
50 มม.
50 มม.
เรตติ้งไอพี
ip65
ip65
ip65
Package Length
5m/roll
5m/roll
5m/roll
360° Round Neon Tube Advantages:
Customizable design: 360° Round LED Neon Tube can be tailored to your specific requirements, including size, color, power, voltage, wiring terminals, etc., ensuring a perfect fit for your project needs.
High CRI and brightness; CRI > 80/90.
High-light transmittance optical silicone, dot-free lighting.
Environment-friendly silicone material, better transmittance, and a longer lifetime.
UV-resistant, yellowing-resistant, and salt-resistant, the operating temperature is -25°C to 100°C.
Sealing with no gap end cap.
360 Round Neon Flex Installation Method
This round neon strip offers a variety of mounting options to meet your specific needs. You can customize the installation to achieve the desired lighting effect by recessing it into a wall or ceiling, surface mounting it, or suspending it. Whether you want to create a subtle ambient light or a bold personalized accent, the Round 360° LED Flexible Neon has you covered.
Application Ideas
The Round 360° LED Neon Tube is versatile and suitable for a variety of decorative applications. Using the various accessories associated with it, you can design the decorative look you want. From accent lighting in residential spaces to glamorous displays in retail stores, restaurants, and hotels, this flexible LED neon tube allows you to unleash your ideas and turn any space into a visual masterpiece.
How to Connect Round RGB LED Neon Flex
โรงงานของเรา
- โรงงานตั้งอยู่ในเมืองอุตสาหกรรมการผลิตอัจฉริยะ เซินเจิ้น
- ทีมงานที่มีส่วนร่วมอย่างลึกซึ้งในอุตสาหกรรมนี้ตั้งแต่ปี 2010
- ติดตั้งเครื่องมือทดสอบด้วยแสงที่สมบูรณ์
- ผลิตภัณฑ์อยู่ในรายการ UL 100% อายุและทดสอบ
- เชี่ยวชาญในการออกแบบผลิตภัณฑ์ OEM & ODM พัฒนาและสนับสนุน
- ปลูกฝังป้ายและผลิตภัณฑ์ไฟ LED เชิงเส้นอย่างล้ำลึกมากกว่า 10 ปี
ใบรับรองผลิตภัณฑ์
Why Choose Us?
Cable Input Direction
Neon Inner Structure
Color Temperature Optional
Bendable, Fireproof, Waterproof
ดัชนีการแสดงผลสี
Neon Cutting Process
Step 1: Cut according to your needs.
Step 2: Apply silicone glue at the end.
Step 3: Put the end cap on to firmly fit the light.
Step 4: Wipe off redundant glue with a rag.
Optional Accessories
Optional More Sizes
The following is a cross-section of the LED neon strip:
NQX0410SC
NQX0612SC
NAQ1220SC
NQX0815TC
NQX1010TC
NQX1212TC
NQX1616TC
NQX15DC
NQX22CC
Wiring Installation Diagram
Single Color Wiring Diagram
RGB Wiring Diagram
หีบห่อ
5 เมตร/รีล
ถุงป้องกันไฟฟ้าสถิตย์ด้านใน
