đèn tấm led
High-Quality Manufacturer in China | OEM & Custom Backlighting Panels
- Easily shape around edges and curves
- Cuttable sections for custom designs
- Plug-and-play with on-board connectors
- High-density LED array for uniform light (no hot spots)
- Adhesive backing & screw-mount points for easy installation
- Single Color, Tunable White, RGB, RGBW, and Pixel (SPI / DMX512) options
Wholesale Flexible LED Sheets
Flexible LED Sheets are perfect for a wide range of lighting projects. They bend and conform to curves with ease, and cut points in two directions make creating custom shapes simple. Multiple sheets can run on a single power source, and our connectors allow solder-free linking.
Available in various white temperatures, tunable white (CCT adjustable), RGB, RGBW, and programmable options, these sheets meet diverse lighting needs. From accent lighting and lightboxes to signage and retail displays, they provide flexible solutions for complex installations.
All sheets are dimmable, flexible, and cuttable, with 3M adhesive backing for easy installation. Optional click-in power adapters and interconnectors make setup quick and hassle-free.
1. Flexible White LED Sheet Panels – 2835 Dimmable, 24V Cuttable
Single Color LED Sheets
Size( L x W ): 250mmx250mm/ 490mmx245mm
LED type: 2835 SMD
LED quantity: 100PCS/ 242PCS
Điện áp làm việc: DC24V
Sức mạnh: 12W/ 28W
CCT: 2700K/ 3000K/ 4000K/ 6000K/ 6500K
Thông lượng phát sáng: 1200lm/ 2800lm
CRI: > 80ra
Minimum cutting length: 25mmx25mm/ 22.3mmx22.3mm
Có thể làm mờ: YES
Góc chùm: 120 °
Waterproof level: IP20 non-waterproof, IP54 waterproof
Bảo hành: 3 năm
Our LED Sheet Lights are ultra-thin, lightweight, and flexible enough to fit almost any surface or shape. They’re widely used in architectural lighting, signage, retail displays, and even backlit marble countertops.
We offer two cuttable sizes — 250×250mm and 490×245mm. Each panel uses SMD2835 LEDs on a dual-layer PCB, ensuring consistent brightness, excellent flexibility, and no voltage drop across the sheet. Trim lines make it easy to cut to the exact size you need.
Installation is simple: just peel the double-sided adhesive backing and stick. Power connectors allow you to link multiple panels together for larger projects.
Available in 3000K warm white, 4000K natural white, and 6500K pure white, our LED sheets can also be paired with a dimmable LED driver for adjustable brightness.
Includes:
1 x LED light sheet panel
2 x 2P connection pieces
2 x 2P power connectors
4 / 8 x Anti-collision silicone particles
2. Tunable White LED Light Sheets – Ultra-Thin, Bendable, 24V
tấm LED trắng có thể điều chỉnh
Kích thước (L x W): 250mmx250 mm/ 490mmx245mm
LED type: 2835 SMD
LED quantity: 200PCS/484PCS
Điện áp làm việc: DC 24V
Sức mạnh: 16W/40W
Color temperature adjustable range: 2700K-6500K
Thông lượng phát sáng: 1600lm/3800lm
CRI: > 90ra
Minimum cutting length: 25mmx25mm/ 22.3mmx22.3mm
Có thể làm mờ: YES
Góc chùm: 120 °
Waterproof level: IP20 non-waterproof, IP54 waterproof
Bảo hành: 3 năm
Our Tunable White LED Sheet Lights are ultra-thin, lightweight, and flexible, designed to fit both flat and curved surfaces with ease. They provide smooth, even illumination with adjustable color temperature and brightness, making them ideal for projects that require dynamic lighting effects.
We offer two standard sizes — 250×250mm and 490×250mm. Each panel features high-quality SMD LEDs on a dual-layer PCB, ensuring consistent brightness and excellent durability. Trim lines on the board make it easy to cut the sheets into custom sizes for different projects.
Installation is simple. The back comes with strong double-sided adhesive, so you can mount the panels quickly on most surfaces. Power connectors allow you to link multiple sheets together to cover larger areas without complicated wiring.
Paired with a CCT LED controller, these sheets let you fine-tune the color temperature from 2700K warm white to 6500K pure white, along with full brightness control. This makes them perfect for architectural accents, shop windows, retail displays, illuminated signage, countertops, and decorative backlighting.
Includes:
1 x Dual white light sheet panel
2 x 3P connectin cables
2 x 3P input cables
4 / 8 x Anti-collision silicone particles
3. RGB LED Panel Sheets – 24V Color-Changing, Cuttable
Tấm LED RGB
Kích thước (L x W): 490mmx245 mm
LED type: 5050 SMD
LED quantity: 128pcs
Điện áp làm việc: DC24V
Sức mạnh: 45W
Màu sắc: rgb
Có thể làm mờ: YES
Cut length: 39.6 mm
Góc chùm: 120 °
Waterproof level: IP20 non-waterproof, IP54 waterproof
Tuổi thọ: >35,000 hours
Bảo hành: 3 năm
Our color-changing RGB LED sheets feature an ultra-thin, flexible design with high-quality 5050 SMD LEDs for uniform brightness and vivid colors. The dual-layer PCB ensures stability, while cut lines allow you to trim panels to the exact size you need. Multiple connectors make it easy to link several sheets for large-scale projects.
These sheets pair with RGB LED controllers, enabling both static colors and dynamic lighting effects with adjustable speed and brightness. The bendable, cuttable design makes them ideal for custom applications such as signage, countertops, display boxes, and advertising backlighting.
For simple installation, each panel comes with double-sided adhesive backing. Options include IP20 (indoor) and IP54 (outdoor) protection, providing flexibility for different environments.
Includes:
1 x RGB LED panel sheet
2 x 4P connection cables
2 x 4P input cables
8 x Anti-collision silicone particles
4. RGBW LED Light Sheets – Flexible, 24V, Uniform Backlighting
RGBW
Kích thước (L x W): 250mmx250mm/ 490mmx250mm
LED type: 5050 RGBW 4 In 1 SMD
LED quantity: 150PCS/ 288PCS
Điện áp làm việc: DC 24V
Sức mạnh: 24W/ 48W
Emitting color: RGB+3000K, RGB+4000K, RGB+6500K
Light Efficiency: 90LM/W
Minimum cutting length: 50mmx50mm/ 20.4mmx122.5mm
Góc chùm: 120 °
Có thể làm mờ: YES
Waterproof Level: IP20 non-waterproof, IP54 waterproof
Bảo hành: 3 năm
Our 24V RGBW LED sheets are flexible, bendable, cuttable, and easily connectable, making them ideal for architectural, commercial, and residential lighting projects. They deliver bright, uniform, dot-free backlighting for walls, ceilings, signage, and custom displays. Quick-connect terminals simplify installation for large-scale projects.
Each sheet uses premium 4-in-1 5050 SMD LEDs, combining red, green, blue, and white chips in one package for true RGBW performance. When paired with an RGBW LED controller, you can achieve a wide range of static colors, dynamic modes, and brightness adjustments.
Mounted on a durable dual-layer flexible PCB, the panels can be trimmed along marked cut lines and shaped to fit curved or irregular surfaces. With strong double-sided adhesive backing, installation is quick and hassle-free.
Includes:
1 x DC24V RGBW LED light sheet
2 x 5P connection cables
2 x 5P input cables
4 / 8 x Anti-collision silicone particles
5. RGB+CCT LED Sheets – Cuttable Backlighting Panels
RGB+CCT LED Sheets
Kích thước (L x W): 490mmx245mm/ 500mmx245mm
LED type: 2835 SMD/ 5050 SMD
LED quantity: 640PCS / 360PCS
Điện áp làm việc: DC 24V
Sức mạnh: 50W/ 60W
Màu sắc: RGB+tunable white
Thông lượng phát sáng: 1800 lm/ 2160lm
Có thể làm mờ: vâng
Color temperature adjustable: vâng
CRI: > 80ra
Góc chùm: 120 °
Cut length: 30.6mmx30.6mm/ 125mm
Waterproof Level: IP20 non-waterproof, IP54 waterproof
Bảo hành: 3 năm
Our RGB+CCT LED sheets are a versatile solution for creative backlighting in countertops, display boxes, signage, and custom projects. With their cuttable and connectable design, they can be tailored to fit unique spaces or extended for large-scale installations.
These panels use high-quality 2835 or 5050 SMD LEDs, evenly arranged on a dual-layer flexible PCB for consistent brightness and bendability. Paired with an RGB+CCT controller, they deliver millions of colors, adjustable color temperature (warm white to cool white), and dimmable brightness to match any scene.
For installation, the sheets feature trim lines for easy cutting, pre-drilled mounting holes, and strong double-sided adhesive backing. Multiple panels can be linked together for retail, architectural, or residential lighting projects.
Includes:
1 x RGBWW backlight LED sheet
2 x 6P connection cables
2 x 6P Input Cables
8 x Anti-collision silicone particles
6. Addressable LED Sheets – 12V Digital RGB, Individually Controlled
Addressable LED Sheets
Kích thước (L x W): 250mmx250mm
Loại LED: 5050 SMD
LED quantity: 100 chiếc
IC type: Built-in WS2812
IC quantity: 100 chiếc
Màu sắc: thuộc về nước Rgbic
Điện áp làm việc: DC 12V
Current: 1.08A
Sức mạnh: 13W
Thông lượng phát sáng: 20lm/LED
Góc chùm: 120 °
Waterproof Level: IP20 non-waterproof, IP54 waterproof
Tuổi thọ: >35,000 hours
Bảo hành: 3 năm
Our individually addressable LED sheets offer advanced backlighting solutions with flexible, bendable, cuttable, and connectable features. They are ideal for marble countertops, display boxes, signage, and custom DIY lighting projects.
Each sheet uses 5050 SMD LEDs with built-in WS2812 ICs, enabling pixel-level control for hundreds of dynamic effects and color patterns. The LEDs are evenly distributed on square dual-layer PCB boards, ensuring uniform illumination and stability.
Designed with six connectors (input, output, and power), the panels allow easy linking for large programmable lighting setups. They can be trimmed along marked cut lines and shaped to fit curved or irregular surfaces.
For installation, the sheets feature strong double-sided adhesive backing and pre-drilled mounting holes. Both IP20 (indoor) and IP54 (splash-resistant) versions are available.
Includes:
1 x Programmable lighting sheet
2 x 4P connection cables
2 x 4P Signal input cables
1 x 2P Power cable
1 X 2P Power connection cable
7. Optical Lens LED Sheets – Flexible, Dimmable, 24V
Optical Lens LED Sheets
Size( L x W x H ): 500mmx250mmx8mm
LED type: 2835 SMD
LED quantity: 98PCS
Điện áp làm việc: DC 24V
Sức mạnh: 20W
CCT: 2700K/ 3000K/ 4000K/ 6000K/ 6500K
Illuminous flux: 1800LM
CRI: > 90Ra
Góc chùm: 180 °
Cut size: 1 đèn LED
IP grade: IP20 không thấm nước
Tuổi thọ: >35,000 hours
Bảo hành: 3 năm
This LED sheet uses 2835 SMD LEDs with integrated optical lenses to expand the beam angle to 180°, delivering bright and uniform illumination. It is ideal for backlighting countertops, display boxes, signage, and other creative lighting projects.
The LEDs are mounted on a dual-layer flexible PCB board, which is bendable and cuttable to fit curved or irregular surfaces. The minimum cuttable unit is one LED, giving you flexibility for custom applications.
Available in four color temperatures—2700K and 3000K warm white, 4000K natural white, and 6500K pure white—the panels can be paired with a 24V LED driver or dimmer for brightness control.
For installation, the sheets come with double-sided adhesive backing and screw holes for secure mounting. They are designed for dry indoor use only and are not waterproof.
Includes:
1 x Programmable lighting sheet
2 x 4P connection cables
2 x 4P Signal input cables
1 x 2P Power cable
1 X 2P Power connection cable
8. Black PCB Addressable LED Sheets – 24V Programmable Lighting
Black PCB Addressable LED Sheets
Kích thước (L x W): 490mmx250mm
LED type: 5050 SMD
LED quantity: 192PCS
IC type: SM16703
IC QTY: 32PCS
Điện áp làm việc: DC 24V
Current: 1.75A
Sức mạnh: 42W
Màu sắc: Digital RGB
Góc chùm: 120 °
Minimum cut length( L x W ): Every 6LEDs / 61.25mmx61.25mm
PCB color: sắc đen
Wavelengths: 620-625nm(R), 520-525nm(G), 460-465nm(B)
IP xếp hạng: IP20 non-waterproof; IP54 waterproof
Bảo hành: 3 năm
These addressable LED sheet panels are designed for advanced backlighting in residential and commercial projects. They are slim, flexible, bendable, cuttable, and connectable, making them suitable for both flat and curved surfaces.
Each sheet uses 5050 SMD LEDs mounted on a black dual-layer PCB. With 32 built-in ICs per panel, the LEDs are individually addressable, allowing you to create hundreds of lighting effects when paired with an SPI controller—ranging from dynamic single-color modes to complex color-changing patterns.
The panels feature two power connectors, an input port, and an output port, making it simple to link multiple sheets for large-scale installations. Following the marked cut lines, the sheets can be trimmed for DIY projects or custom applications.
For installation, the back is equipped with double-sided adhesive tape and screw holes, with mounting screws included. Standard models are IP20 for indoor use, while IP54 waterproof versions are available for damp or wet environments.
Includes:
1 x Programmable lighting sheet
2 x 4P connection cables
2 x 4P Signal input cables
1 x 2P Power cable
1 X 2P Power connection cable

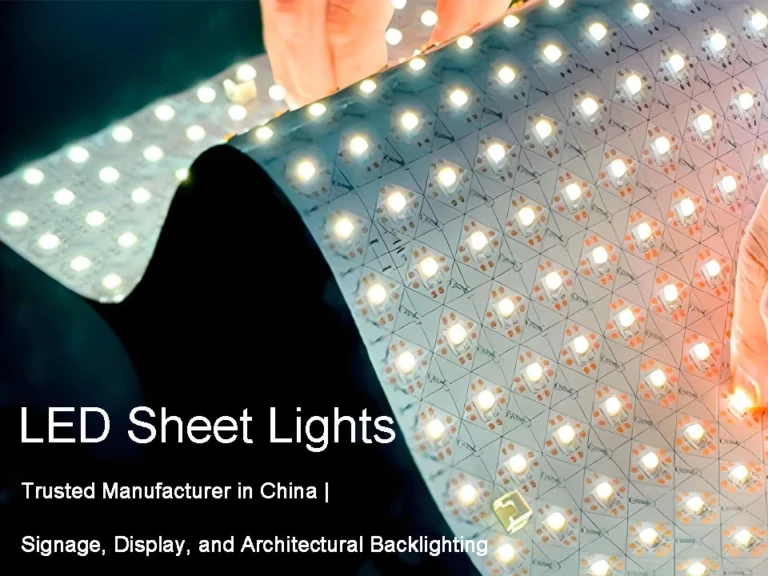

What are LED Sheets?
*LED Sheet Lights are thin, flexible panels with many LED chips that provide bright, even illumination.
*They can be cut, bent, or folded to fit curved or custom surfaces.
*Multiple sheets can be spliced together to cover wide or irregularly shaped areas.
*Available in single-color, tunable white, and RGB, many sheets come with self-adhesive backing for easy installation.
Đặc điểm sản phẩm
LED Sheet Lights are designed with a slim profile, consistent light output, and versatile options—ideal for retail displays, signage, interior decoration, and architectural backlighting.
Ultra-Thin Design
Compact thickness allows installation in tight spaces, perfect for backlighting and hidden lighting.
Flexible & Cuttable
Sheets can be cut and spliced to fit different sizes or irregular shapes (e.g., 22.3 mm or 39.6 mm cutting intervals).
Uniform Brightness
High-density LED chips deliver smooth, shadow-free illumination across the entire surface.
Tùy chọn tùy chỉnh
Available in single color (2700K–6500K), tunable white, RGB, RGBW, and RGBCCT to suit different project needs.
Cài đặt dễ dàng
3M adhesive backing and 24V plug-and-play design make setup quick and reliable.
Easy to Connecting LED Light Sheets
LED sheets can be connected via wires or connectors.
Dây:
Each LED has pinpoints at top, bottom, left, and right for soldering.
Single sheet ~300W. Use 20AWG for one sheet, 18AWG for multiple sheets. Avoid 16AWG, too thick for pinholes.
Optional: We provide soldering wires and soldering service.
Connectors:
Lightweight, fast, plug-and-play.
Removable: twist clockwise or counterclockwise with pliers.
Installation Instructions
Complete a Mock Installation
Before cutting your light sheets or sticking them on a surface, connect your LED light sheet to your dimmer and power supply. Turn on your lights and check to see if everything is working properly.
Troubleshoot If Needed
The light sheets should light up after connecting them to power. If they do not, please check your connections and make sure you are using the power connector properly.
Turn Power Off at Circuit Breaker
Turn the power off at the circuit breaker to avoid any possible injury
Cut LED Light Sheet to Required Length or Shape
Measure the light sheet to the required length or shape. Using sharp scissors, cut only along the indicated cut marks. The light sheets cut points may be vertical, horizontal or diagonal.
Installing Light Sheet Connectors
For your convenience, our Light Sheets come with a power and a jumper connector. Simply insert the connector into the connector soldered to the light sheet to make your connection.
Retest the Setup
Test the light sheets again to make sure they all light up and are functioning properly before the final installation. Once you have verified all segments are working, you’re ready to install them.
Prepare Surface for Installation
Thoroughly clean any surface where you will be attaching your LED light sheets. The adhesive backing is strong, but will not stick to dirty, dusty, or porous surfaces.
Attach the Light Sheet onto Surface
Peel the cover of the 3M tape backing a few inches at a time, while gently pressing the light sheet to the surface where you want to install it. Make sure the light sheet is secured on the surface.
Complete All Connections
Complete the connections and wiring between your power supply, dimmers, and controllers. For more guidan ce, refer to the system diagrams below on how to connect your LED Light Sheet to your LED Driver.
Turn Power On at Circuit Breaker
Turn on the power. The LED Light Sheet should light up and work properly.
How to Connect LED Sheets
Single Wire Connection
Double line connection
Amplifier connection
When you need to control more LED sheets than a single controller allows, amplifiers can be used. The maximum number of sheets per amplifier depends on the connection method—single wire or double wire.
Adapter for LED Light Sheet
Controller for LED Light Sheet
Bộ điều khiển RGB RF2.4G Full Touch
RF2.4G Vỏ nhôm 20 phím điều khiển RGB
núm màu đơn
30A Iron Case Núm
Bảng điều khiển cảm ứng làm mờ màu đơn
Bảng điều khiển cảm ứng làm mờ RGBW
bộ giải mã DMX
đèn led
LED Light Sheet Application Gallery
LED sheet lights are widely used for signage, backlighting, architectural accents, and retail displays. They deliver uniform illumination for translucent materials, illuminated signs, large ceilings, and exhibition setups, making them ideal for both commercial and decorative lighting.
