En lighting control systems, choosing the best DMX 512 interface can make the difference between a simple, reliable lighting setup and a constant headache.
The NA Intelligent interface (SLESA-U9 USB DMX512 interface) is designed as an affordable, professional DMX interface for small venues, stage lighting, architectural lighting, LED strips and fountains.
It works both as a USB DMX controller interface for live control and as a standalone DMX lighting controller, making it one of the best DMX 512 interfaces for small venues and fixed installations.
The Best DMX 512 Interface for Stage Lighting
If you run a small venue, bar, club, church, rehearsal room or mini stage, you need a DMX512 controller that is:
- easy to program
- stable during shows
- compact enough to hide in a rack or ceiling
- affordable and simple for staff to operate

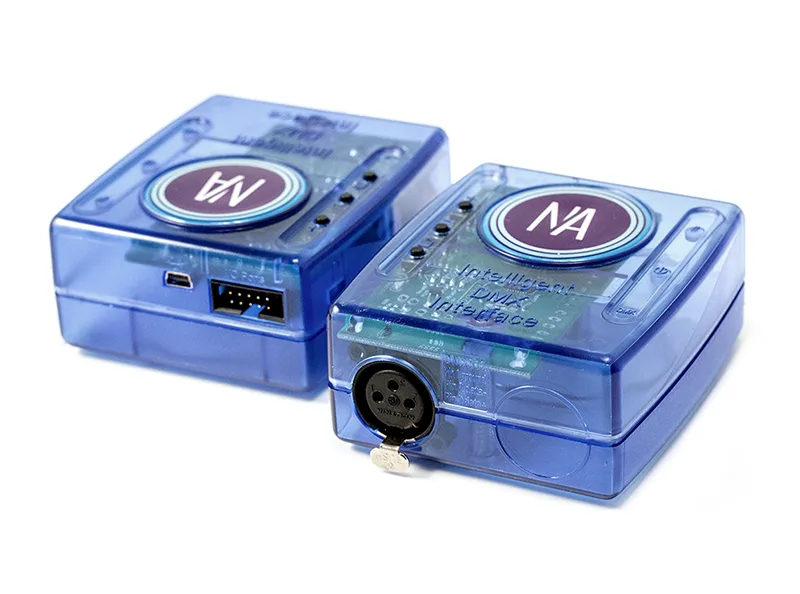

Product: Intelligent DMX Interface Controller (CTL-IF-DMX-U9)
- Connexion USB
- 256 canaux DMX512 Universe en mode autonome
- 256 canaux DMX512 en mode live
- Améliorable à 512 canaux en ligne avec SUT
- 8 ports de déclenchement à contact sec via le connecteur HE10
- Mode autonome avec 1 zone et 20 scènes
- Boutons pour changer de scène et gradateur
- Personnalisation OEM
The NA Intelligent DMX512 linghting interface (SLESA-U9) fits exactly this use case:
- Connect it via USB to a laptop running Easy Stand Alone (ESA / ESA2).
- Patch your stage lighting fixtures (LED PARs, moving heads, LED bars) into DMX 512 channels.
- Program scenes, chases and color presets.
- Download those scenes into the interface and let it run standalone without a computer.
This makes it arguably the best DMX 512 interface for small venues and stage lighting where budgets are limited but reliability still matters.
DMX512 for Beginners & Easy Programming
Many users searching for a DMX 512 interface are not full-time lighting programmers. They just want something that works.

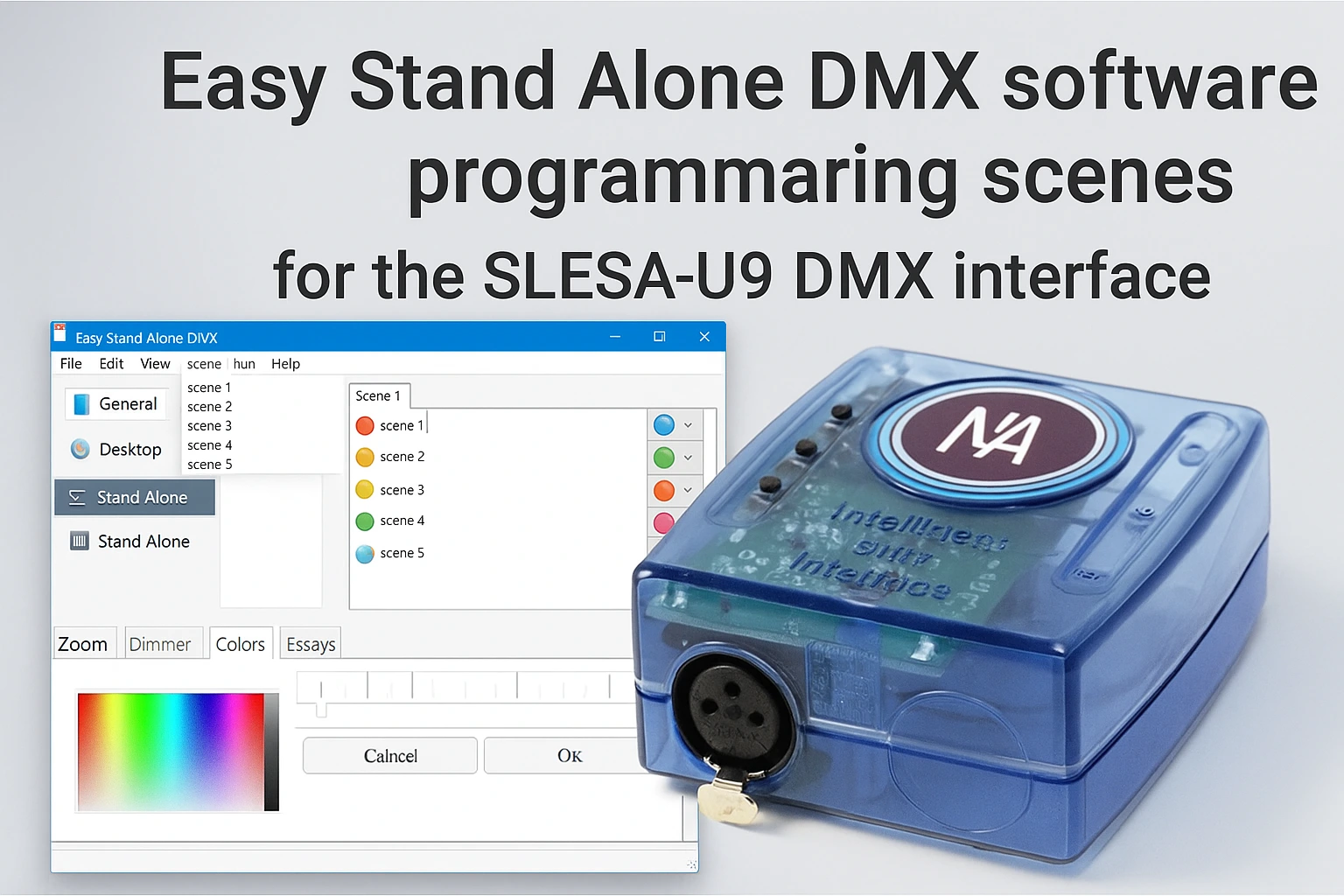

The Intelligent USB DMX interface is beginner-friendly because it uses Easy Stand Alone software:
| Feature for Beginners | How It Helps You |
|---|---|
| Graphical faders & color controls | Adjust dimmer, color and movement visually, without complex console syntax. |
| Fixture library | Load profiles for common DMX fixtures instead of building every channel by hand. |
| Scene and chase builder | Create static looks or dynamic chases with a few clicks. |
| Standalone memory editor | Choose which scenes are stored in the interface and write them with one click. |
Whether you are new to DMX512 or moving from a hardware console, this interface is one of the best DMX 512 interfaces for DMX beginners.
The Best DMX512 Controller for LED Strips & Pixel LED Projects
Pour LED strips, RGB/RGBW fixtures and pixel LED projects, many installers ask:
“What is the best DMX 512 interface for LED strips?”
Signlite DMX512 interface is an ideal match when used with DMX decoders and LED drivers:
- Output: standard DMX512 signal via 3-pin XLR.
- Compatible with:
- constant-voltage DMX decoders for RGB / RGBW LED strips
- DMX512 pixel decoders for pixel-mapped installations
- Up to 512 DMX channels via USB live mode, 256 channels standalone, enough for many small to medium LED jobs.
This makes it one of the best DMX 512 interfaces for LED strips, RGB LED and compact pixel LED projects in showrooms, bars and small architectural features.
DMX Controller for Architectural & Outdoor LED Lighting
Architectural and outdoor LED lighting projects—facades, coves, columns, landscape features—need:
- eliable DMX512 protocol playback every night
- No visible console or laptop on site
- Simple scene recall (often via wall switch or automation system)
The NA Intelligent DMX512 control interface delivers:
| Architectural Need | How the NA Intelligent DMX512 Interface Helps |
|---|---|
| Hidden hardware | Compact interface can be mounted in a cabinet or ceiling. |
| No PC on site | Runs as a standalone DMX512 controller once scenes are downloaded. |
| Simple scene triggering | Uses dry-contact inputs for wall buttons or relays. |
| Integration with building systems | Standard DMX512 output for gateways and control processors to interact with. |
For many small to medium projects, it is the best DMX 512 interface for architectural and outdoor LED lighting, especially where cost and simplicity are key.
The Best USB DMX Interface for Fountain & Water Feature Lighting
Fountain and water feature lighting is a growing application for DMX512, because it needs:
- synchronized color changes
- dynamic scenes matched to water choreography
- reliable playback, often outdoors
Using underwater or IP-rated DMX fixtures with a central DMX512 controller, the lighting interface can:
- Store multiple pre-programmed fountain lighting scenes and chases
- Run in standalone mode with dry-contact triggers from timers, PLCs or show controllers
- Provide a stable DMX512 signal to pumps and lights via DMX drivers and decoders
For small to medium fountains in plazas, malls, hotels and parks, it is one of the best DMX 512 interfaces for fountain and water feature lighting.
The Best Lighting Interface for Real-World Applications
Below is a quick summary of where the NA Intelligent DMX512 interface shines:
| Domaine d'application | Why It’s the Best DMX 512 Interface Here | Typical Fixtures / Devices |
|---|---|---|
| Small venues & stage lighting | Simple scenes, compact size, affordable, runs shows without a console | LED PARs, LED bars, moving heads |
| LED strips & pixel LED projects | Controls DMX decoders and pixel drivers with up to 512 channels | RGB/RGBW strips, pixel LED bars, DMX512 decoders |
| Architectural & outdoor LED lighting | Standalone playback, wall-switch control, hidden installation | Facade strips, cove lighting, columns, landscape fixtures |
| Fountain & water feature lighting | Reliable DMX512 playback, scene recall via triggers, supports underwater fixtures | Fountain spots, RGB submersible lights, DMX pumps & drivers |

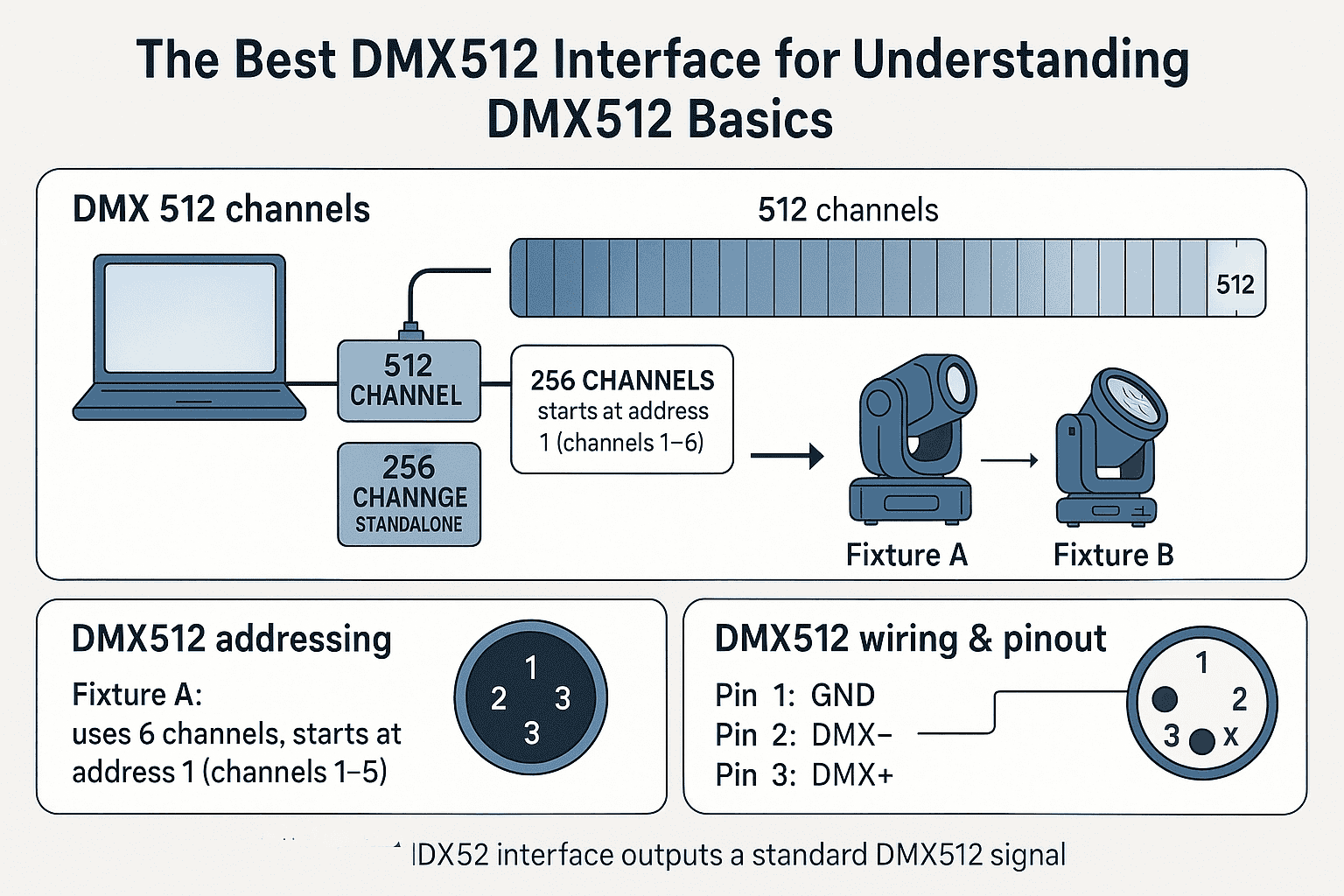

Understanding DMX512 Interface and How It Works
To get the most from any DMX512 interface, it helps to understand a few essentials of the DMX512 protocol:
- DMX 512 channels
Each DMX universe carries 512 channels. The 512 lighting interface supports:- 512 channels in USB live mode
- 256 channels in standalone mode
- DMX512 addressing
Every fixture needs a DMX 512 address (start address).
Exemple :- Fixture A: uses 6 channels, starts at address 1 (channels 1–6)
- Fixture B: starts at address 7, and so on
- DMX512 wiring & pinout
Standard 3-pin XLR output:- Pin 1: GND
- Pin 2: DMX-
- Pin 3: DMX+
The 512 interface outputs a standard DMX512 signal, making it easy to connect to decoders, fixtures and gateways using normal DMX512 wiring guidelines.
USB DMX Interface for Outdoor LED vs SPI Control
For outdoor LED projects (facades, pixel lines, fountains), many users ask:
“Should I use DMX512 or SPI for my LED control?”
Here is a simplified comparison:
| Objet | DMX512 Control | SPI Control (e.g. WS2811/2812) |
|---|---|---|
| Signal type | Standardized digital protocol over RS-485 | Proprietary data formats per LED chipset |
| Utilisation typique | Stage lighting, architectural, fountains, building | Pixel LED screens, intricate animations, media facades |
| Cable distance | Long runs (hundreds of meters with proper wiring) | Limited distance from controller to pixel chain |
| Compatibilité | Works with any DMX512 fixtures/decoders | Tied to specific SPI chipsets & controllers |
| Complexité | Easier for installers, standard addressing | More complex pixel mapping & chipset details |
For small venues, architectural lighting and fountains, a DMX512 interface is usually the best, most compatible and most robust choice, especially when using DMX decoders and DMX LED drivers.
Can I use DMX512 for home lighting
DMX512 can be used for home lighting, but it is typically recommended only for smart homes, media rooms, home theaters, or architectural accent lighting rather than whole-house illumination.
DMX512 is a professional lighting control protocol originally designed for stage and architectural lighting. It offers precise control over:
- Bandes LED RGB/RGBW
- Wall washers
- Cove lighting
- Accent lights
- Dynamic color effects
However, standard home lighting (like ceiling lamps or downlights) usually uses:
- DALI,
- 0-10V,
- Triac dimming,
- Zigbee/Z-Wave,
- Wi-Fi smart bulbs
DMX512 home use is ideal when you want:
- Smooth fades
- Color-changing effects
- Scene-based lighting
- Integration with media or sync systems
So yes—DMX512 works for home lighting, but it is most suitable for creative or decorative lighting zones, not as a full-house lighting system.
Can DMX512 Be Used In KNX Control Systems
DMX512 can be integrated with KNX control systems using a KNX-to-DMX gateway or DMX512 interface module.
These devices translate KNX commands into DMX512 signals, allowing KNX to control:
- Bandes LED RGB/RGBW
- DMX spotlights
- Wall washers
- Architectural façade lighting
- Decorative lighting scenes
Typical KNX–DMX hardware includes:
- KNX DMX gateways (e.g., 512-channel gateways)
- Bi-directional KNX/DMX interfaces
Benefits of integrating DMX512 into KNX include:
- Centralized building control
- Scene triggering via KNX panels or automation
- High-precision dimming from DMX
- Multi-zone synchronized effects
In summary, yes—DMX512 is fully compatible with KNX systems through a KNX–DMX interface, and this combination is common in hotels, malls, villas, outdoor facades, and premium residential projects.
Can DMX cables be used for audio
Technically yes, but not recommended.
DMX cables and audio XLR cables are NOT the same, even though they use similar connectors (3-pin XLR).
Key differences:
| Fonctionnalité | Câble DMX | Audio Microphone Cable |
|---|---|---|
| Impedance | 110–120 ohm | 45–75 ohm |
| Objectif | High-speed digital data | Analog audio |
| Shielding | Designed for RS-485 | Designed for noise rejection in audio |
| Voltage tolerance | Plus élevé | Plus bas |
Using a DMX cable for audio may lead to:
- Noise or hum
- Signal degradation
- Lower-quality sound
Using an audio cable for DMX may cause:
- Data corruption
- Flickering lights
- Unstable DMX signal
Best practice:
Use the correct cable type for each job:
- DMX → DMX512-rated data cable
- Audio → microphone/balanced audio cable
This ensures reliable performance in both lighting and audio systems.
In summary, the NA SLESA-U9 is a practical and reliable dmx 512 interface for small to medium lighting projects that need both flexible software control and dependable standalone playback. By combining Easy Stand Alone software with a compact hardware controller, it gives installers, integrators and end users an easy way to program, store and replay professional DMX lighting scenes without relying on a bulky console or a permanently connected computer.
