LED 시트 조명을 자르고 설치하고 설정하는 방법

In commercial and architectural lighting projects, LED sheet lights are gradually replacing traditional light strips and tubes as the preferred solution for advertising light boxes, display cases, interior ceilings, and decorative lighting. They offer ultra-thin designs, flexible cutting, and uniform light distribution, while also enabling seamless splicing to create large-area continuous illumination tailored to spatial requirements.

LED 시트 조명 provide an efficient and flexible solution for both illumination and decoration. However, many users still encounter challenges during installation. By following these key points, you can ensure optimal performance:

• Cut along designated markings;
• Select a compatible power supply with sufficient margin;
• Choose appropriate connection methods to ensure secure wiring;
• Conduct regular inspections and troubleshoot common issues.

By correctly cutting, installing, and configuring your LED light sheets, you can achieve optimal illumination and ensure long-term, stable operation.

This comprehensive guide walks you through the proper use of LED sheets—from cutting and installation to power configuration and debugging. Whether you’re a first-time user or an installer working on a project, this article equips you with practical techniques to avoid common mistakes and achieve lasting, reliable lighting performance.

관련 독서:

LED 시트 조명 - 프로젝트 및 구매자를 위한 완전한 가이드
LED 시트 조명으로 건축 백라이트 프로젝트

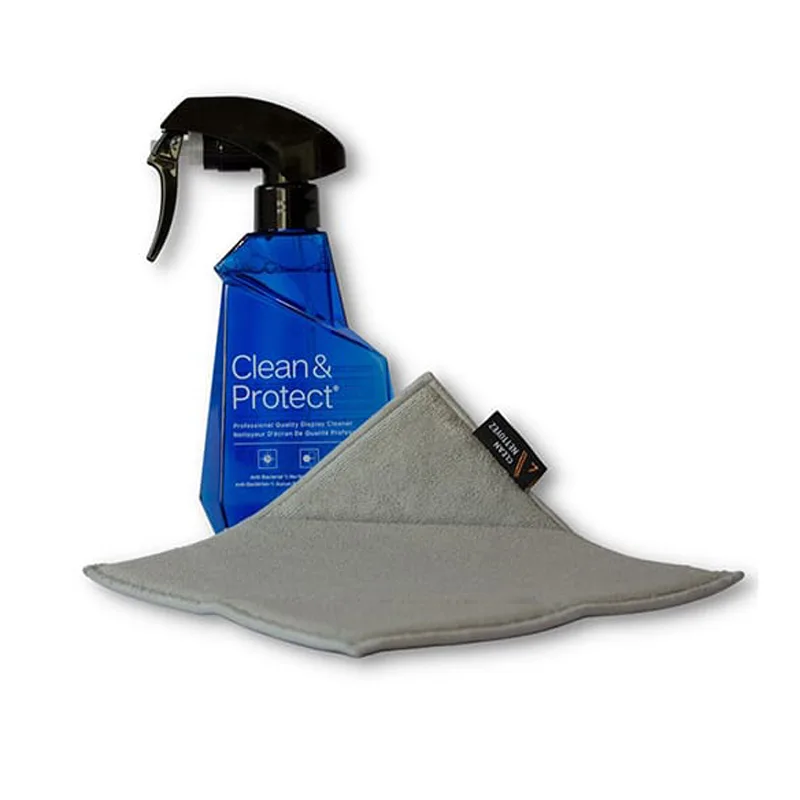

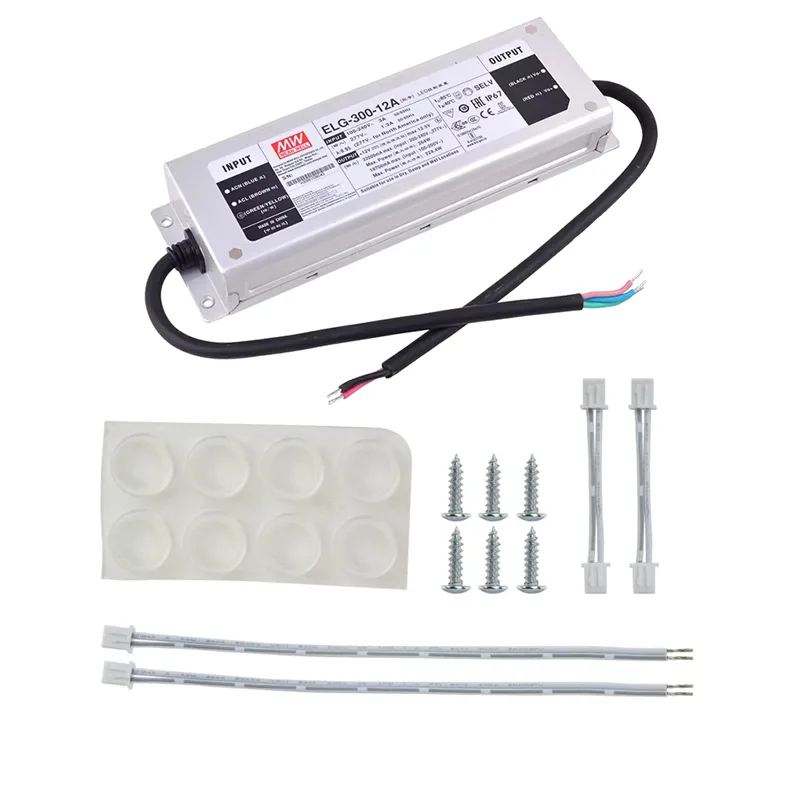

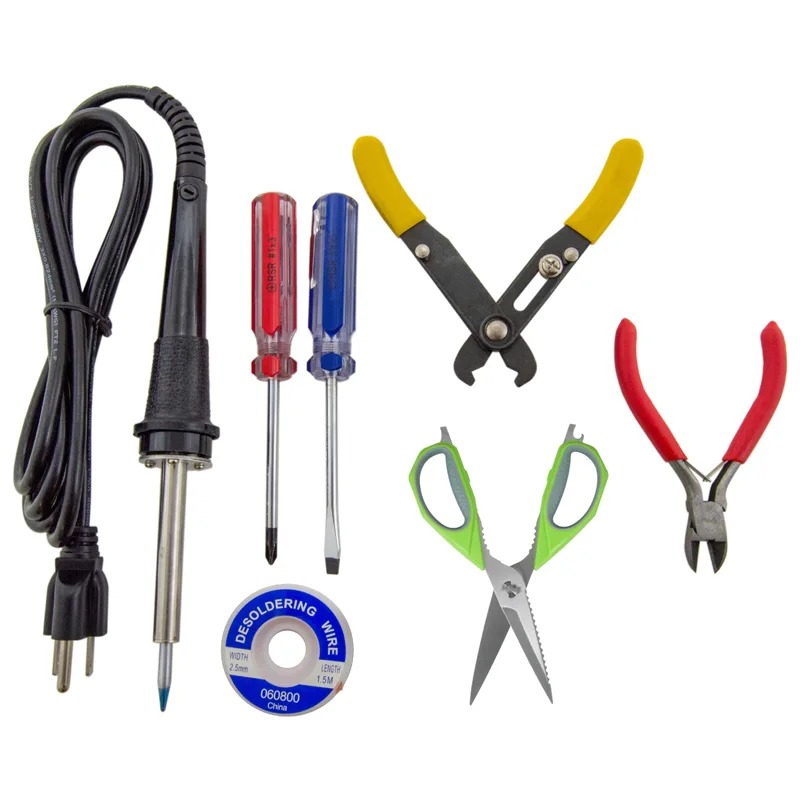

Tools and Materials You’ll Need

A successful installation begins with thorough preparation. Therefore, having the right tools and accessories ready before cutting and installing LED sheet lights is crucial. The correct tools not only enhance installation efficiency but also prevent damage caused by improper handling.

Below are the common materials and tools you may need:

Pre-Installation Recommendations

• Ensure all required installation items are prepared and all components are compatible.
• Do not exceed the maximum number of LED sheets in series, as this may cause voltage drop and adverse effects.
• For projects, conduct a mock installation test before final setup to identify compatibility issues early and avoid rework.

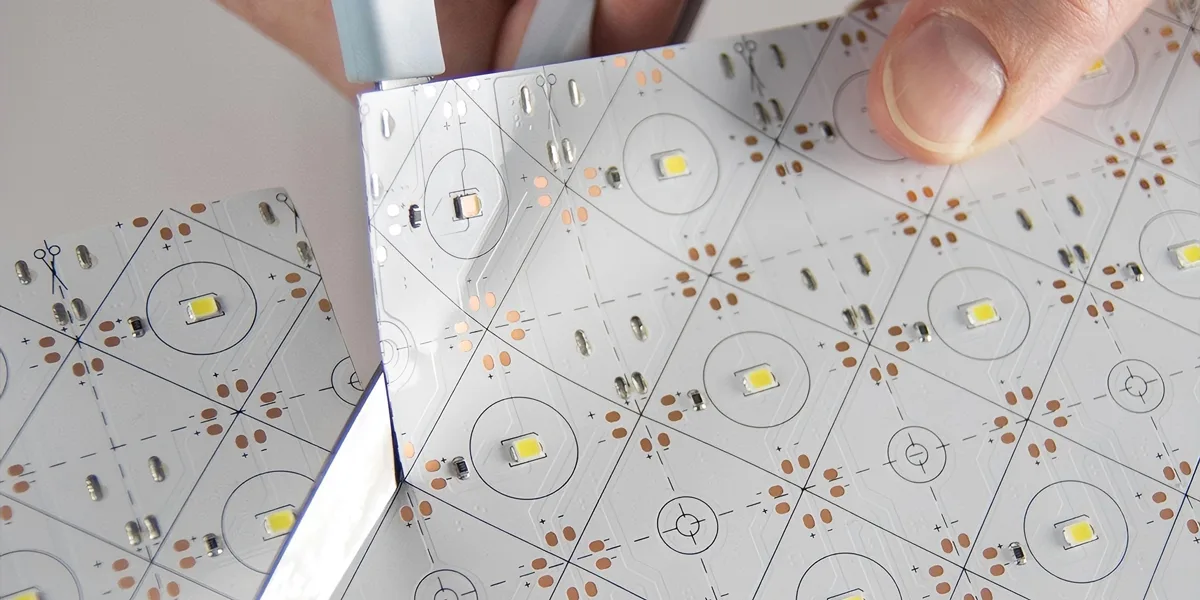

How to Safely Cut LED Sheet Lights

How can one safely cut LED sheet lights? First, locate the cutting lines on the LED sheet. Refer to the manufacturer’s cutting point guide to avoid cutting through the LED circuitry or chips.

Confirm Cutting Points

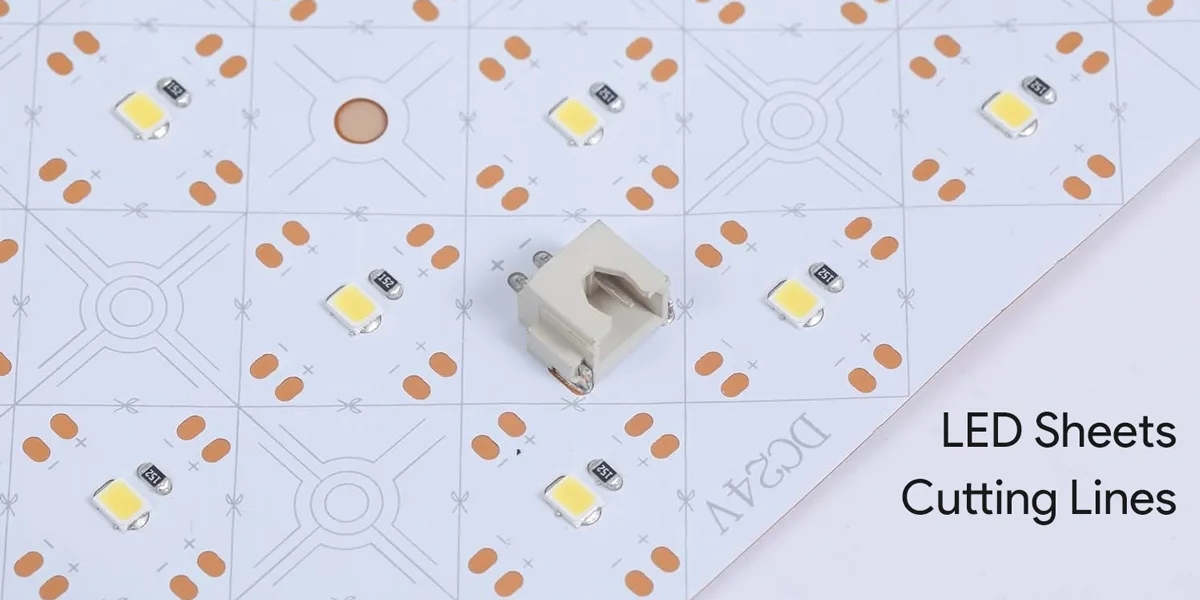

Not all areas can be cut arbitrarily. Most LED sheet lights feature factory-designed fixed cutting points (cutting lines), typically marked with dotted lines or small scissors icons on the light panel surface. These points may be vertical, horizontal, or at 45° angles.

These cutting points serve as safe circuit separation locations. Only cutting along these designated points ensures the light sheet maintains proper electrical conductivity and illumination. Cutting outside these points may damage the circuit, causing partial failure or even short-circuit risks.

Cutting Steps

After determining the cutting location, follow these steps:

1. Power Disconnection: Before any cutting, ensure the power source is completely disconnected to avoid live-wire operations.

2. Positioning and Measurement: Using a ruler and marker, mark the cutting points according to the actual installation dimensions.

3. Use Tools: Employ sharp scissors to make a clean cut along the marked line. Avoid excessive force to prevent circuit board damage.

4. Inspect Cut: After cutting, carefully examine the copper pads at the cut edge for integrity—ensure they are intact without cracks or lifting. This maintains proper conductivity during subsequent connections.

Cutting Precautions

Several critical details require special attention during cutting:

• Never exceed the cutting line: Doing so may damage the circuitry or render the entire light sheet unusable.

• Avoid excessive bending: While LED sheets are flexible, excessive bending near the cut edges can cause the conductive layer to fracture.

• Maintain clean-cut edges: Promptly trim any rough edges or loose copper foil after cutting to ensure reliable connections.

• Reserve extra connection points: During installation, it’s advisable to leave one or two extra cut points during trimming to facilitate power and controller connections.

Through proper cutting, you can flexibly adjust the size of LED sheet lights to match actual space dimensions, creating lighting effects that precisely meet project requirements while maintaining electrical safety and stability.

Power Supply and Setup

In large-scale engineering or commercial projects, power supply and system configuration for LED sheets go beyond simple plug-and-play functionality. They involve energy efficiency management, reliability, and maintenance costs. Proper power supply planning prevents uneven brightness caused by voltage drops and reduces the risk of frequent replacements later on.

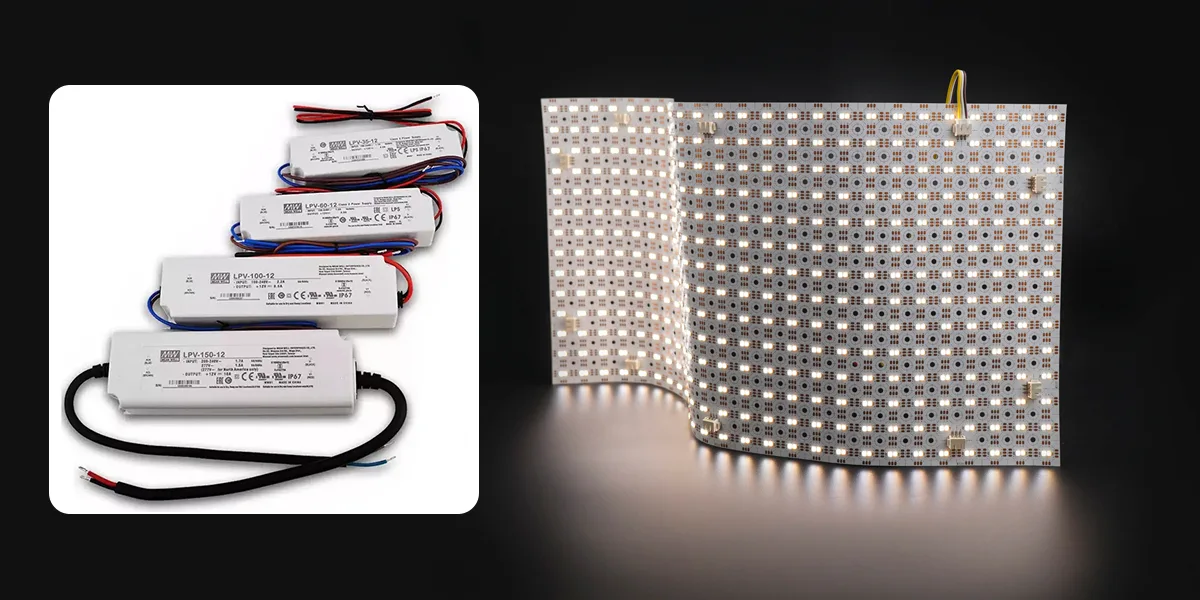

Power Supply Selection

LED sheet lights typically come in 12V or 24V low-voltage DC versions. When selecting a power supply, ensure voltage compatibility. Excessive voltage may burn out the light sheet, while insufficient voltage causes dim lighting or failure to illuminate.

Additionally, power supply capacity must be calculated based on the total wattage of the light sheets. It is generally recommended to select a power supply rated at least 20% higher than the actual wattage to ensure long-term operational stability. For example, if the total wattage of the LED light sheets is 80W, the power supply should be rated at least 100W.

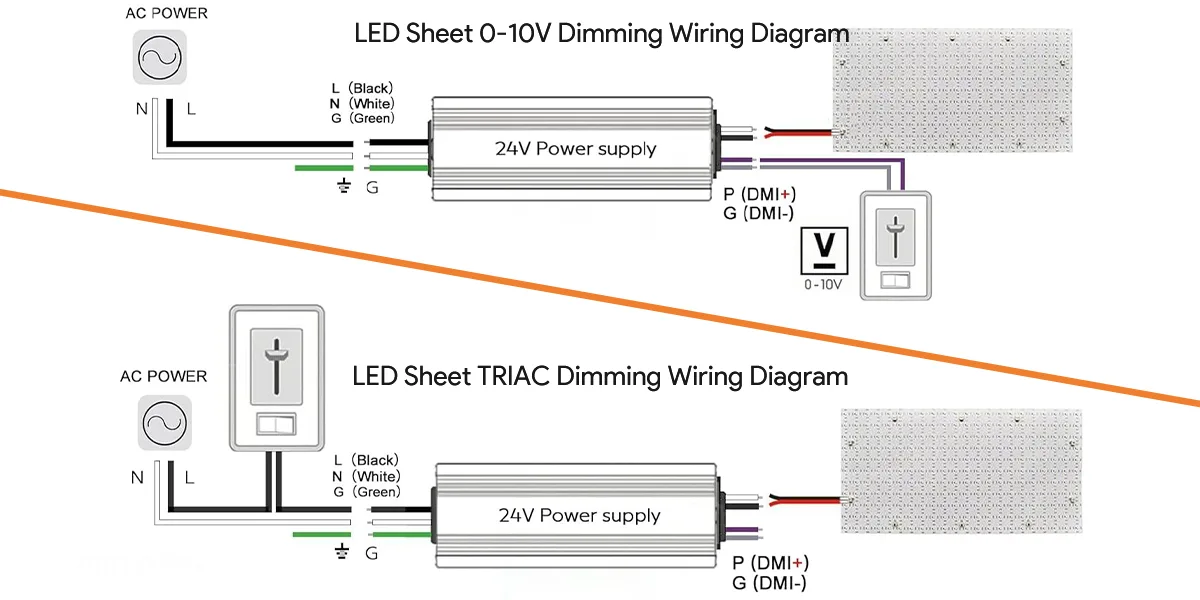

Furthermore, dimming functionality is another critical factor during procurement. For projects requiring diverse ambiance or energy-saving control, select LED light sheets, power supplies, and controllers that support 0-10V, PWM, DALI, or DMX. Commercial buyers should proactively discuss power supply interfaces and dimming compatibility with suppliers to avoid future integration complications.

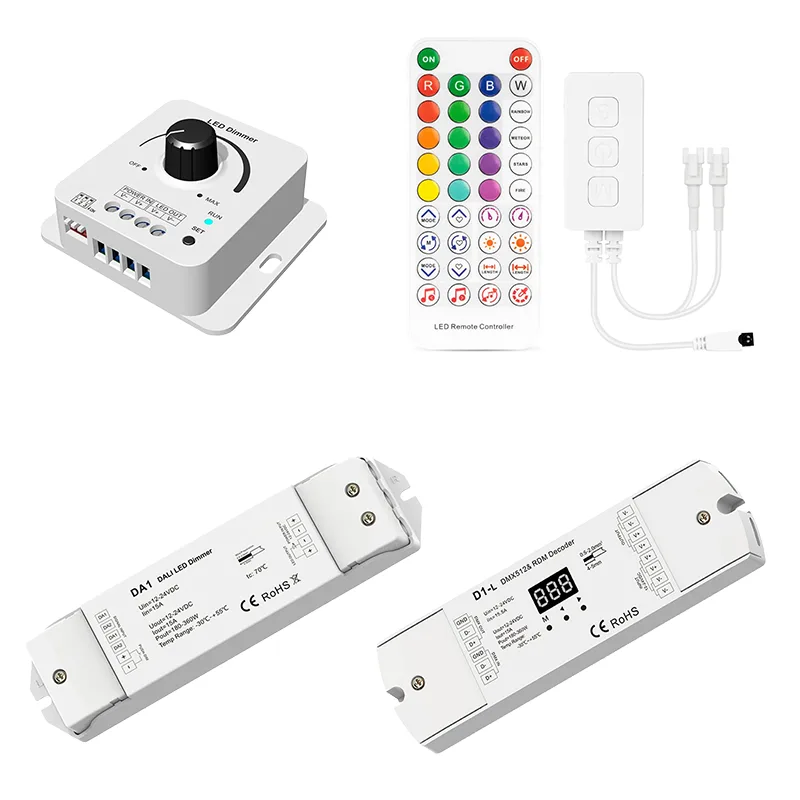

Connecting the Controller

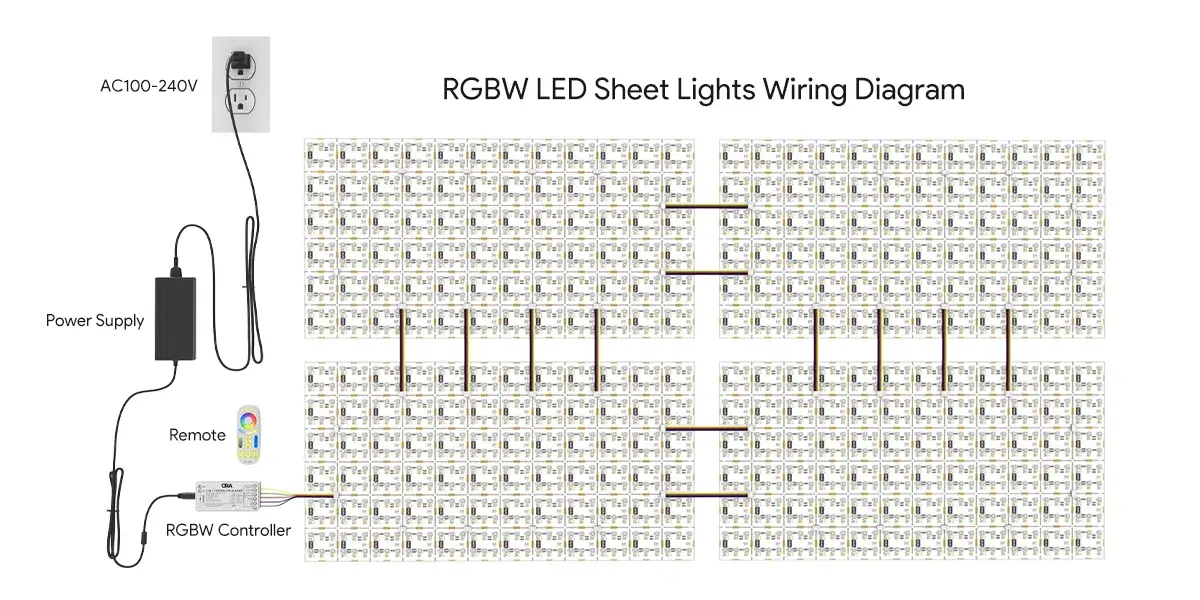

If your LED sheet requires monochromatic lighting, simply connect the power supply to the sheet’s positive and negative terminals. However, RGB or RGBW LED sheets necessitate an additional LED 컨트롤러.

• LED Dimming Controller: Suitable for mono LED sheets requiring brightness adjustment, enabling stepless dimming via knobs or remote control.

• RGB/RGBW Controller: Designed for multicolor LED sheets, supporting color changes, gradients, flashing effects, and integration with smart control platforms via DMX, Bluetooth, or WiFi.

When connecting, first verify the polarity alignment between the power supply output terminals, the circuit board pads, and the controller input terminals to prevent reverse polarity.

Commissioning and Testing

After completing all power and controller connections, proceed to commissioning:

1. Initial Power-Up: Briefly activate power to verify proper illumination of the light sheet.

2. Brightness Test: Inspect brightness uniformity across different areas, checking for front-bright/back-dim patterns caused by voltage drop.

3. Functionality Test: For RGB controllers, individually test red, green, blue, and color-mixing modes to ensure all output channels function correctly.

4. Safety Inspection: Finally, touch the surface of the power supply and light sheet to confirm no excessive heat is present. If overheating occurs, check power supply compatibility and heat dissipation conditions.

With proper power configuration and control system settings, LED sheet lights not only deliver stable illumination but also produce diverse lighting effects tailored to various commercial and residential applications.

LED Sheet Lights Installation Process

For individual users, mastering basic LED light sheet cutting and installation techniques enables effortless home decor or display cabinet upgrades. For engineering projects and commercial lighting, greater emphasis must be placed on power supply matching, connection methods, and heat dissipation conditions to ensure uniform brightness and long-term reliability in large-scale applications.

Safety & Maintenance Tips

• During wiring, clearly distinguish positive and negative terminals to prevent reverse connection.
• When connecting multiple light sheets, ensure sufficient power supply capacity to avoid overloading.
• After installation, periodically inspect the light sheets for loosening, detachment, or overheating.
• In humid environments or outdoor applications, use waterproof LED sheet lights and ensure all wiring connections are properly sealed.

Through proper surface preparation, appropriate installation methods, and safe wiring practices, LED sheets can operate reliably across various applications while maintaining excellent visual performance.

Troubleshooting

Even when properly handled during cutting, installation, and use, LED sheet lights may occasionally encounter issues. If the light sheet malfunctions, avoid rushing to replace it—many problems can be resolved through simple troubleshooting. Below are common faults and their corresponding solutions:

1.  Light Sheet Remains Completely Dark

2. Partial Area Not Lighting

3. Flickering/Flashing Light

4. Overheating Light Sheets

5. Color Inconsistency (Common in RGB Sheet Lights)

By troubleshooting these common issues, most installation faults can be resolved quickly without requiring complete replacement of sheet lights or power supplies, thereby saving costs and shortening project timelines.

결론

As a new generation of lighting products, LED sheet lights have gained widespread adoption across various fields—including advertising light boxes, retail displays, and hotel and office space decoration—thanks to their ultra-thin design, uniform illumination, customizable cutting, and flexible installation.

In project implementation, success hinges not only on the product itself but also on scientific power supply planning, reliable installation methods, and professional commissioning and maintenance. Proper preliminary preparation reduces installation complexity, enhances lighting effects, and ensures long-term stable and reliable operation of the light sheets.

다음을 찾고 계신다면 LED 시트 조명 that combine quality assurance with flexible customization, contact SignliteLED. We offer UL/ETL/CE-compliant sheet lighting products, OEM/ODM customization, and power supply and control solutions. For large-scale procurement, we balance cost-effectiveness with delivery time guarantees, empowering your commercial and engineering projects to achieve superior lighting performance.
