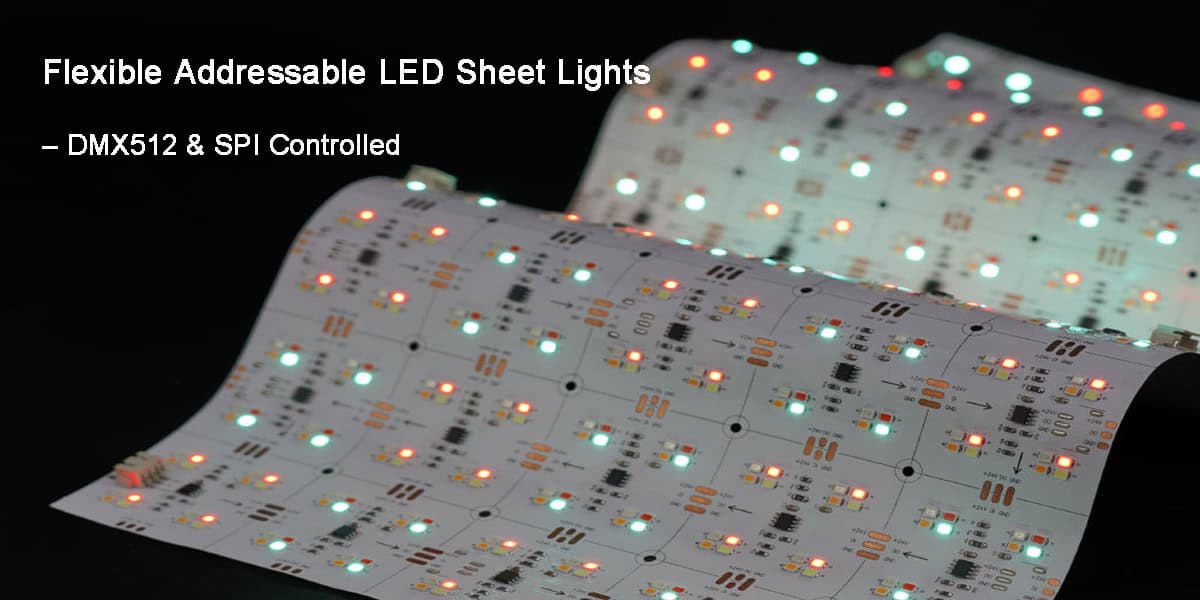

Flexible LED Sheet Lights Addressable Pixel with DMX512 and SPI RGB/RGBW for Architectural Lighting

Imagine walking into a modern gallery, a sleek office lobby, or a cutting-edge exhibition space where the walls themselves seem alive with color. For architects, lighting designers, exhibition planners, and commercial space owners, this is exactly the challenge they face: traditional rigid lighting panels often cannot deliver dynamic effects, are difficult to install, or produce uneven illumination. That’s where Flexible LED Sheet Lights come in—ultra-thin, bendable panels powered by addressable pixel LEDs. Unlike conventional rigid panels, these sheets combine flexibility, cuttability, and uniform illumination with advanced control options like DMX512 and SPI, offering both aesthetic freedom and engineering reliability.

With RGB and RGBW pixel-level control, designers and architects can create immersive environments that range from subtle ambient glows to dynamic visual storytelling. Whether for facade lighting, interior accents, or interactive installations, flexible LED sheet lights bring static spaces to life while making it easy for professionals to get the exact lighting effects they want—without the usual headaches.

Core Features and Control Options of Flexible LED Sheet Lights

Engineering Features of Addressable LED Sheet Lights

Instead of simply being thin and flexible, modern addressable LED sheet lights are engineered with advanced thermal management, uniform current distribution, and pixel precision to meet the needs of architectural and commercial projects. Each sheet is built on a multi-layer flexible PCB, which minimizes voltage drop across the surface and ensures consistent brightness even in large-scale layouts.

The pixel structure is designed for RGB and RGBW mixing, allowing for accurate white balance in addition to rich color effects—a crucial factor in façade lighting and high-end retail environments. Thanks to optimized optical spacing, these sheets can achieve shadow-free backlighting behind acrylic, glass, or fabric panels, reducing hotspots that are common in less advanced solutions.

Unlike conventional rigid panels, the cuttable and connectable design of these sheets supports modular installation, enabling seamless integration into both small-scale decorative elements and large illuminated surfaces without sacrificing light quality.

Control Options: DMX512 and SPI

Flexible addressable LED sheet lights stand out because they are compatible with both DMX512 and SPI control systems, allowing designers to select the right protocol depending on project requirements.

• DMX512 Integration
  Originally developed for stage lighting, DMX512 has become the global standard for professional architectural and entertainment lighting. With up to 512 channels per universe, it allows precise pixel addressing and synchronization across multiple sheets or even entire building façades. For large installations where stability, interoperability, and long-distance signal transmission are critical, DMX512 is the preferred choice.
• SPI Control
  SPI, on the other hand, is widely used in pixel lighting and smaller-scale dynamic effects. Its high-speed serial communication makes it efficient for real-time animations, gradients, and color transitions. While SPI does not support the same large-scale universes as DMX512, it excels in responsive control for compact projects, signage, or interactive installations.

By offering both protocols, flexible LED sheet lights can seamlessly adapt to different environments—DMX512 for complex architectural or stage systems, and SPI for creative, pixel-driven effects in compact designs.

For more information on DMX, SPI, and detailed comparisons, please refer to the following blogs:
How to Control SPI LED Strip with DMX Control System
Ultimate 12V/24V RGB/RGBW LED Strips Waterproof DMX Controlled Lighting for Pros
Comparing DMX and SPI Control Options for RGB LED Neon Flex
What is DMX RGBW LED Strip Light?

Product Details: Flexible LED Sheet Lights

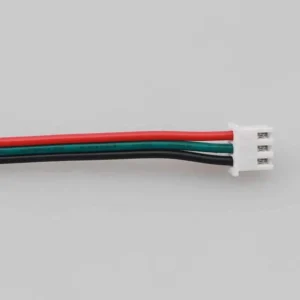

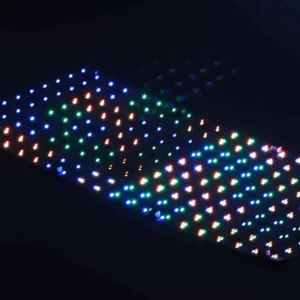

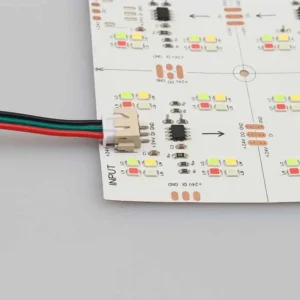

SPI Pixel LED Sheet

Each 503.5 × 235 mm flexible LED sheet features 800 SMD2835 LEDs arranged as 50 addressable RGBW pixels. Operating at 24 VDC with model-dependent power up to ≈92 W per sheet, these sheets can be cut in both directions and folded over edges. On-board plug-and-play connectors allow seamless linking between panels, and mounting is easy via 3M adhesive backing or screw-mount points.

This version is designed for SPI pixel controllers, enabling smooth pixel mapping, dynamic animations, and scene playback across complex lighting installations. It is ideal for architectural lighting, decorative panels, and interactive displays.

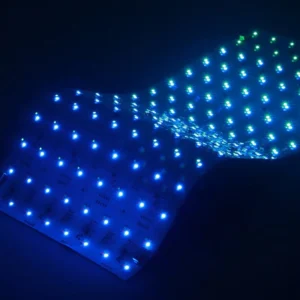

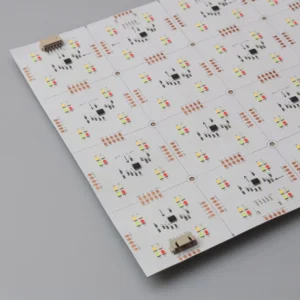

DMX512 Pixel LED Sheet

This flexible LED sheet contains 512 SMD2835 LEDs arranged as 32 RGBW pixel segments per sheet (16 LEDs per pixel) for smooth gradients and precise mapping. Running on 24 VDC with model-dependent power (≈5–32 W per sheet), it delivers CRI 90+ light with CCT options from 1800 K to 6000 K. The sheet can be cut in both directions and bent up to 90°, with easy installation via 3M adhesive backing or screw-mount points.

Native DMX512 control allows direct addressing without an external decoder. Onboard PI/PO plug-and-play connectors carry both power and A/B/GND data, enabling daisy-chaining between panels and seamless scene playback across all pixels. This makes it ideal for large-scale architectural façades, commercial signage, and dynamic display installations.

Applications of Flexible Addressable LED Sheet Lights

Flexible Addressable LED Sheet Lights unlock dynamic architectural lighting possibilities beyond traditional static illumination. With DMX512, SPI, or WS2812 control, each pixel can be mapped, sequenced, and synchronized for advanced visual effects in professional projects.

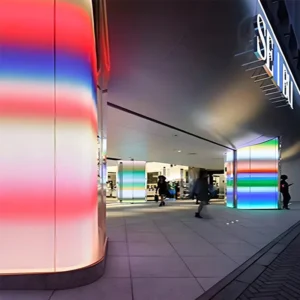

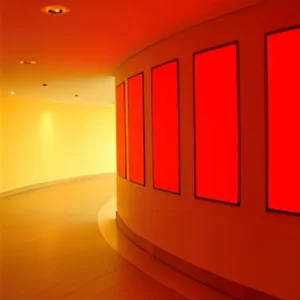

Architectural Facades & Media Walls

Controlled by DMX512, large-scale façade projects can display pixel mapping effects, color-changing gradients, and synchronized animations across entire building surfaces—ideal for dynamic architectural lighting.

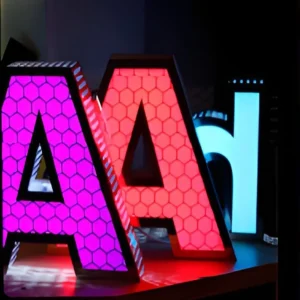

Retail & Commercial Installations

Addressable RGB sheets deliver programmable pixel effects for signage, display walls, and product showcases, creating RGB backlighting that enhances visual impact and brand identity.

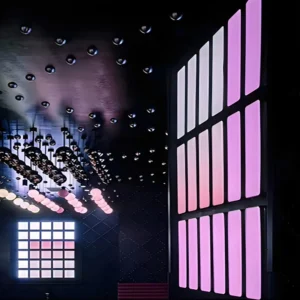

Immersive Environments & Entertainment Venues

SPI-controlled sheets enable addressable pixel lighting for museums, exhibitions, themed attractions, and event spaces, supporting real-time interactive lighting installations.

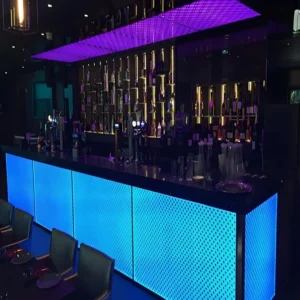

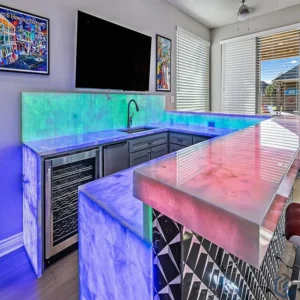

Custom Creative Lighting Designs

With their cuttable and bendable structure, flexible addressable sheets allow designers to build custom installations with addressable RGB backlighting and flowing animations that respond to control systems.

Installation Tips & Best Practices for Addressable LED Sheet Lights

Installing Flexible Addressable LED Sheet Lights correctly ensures long-term stability, uniform brightness, and smooth pixel effects. Below are practical tips often used by engineers in real projects.

Surface Preparation

Always clean the mounting surface thoroughly. Dust, grease, or uneven spots reduce adhesive strength. A flat, dry surface also helps heat dissipation.

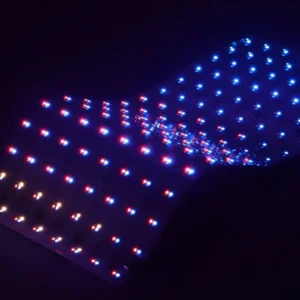

Cutting & Bending

Cut only along the printed cut lines. Sheets can bend gently up to 90° or fold over edges, but avoid sharp creases or stretching, which may break circuits.

Linking & Wiring

Use the onboard plug-and-play connectors for daisy-chaining. Check connector orientation and secure data lines, especially when working with DMX512 or SPI controllers.

Mounting Methods

Sheets can be fixed with 3M adhesive or screw-mount points. For permanent projects, combining both methods gives extra stability.

Power & Load Considerations

Distribute power evenly to prevent voltage drop. Avoid overloading one sheet. For large setups, add power injection points every few sheets to maintain uniform brightness.

Avoid Common Issues

Don’t bend sheets sharply or twist connectors.

Keep IP20 sheets away from moisture.

Always check polarity and data line connections.

Controller Setup

Before installing multiple sheets, test one panel with the controller. Configure DMX addresses or SPI data mapping in advance to avoid troubleshooting later.

Signal Integrity

For long DMX runs, always add a terminator (120 Ω resistor) at the end of the line. With SPI, keep cable runs short—engineers usually recommend under 5 meters between controller and first sheet. Use amplifiers for larger arrays.

Synchronization & Software

Flexible sheets work with software like Madrix, Resolume, or other DMX/SPI platforms. Make sure the software’s pixel count matches the actual layout; otherwise effects will misalign. Always run a small test before going live.

For detailed step-by-step guidance, visit our installation guide: How to Cut, Install and Set Up LED Sheet Lights

Flexible Addressable LED Sheet Lights vs. LED Strip Lights

When planning a lighting project, it’s important to choose the right type of LED solution. Both Flexible Addressable LED Sheet Lights and traditional LED strip lights have their place, but their characteristics differ significantly in terms of pixel control, installation, and performance.

Form Factor & Installation

Flexible LED sheet lights are large, bendable panels that can be cut and linked, making them ideal for curved surfaces or complex layouts. In contrast, LED strips are narrow linear strips, mainly suitable for straight installations and simple decorative lighting.

Pixel Control & Visual Effects

Flexible LED sheet lights support pixel-level control through DMX512, SPI, or WS2812, enabling smooth animations, gradients, and interactive effects. Traditional LED strips are mostly static RGB or single-color, with limited pixel control unless paired with advanced controllers.

Brightness, Color Quality & Reliability

Flexible LED sheet lights offer high brightness, CRI 90+ options, and uniform illumination across the panel, ensuring professional-quality lighting. LED strips may show visible LED spots at close distances, with lower color uniformity and CRI. Flexible sheets also typically have longer lifespans (>35,000 hours) and warranties (3 years), providing higher long-term reliability.

Application Flexibility & Project Scale

Flexible LED sheet lights excel in architectural façades, media walls, interactive installations, and retail displays where precise pixel effects are needed. LED strips are more suitable for accent lighting, signage backlighting, and simple decorative lines.

Energy Efficiency & Cost Considerations

Flexible LED sheet lights operate efficiently on 12V or 24V DC with low power consumption per pixel, making them cost-effective for large-scale installations despite higher upfront cost. LED strips have lower initial cost but may require additional controllers and wiring for advanced effects, reducing overall efficiency in complex projects.

Detailed Comparison Table

Feature	Flexible Addressable LED Sheet Lights	LED Strip Lights
Form Factor	Large bendable panels, cuttable, linkable for curved or complex surfaces	Narrow linear strips, mostly straight, limited flexibility
LED Type	SMD5050 / SMD2835, individually addressable pixels	SMD2835 or SMD5050, mostly RGB or single-color
LED Quantity	100–800 LEDs per sheet (model dependent)	60–120 LEDs per meter
Pixel Control	DMX512, SPI, WS2812 compatible	Mostly static RGB or single-color; pixel control limited
Color Options	RGB, RGBW, RGBIC / RGB、RGBW、RGBIC	Single color or RGB
Voltage	DC 12V/ 24V	DC 5V/ 12V/ 24V
Power	13–92W per sheet (model dependent)	~7–15W per meter
Brightness	20 lm per LED, uniform output	5–10 lm per LED, may show dot effect
Beam Angle	120° / 170°	120°
Installation	Adhesive backing or screw mount; bendable, cuttable	Adhesive backing or clips; mostly flat
Lifespan	>35,000 hours	20,000–30,000 hours
Warranty	3–5 years	1–3 years
Applications	Architectural façades, media walls, interactive installations, retail displays	Accent lighting, signage backlighting, simple decorative lines
Advantages	Pixel-level effects, flexible layout, high visual quality	Low cost, easy for simple applications

For a more detailed comparison of LED sheet lights and LED strip lights, learn more here.

Frequently Asked Questions (FAQ)

Why Choose Flexible Addressable LED Sheet Lights

Unlike rigid panels, Flexible Addressable LED Sheet Lights provide bendable design, pixel-level RGB/RGBW effects, and seamless DMX512/SPI control—making them the smarter choice for architectural lighting, creative displays, and commercial projects.

At SignliteLED, we back our products with OEM & ODM customization, 3–5 years warranty, and full technical support to ensure your project runs smoothly from design to installation.
