O guia completo para iluminação linear LED para projetos comerciais e arquitetônicos (2026)

LED linear lighting has become one of the most widely used lighting solutions in modern commercial and architectural projects. From office environments and retail stores to large-scale buildings, linear lighting systems are replacing traditional fluorescent and panel lighting due to their ability to deliver uniform illumination, flexible layouts, and clean architectural integration.

Unlike conventional lighting, which is based on point sources, LED linear lighting is designed as a continuous system. This allows designers to create seamless lighting lines that improve both visual comfort and spatial perception. In commercial environments, this directly impacts productivity, customer experience, and operational efficiency.

However, selecting the right LED linear lighting system is not straightforward. Factors such as glare control, color temperature, illuminance levels, installation methods, and control systems all play a critical role in overall performance.

This guide provides a complete, structured understanding of LED linear lighting systems, including types, components, performance standards, applications, and how to choose the right solution for commercial and architectural projects.

resposta rápida

LED linear lighting is a continuous lighting system that uses LED strips or modules integrated into aluminum profiles with diffusers and drivers to deliver uniform, glare-controlled illumination for commercial and architectural environments.

Principais conclusões

• LED linear lighting provides continuous and uniform illumination across large spaces.
• It is widely used in offices, retail environments, and architectural lighting projects.
• Low glare (UGR <19) is essential for visual comfort in commercial spaces.
• System performance depends on LED quality, diffuser design, and layout planning.
• Proper installation and control systems improve efficiency and long-term reliability.

What Is LED Linear Lighting?

LED linear lighting refers to lighting fixtures designed in long, continuous forms rather than individual point sources such as bulbs or downlights. These systems are engineered to create seamless lines of light that improve brightness consistency and reduce shadows.

A complete LED linear lighting system is made up of several integrated components that work together to determine performance.

componente	Typical Specification	Função
LED strip / module	8–20W/m, 120–240 LEDs/m	Light generation
Fita LED COB	10–15W/m, >480 chips/m	Dot-free illumination
Perfil de alumínio	6063-T5 alloy	Dissipação de calor
difusor	Opal / PMMA (70–90% transmission)	Light distribution
Controlador LED	PF >0.9, flicker-free	Power stability

Each component directly affects the final output. For example, a high-density LED strip combined with a quality diffuser produces a smooth, continuous light line, while poor components result in visible dots and uneven illumination.

To understand real-world applications of LED linear lighting systems, see LED linear lighting applications in commercial and architectural projects

For a detailed breakdown of system types, refer to LED linear lighting types and applications for modern architecture projects

LED Linear Lighting Chart

This simplified chart is widely used by designers for quick selection based on application.

tipo de iluminação	Saída típica	Melhor utilização
2700K–3000K warm linear	400–800 lm/m	Hospitality, residential
4000K neutral linear	600–1200 lm/m	Offices, retail
5000K–6500K cool linear	800–1800 lm/m	Industrial, outdoor

This type of chart is important because it aligns lighting selection directly with application needs rather than guesswork.

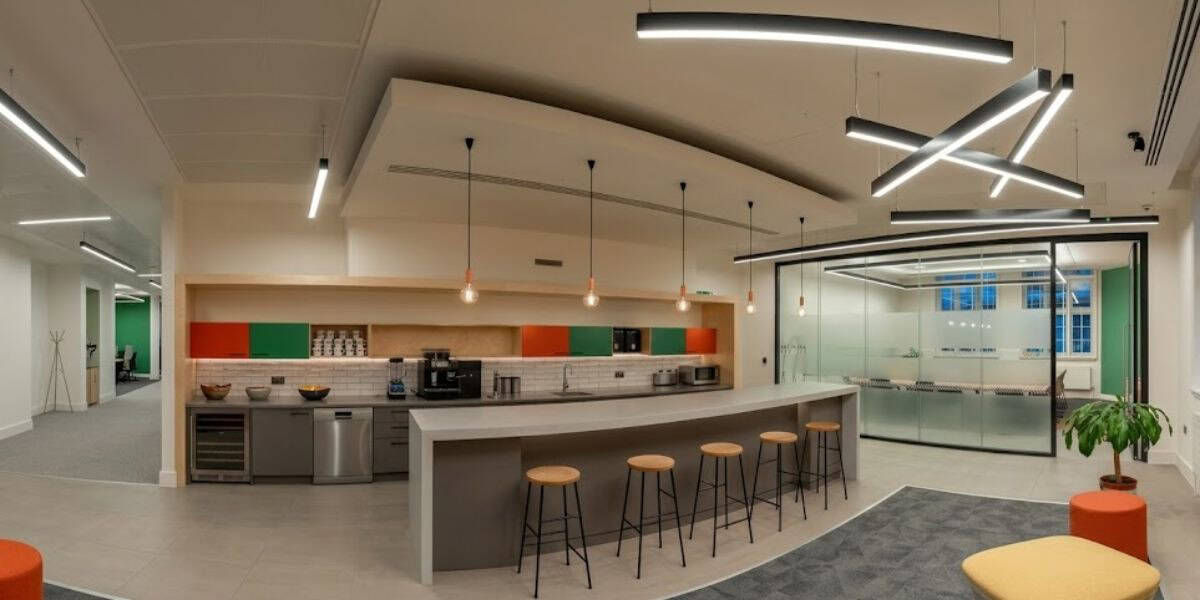

Why LED Linear Lighting Is Popular in Modern Architecture

LED linear lighting has become a core element in architectural design because it combines functionality with aesthetics.

The ability to create continuous lighting lines allows architects to integrate lighting directly into ceilings, walls, and structural elements. This results in cleaner visual designs and improved spatial perception.

Another key advantage is flexibility. Linear lighting systems can be recessed, surface-mounted, or suspended, making them adaptable to different environments and construction conditions.

Energy efficiency also plays a major role. With luminous efficacy typically ranging from 100–160 lm/W, LED linear lighting significantly reduces power consumption compared to traditional systems.

Types of LED Linear Lighting Systems

LED linear lighting systems are categorized based on installation and design requirements. Each type offers specific advantages depending on the project.

Each type of LED linear lighting is selected based on architectural design intent, ceiling structure, and lighting performance requirements. In commercial projects, the choice of installation method directly affects glare control, maintenance accessibility, and overall lighting uniformity.

Tipo	Método de instalação	Aplicações comuns
Recessed linear	Built into ceiling/wall	Offices, hotels
montado na superfície	Direct installation	Renovation projects
linear suspenso	Hanging systems	escritórios abertos
Curved / custom	Flexible profiles	Architectural design

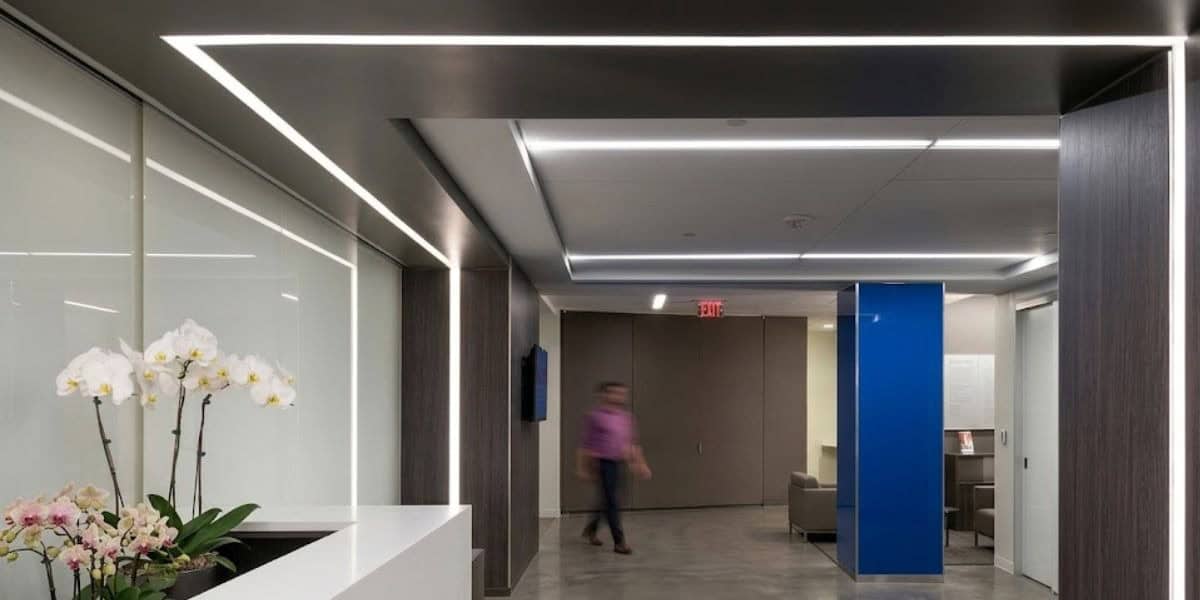

Recessed Linear Lighting

Recessed linear lighting is integrated into ceilings or walls, creating a clean and minimal appearance where only the light output is visible. This reduces visual clutter and improves glare control.

It is widely used in offices and high-end commercial environments where design consistency is critical.

For design integration techniques, see Hidden architectural lighting using linear lighting systems

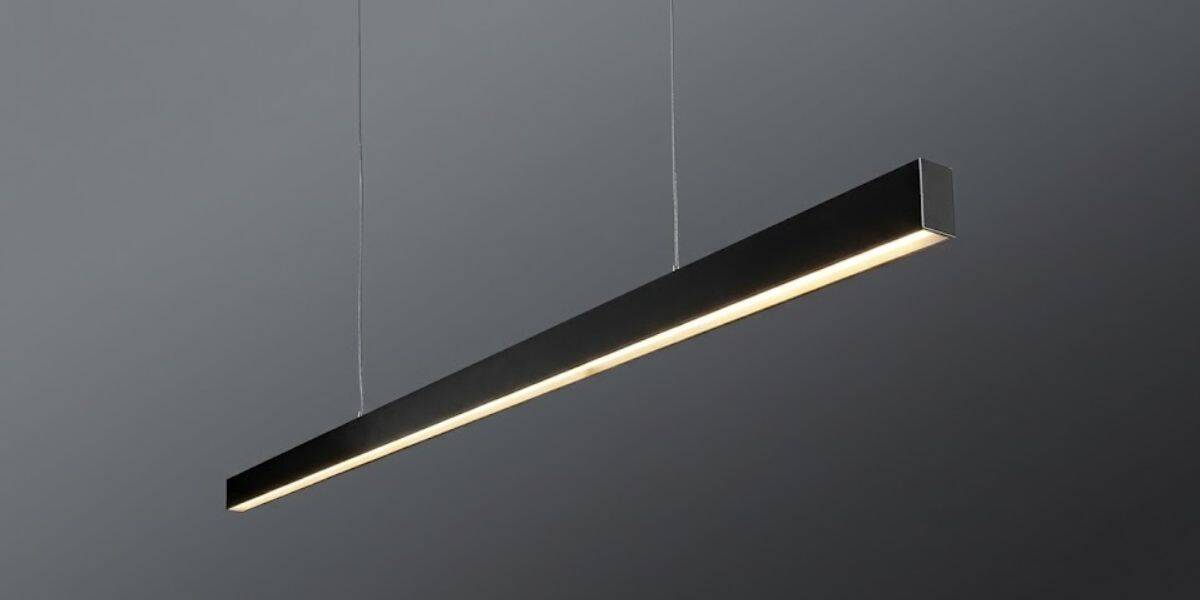

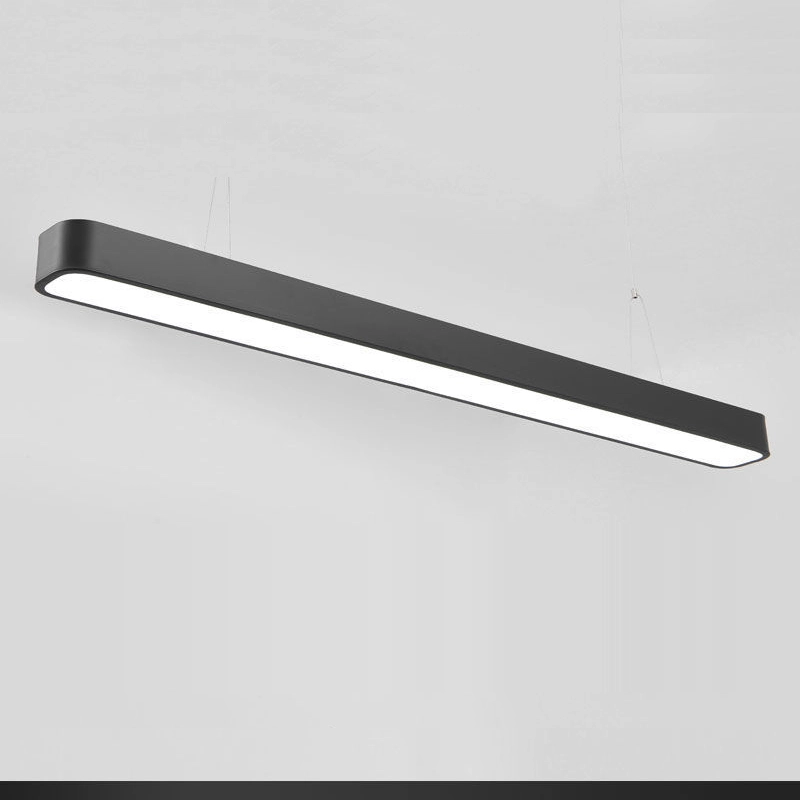

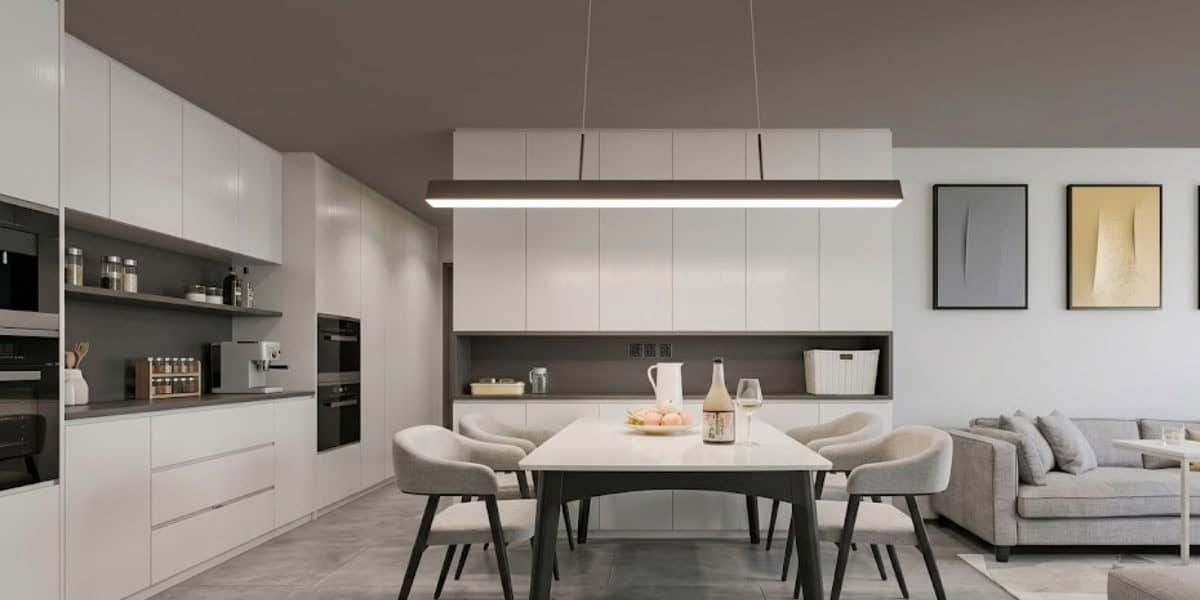

Suspended Linear Lighting

Suspended systems hang from ceilings and act as both functional lighting and design elements. They are commonly used in open offices and commercial spaces with higher ceilings.

They can provide direct and indirect lighting, improving brightness balance.

For advanced office solutions, explore acoustic LED linear pendant lighting for modern office environments

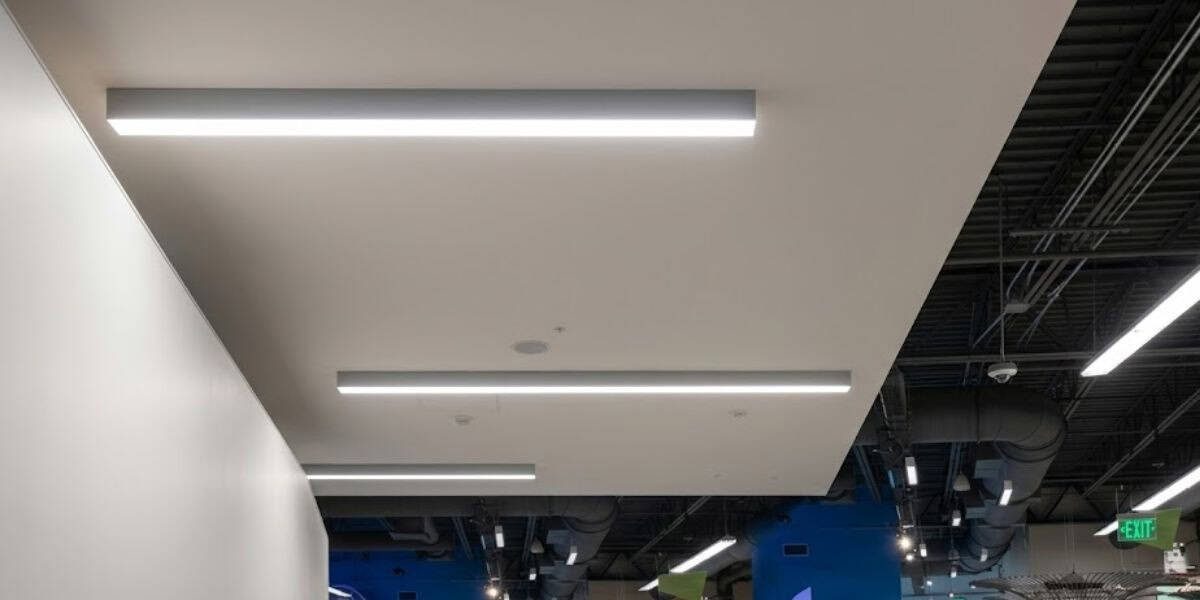

Surface Mounted Linear Lighting

Surface-mounted fixtures are installed directly onto ceilings or walls. They are ideal for retrofit or renovation projects where recessed installation is not possible.

They offer easy installation but are more visible compared to recessed systems.

For detailed comparison of installation types, see: Recessed vs suspended vs surface mounted LED linear lighting for commercial projects

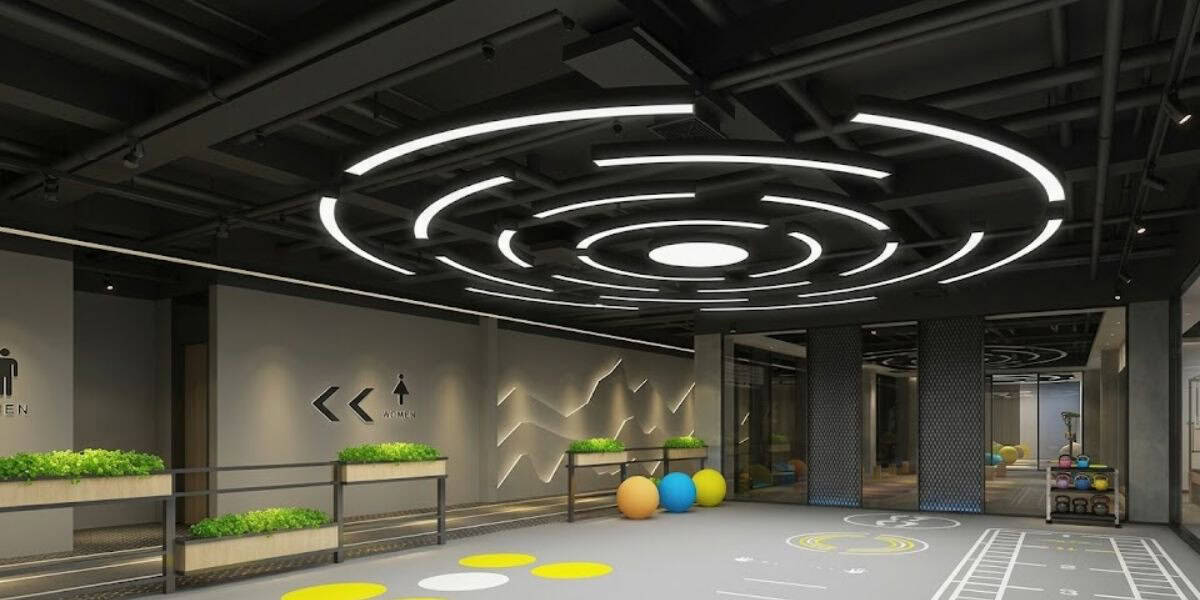

Curved and Custom Linear Lighting

Curved linear lighting uses flexible profiles to follow architectural shapes such as curves, circles, or custom designs.

This type is increasingly used in modern architecture to create unique visual effects.

For flexible design applications, read Bendable LED linear lighting systems for curved architectural designs

To explore custom shapes, see LED profile lighting for linear and curved custom lighting designs

Lighting Performance Requirements (Critical for Commercial Projects)

In commercial lighting, performance is defined by measurable parameters rather than visual perception alone. Unlike residential lighting, commercial and architectural projects require precise control over glare, brightness, color accuracy, and energy efficiency to ensure both functionality and long-term reliability.

Each parameter directly affects user experience, compliance with lighting standards, and operational performance.

Parâmetro	Valor recomendado	padrão	impacto
ugr	<19 (office)	EN 12464-1	Reduces glare
IRC	≥80 (standard), ≥90 (retail)	Lighting spec	Product visibility
iluminância	300–500 lux (office)	Lighting standards	Task clarity
CCT	3000K–5000K	Application-based	Comfort + focus
Eficiência	100–160 lm/W	LED systems	Energy saving
Cintilação	<5%	IEEE standard	Eye comfort

Key Performance Factors Explained

UGR (Unified Glare Rating)

UGR is one of the most critical factors in office and commercial lighting. A value below 19 ensures that light does not cause discomfort or eye strain during prolonged use. Poor glare control can reduce productivity and lead to visual fatigue, especially in work environments.

CRI (Índice de reprodução de cores)

CRI determines how accurately colors appear under artificial lighting. In retail environments, a higher CRI (≥90) is essential to ensure products look natural and appealing. In offices, CRI ≥80 is generally sufficient for daily tasks.

Iluminância (níveis de luxuria)

Illuminance defines how much light is available on a working surface. Insufficient lux levels reduce visibility and efficiency, while excessive brightness can create discomfort. Proper lux balance is essential for task performance and compliance with lighting standards.

CCT (Color Temperature)

Color temperature affects both visual comfort and task performance. Neutral white (around 4000K) is widely used in offices because it provides balanced brightness, while cooler temperatures are used in high-visibility environments.

Energy Efficiency (lm/W)

Higher luminous efficacy means more light output with lower power consumption. In large commercial projects, efficient systems significantly reduce operational costs over time.

Flicker Control

Low flicker (<5%) is essential for eye comfort and long-term health. Poor-quality drivers can introduce flicker, which may not always be visible but can still cause fatigue and headaches.
For detailed performance standards and implementation, refer to:

UGR requirements for LED linear lighting systems in commercial environments

Anti-glare low UGR LED linear lighting solutions for office applications

Tunable white LED linear lighting systems for dynamic commercial spaces

Modular Linear Lighting Systems

Modular linear lighting systems are widely used in commercial projects due to their flexibility, scalability, and ease of maintenance.

Unlike traditional fixtures, modular systems allow individual components to be replaced without removing the entire fixture.

Caraterística	benefício
Replaceable modules	Easy maintenance
Scalable design	Flexible layouts
longa vida útil	Reduced cost
Upgrade capability	Future-proof system

For modular solutions, refer to:

How to replace LED linear modules for old fixtures

Scalable customized LED linear modules

Linear Lighting Layout Design

Proper layout design ensures uniform illumination and reduces glare in commercial environments.

Fator	Impacto do projeto
Fixture spacing	Uniform lighting
Mounting height	Light distribution
Ângulo do feixe	Cobertura
Alignment	Task efficiency

For layout strategies, see:

LED linear lighting layout design for optimal office illumination

Linear Light Manufacturers

Choosing the right LED linear lighting manufacturer is critical for ensuring product quality, performance consistency, and long-term reliability in commercial and architectural projects.

Unlike standard lighting products, linear lighting systems often require customization, precise optical engineering, and project-specific configurations. This makes supplier selection a key factor in overall project success.

Manufacturer Evaluation Criteria

Fator	O que verificar	Porque é que é importante
Optical design capability	Lens quality, diffuser type, glare control (UGR)	Ensures visual comfort and lighting performance
Customization ability	Length, shape, color temperature (CCT), control options	Supports project-specific design requirements
Certificações	CE, RoHS, UL, LM80	Ensures compliance with international standards
Project experience	Office, retail, commercial lighting projects	Indicates reliability and real-world performance
Production capacity	Lead time, scalability, OEM/ODM support	Ensures smooth project delivery

A professional LED linear lighting manufacturer not only supplies products but also provides technical support, lighting design assistance, and customized solutions based on project requirements.

To explore supplier comparisons and selection criteria in detail, refer to Top LED linear lighting manufacturers for commercial projects.

Custom Linear Lighting Solutions

Modern commercial and architectural projects often require lighting systems that go beyond standard fixtures. Custom LED linear lighting allows designers and engineers to achieve precise integration, performance control, and architectural alignment.

In large-scale projects, customization is not optional. It ensures that lighting systems match building geometry, meet performance requirements, and support advanced control systems.

Key Customization Options in LED Linear Lighting

Custom Feature	What It Includes	Project Benefit
Length customization	Exact fixture sizing based on layout	Seamless installation and continuous lighting lines
Custom shapes	Curved, angled, circular, or geometric designs	Matches architectural intent and enhances aesthetics
CCT tuning	2700K–6500K or tunable white options	Improves comfort and application-specific performance
Optical control	Diffusers, beam angles, anti-glare design	Better visual comfort and reduced glare
Smart control integration	DALI, sensors, dimming systems	Energy efficiency and intelligent lighting control

Custom LED linear lighting is widely used in offices, retail environments, hospitality projects, and architectural lighting where standard products cannot meet design or performance requirements.

For tailored project solutions, explore custom suspended LED linear ceiling lighting solutions

LED Linear Lighting Design Guidelines

Designing a linear lighting system requires balancing technical performance with visual comfort.

Key Design Factors

• High-density LED strips (120–240 LEDs/m) ensure uniform lighting

• Diffusers with 70–90% transmission improve softness

• Deep profiles (60–100mm) reduce glare

• Proper spacing ensures consistent brightness


Illuminance Reference Table

Espaço	Lux recomendado
Office workspace	300-500 lux
Retalho	500-1000 lux
sala de reuniões	300-500 lux
Corridor	100-200 lux
Warehouse	200–300 lux

These values ensure that lighting matches the functional requirements of each environment.

Smart Lighting and Control Systems

Modern LED linear lighting systems increasingly integrate smart control technologies to improve energy efficiency, user comfort, and system flexibility. In commercial and architectural projects, lighting is no longer static. Instead, it is dynamically controlled based on occupancy, daylight availability, and user preferences.

Smart lighting systems enable centralized management, automation, and real-time adjustments, making them essential for modern offices, retail environments, and large-scale buildings.

Sistema	Função	benefício
dáli	Centralized control	automação
Branco sintonizável	Adjustable CCT	Comfort
Sensors	Motion / daylight sensing	Energy saving

Key Smart Lighting Technologies Explained

DALI (interface de iluminação endereçável digital)

DALI is one of the most widely used lighting control protocols in commercial buildings. It allows individual control of each luminaire, enabling features such as dimming, scheduling, and zoning. This improves energy efficiency and allows facility managers to control large lighting systems from a central interface.

For system integration, see:

DALI controlled LED linear lighting systems for modern office spaces

Tunable White Lighting

Tunable white systems allow dynamic adjustment of color temperature throughout the day, typically ranging from warm white (2700K–3000K) to cool white (5000K–6500K). This supports circadian lighting strategies, helping improve occupant comfort, focus, and well-being in office environments.

Sensors (Occupancy & Daylight Control)

Sensors automatically adjust lighting based on real-time conditions. Motion sensors turn lights on or off depending on occupancy, while daylight sensors reduce artificial lighting when natural light is sufficient. This significantly reduces energy consumption and extends system lifespan.

Why Smart Lighting Matters in Commercial Projects

In large-scale commercial environments, smart lighting systems are not optional. They directly impact operational efficiency, maintenance costs, and user experience.

As principais vantagens incluem:

• Reduced energy consumption through automation

• Improved visual comfort with adaptive lighting

• Centralized control for large installations

• Integration with building management systems (BMS)


By combining LED linear lighting with intelligent control systems, designers can create lighting environments that are both efficient and responsive to user needs.

Applications of LED Linear Lighting

LED linear lighting is widely used across multiple commercial and architectural environments due to its ability to provide continuous, uniform illumination.

In office environments, it improves task visibility while maintaining low glare levels, directly impacting productivity.

In retail spaces, it enhances product visibility and creates structured lighting layouts that guide customer attention.

In architectural applications, linear lighting is used to highlight structural elements and create clean visual lines.

Aplicação	Objetivo
iluminação do escritório	Productivity & comfort
iluminação de varejo	Product visibility
Supermarkets	Large area illumination
Iluminação arquitetónica	Design integration

For real-world applications, see:

LED linear lighting for modern office environments

Acoustic LED linear pendant lighting for office spaces

Where to use LED linear lighting in commercial projects

How to Choose LED Linear Lighting (Step-by-Step)

Selecting the right LED linear lighting system requires a structured, project-based approach.

Step 1: Define the Application

Identify whether the project is office, retail, industrial, or architectural. Each application has different requirements for brightness, glare, and color temperature.

Step 2: Select Color Temperature (CCT)

• 3000K → Warm environments (hospitality, retail ambiance)

• 4000K → Balanced lighting (offices, commercial spaces)

• 5000K+ → High visibility (industrial, task areas)


Step 3: Evaluate Lighting Performance

• UGR <19 for office environments

• CRI ≥80 (≥90 for retail)

• Lux levels based on application


Step 4: Choose Installation Type

• Recessed → Clean architectural integration

• Suspended → Open ceiling environments

• Surface-mounted → Retrofit projects

Step 5: Consider Smart Control Systems

• DALI for centralized control

• Tunable white for dynamic lighting

• Sensors for energy efficiency


Step 6: Check System Scalability & Maintenance

Choose modular systems that allow easy replacement and upgrades.

This structured selection approach ensures that LED linear lighting systems are optimized for both performance and long-term operational efficiency in commercial and architectural projects.

For modular system design, see LED linear module solutions for architectural lighting projects

Project-Based Selection Table

Tipo de projeto	CCT recomendado	ugr	Instalação	Key Focus
Escritório	4000K	<19	Suspenso / Encastrado	Conforto visual
Retalho	3000K–4000K	<22	Track / Linear	Product visibility
industrial	5000K+	<25	montado na superfície	Brilho elevado
arquitetural	3000K–4000K	controlado	Custom / Curved	Design integration

LED Linear Lighting Knowledge Hub

This guide is part of a structured LED linear lighting knowledge system covering applications, system design, performance, and commercial lighting solutions.

• LED linear lighting for modern office environments
• Where to use LED linear lighting in commercial projects
• Acoustic LED linear lighting for office spaces
• LED linear lighting types and applications for modern architecture projects
• Recessed vs suspended vs surface mounted LED linear lighting
• Bendable LED linear lighting systems
• LED profile lighting systems for custom shapes
• UGR requirements for LED linear lighting systems
• Anti-glare LED linear lighting solutions
• Tunable white LED linear lighting systems
• LED linear module solutions for architectural lighting
• How to replace LED linear modules in existing fixtures
• Scalable customized LED linear modules
• LED linear lighting layout design for office environments
• DALI controlled LED linear lighting systems
• Top LED linear lighting manufacturers for commercial projects

CTA

If you are planning a commercial or architectural lighting project, choosing the right LED linear lighting system is critical for achieving both performance and design goals.

SignliteLED provides customized LED linear lighting solutions tailored to modern projects, including flexible configurations, consistent output, and advanced control systems.

Our team supports OEM and ODM customization for large-scale commercial and architectural lighting projects.

Explore customized LED linear lighting solutions

Resumo rápido

2700K–3000K → Best for hospitality and comfort-focused environments

4000K → Ideal for offices and commercial spaces requiring clarity

5000K–6500K → Used in industrial and high-visibility environments

LED linear lighting systems provide uniform illumination, flexible installation, and better glare control compared to traditional lighting.

Conclusão

LED linear lighting has become a fundamental solution for modern commercial and architectural lighting. It combines uniform illumination, flexible design integration, and high energy efficiency.

By understanding system components, performance standards, and layout principles, designers and engineers can create lighting systems that deliver both functional performance and visual impact.

FAQ
