For commercial lighting, LED linear modules are generally preferred over LED strip lights. They provide superior thermal management, longer lifespan, higher reliability, and standardized mounting options. LED strip lights, while flexible and decorative, are mostly suitable for accent, residential, and low-power applications.

Both technologies use LED chips and low-voltage power systems, but they are designed for different purposes. โมดูลเชิงเส้น LED are typically integrated into commercial lighting fixtures, while LED strip lights are flexible lighting components often used in cabinets, architectural accents, or DIY lighting installations.

Understanding the differences between these two technologies can help lighting designers, fixture manufacturers, and project engineers choose the right solution for their applications.

Quick Answers: LED Linear Modules vs LED Strip Lights

The following quick answers explain the key differences between LED linear modules and LED strip lights for commercial lighting applications.

What is a LED linear module?

A LED linear module is a rigid printed circuit board that contains multiple LED chips arranged in a straight line. It is commonly used inside commercial lighting fixtures because it offers better heat dissipation, higher durability, and longer lifespan compared with flexible LED strip lights.
In many professional lighting systems, LED linear modules are powered by constant current LED drivers, which regulate the current through LEDs to ensure stable brightness and consistent performance.

What is the difference between LED linear modules and LED strip lights?

The main difference between LED linear modules and LED strip lights lies in their structure, electrical driving method, and typical applications. LED linear modules are rigid boards designed for commercial lighting fixtures and are often used with constant current LED drivers, providing stable brightness, better heat dissipation, and longer lifespan. LED strip lights, on the other hand, are flexible circuit boards that usually operate with constant voltage power supplies such as 12V or 24V, making them ideal for decorative, residential, or accent lighting installations where flexibility and easy installation are important.

Which is better for commercial lighting?

For most commercial lighting fixtures, LED linear modules are usually a better choice than LED strip lights because they provide superior heat dissipation, longer lifespan, and easier integration into professional lighting fixtures. LED strip lights are more commonly used for decorative or flexible lighting applications.

Can LED strip lights be used in commercial lighting fixtures?

Yes, LED strip lights can be used in some commercial lighting installations, especially for accent lighting or display lighting. However, most commercial fixtures prefer LED linear modules because they provide more stable performance and better heat dissipation.

Do LED linear modules last longer than LED strip lights?

Yes. LED linear modules typically last longer because their rigid PCB structure allows better heat dissipation. A typical LED linear module can last 50,000–100,000 hours, while many LED strip lights last 30,000–50,000 hours.

What Is a LED Linear Module and How Does It Work?

LED linear modules, also known as rigid LED boards, are widely used in commercial LED lighting fixtures. These high-performance LED modules provide excellent thermal management, long lifespan, and standardized installation options. Compared with flexible LED strips, LED linear modules deliver stable luminous output and are ideal for office, retail, and architectural lighting applications.

Unlike flexible LED strips, linear modules are typically mounted on aluminum or FR-4 boards and integrated directly into professional lighting fixtures such as office luminaires, retail display lighting, and architectural linear lights.

Key Characteristics of LED Linear Modules

• Rigid PCB structure
• Efficient heat dissipation
• Consistent optical performance
• Long operational lifespan
• Suitable for industrial and commercial fixtures

Common Components in LED Linear Modules

ส่วนประกอบ	เดินเครื่อง
ชิป LED	Produce light output
อลูมิเนียม PCB	การกระจายความร้อน
Optical lens or diffuser	Control light distribution
Connectors (WAGO / Zhaga)	Electrical connection
ไดร์เวอร์ LED	Converts AC power to DC power and regulates current to ensure stable LED operation

Many commercial LED linear modules are designed to work with constant current LED drivers. These drivers deliver a fixed current to LEDs connected in series, ensuring consistent brightness, improved efficiency, and longer operational lifespan in professional lighting systems.

Typical Electrical Specifications

วง	ช่วงทั่วไป
Operating Current	350–700mA
Forward Voltage	20–60V
Power per module	5W–30W
Driver Type	ไดรเวอร์ปัจจุบันคงที่

Custom Linear LED Modules for OEM Projects

Because of their structure and thermal management capabilities, LED linear modules are commonly used in professional lighting fixtures and architectural lighting systems.

What Is an LED Strip Light (Tape Light) and How Does It Work?

LED strip lights—also known as LED tape lights—are flexible circuit boards populated with surface-mounted LEDs. They are cuttable, adhesive-backed, and ideal for decorative or accent lighting.

LED strips are widely used in decorative lighting, under-cabinet lighting, accent lighting, and residential applications.

Main Features of LED Strip Lights

• PCB ที่ยืดหยุ่น
• Adhesive backing for easy installation
• Cuttable segments
• Low voltage operation
• Available in multiple colors and color temperatures

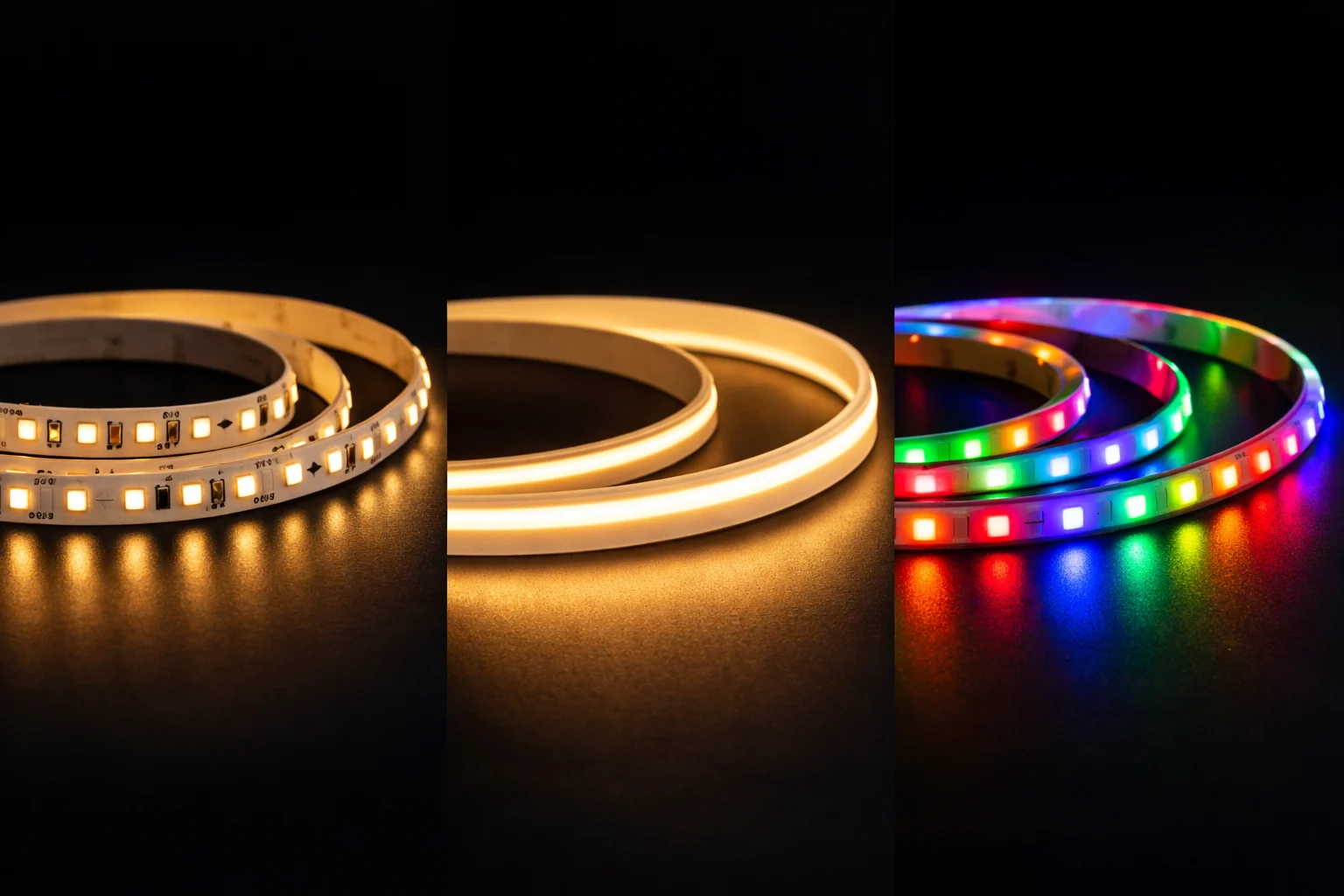

Common Types of LED Strip Lights

พิมพ์	รูปพรรณ
แถบ LED SMD	Standard LED strip technology
แถบไฟ LED COB	Continuous light output
แถบ LED RGB	Multi-color lighting
แถบ LED สีขาวปรับได้	Adjustable color temperature

Typical LED Strip Specifications

วง	ช่วงทั่วไป
แรงดันไฟฟ้า	12V/24V
การใช้พลังงาน	4W – 20W per meter
อายุขัย	30,000 – 50,000 hours
เรตติ้งไอพี	IP20 – IP67

Because of their flexibility and simplicity, LED strips are ideal for accent lighting and decorative lighting projects.

LED Linear Modules vs LED Strip Lights: Key Differences

The main difference between LED linear modules and LED strip lights lies in their structure, durability, and intended use. Linear modules are rigid lighting boards designed for professional lighting fixtures, while LED strips are flexible circuits typically used for decorative or residential lighting installations.

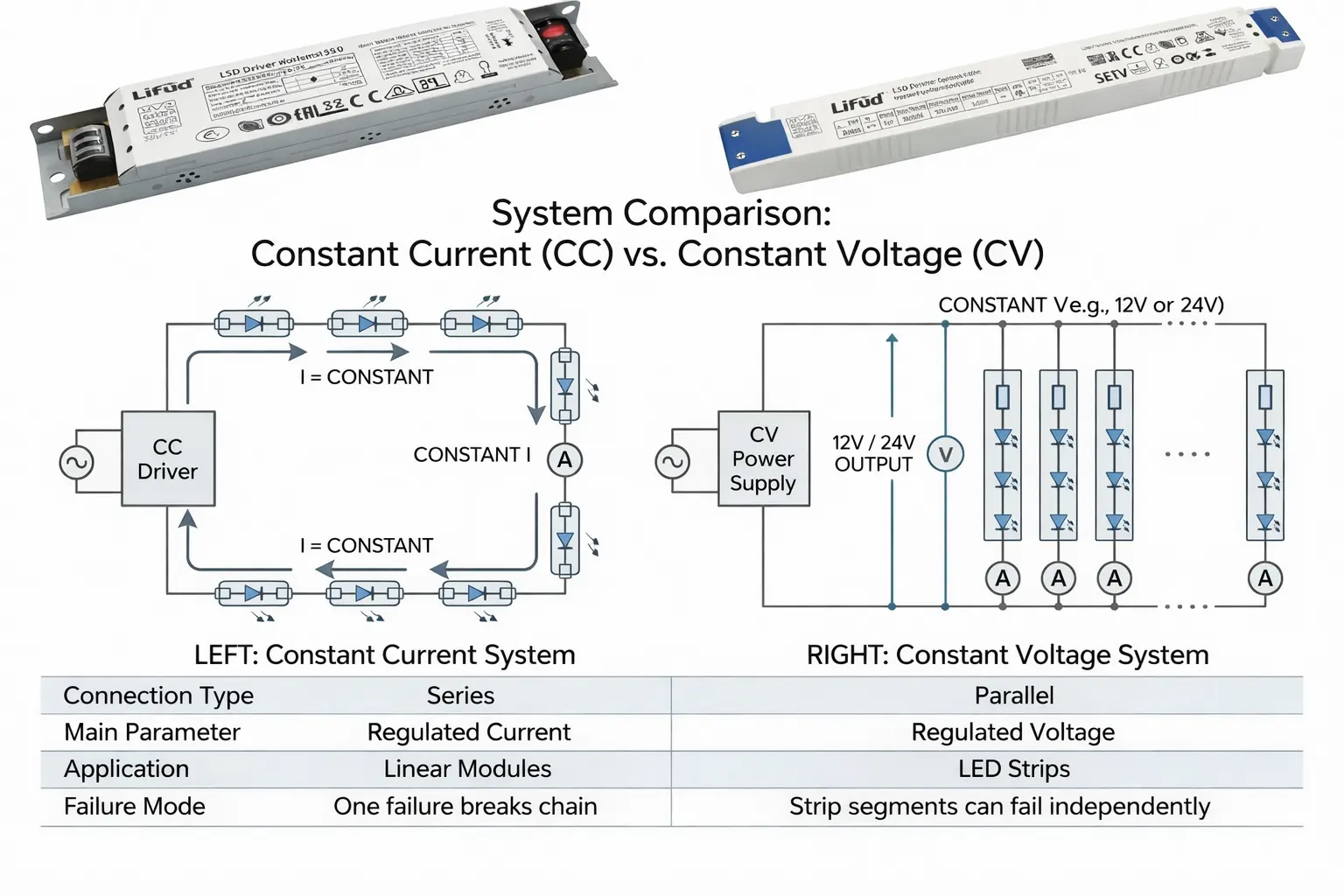

Electrical Difference: Constant Current vs Constant Voltage Systems

The most important electrical difference between LED linear modules and LED strip lights is the driver type used to power the LEDs. LED strip lights typically operate in constant voltage (CV) systems, usually 12V or 24V DC, where current is limited by resistors in each LED segment. In contrast, many LED linear modules used in commercial lighting operate in constant current (CC) systems, where a dedicated LED driver provides a fixed current (such as 350mA or 700mA) to a series of LEDs. Constant current systems ensure that every LED receives the same current, improving efficiency, brightness consistency, and lifespan in professional lighting applications.

Constant Current vs Constant Voltage LED Systems

ลักษณะ	Constant Voltage System	Constant Current System
Typical Product	ไฟ LED แถบ	โมดูลเชิงเส้น LED
Driver Type	Constant voltage driver	ไดรเวอร์ปัจจุบันคงที่
การป้อน	12V/24V DC	Fixed current (350–700mA typical)
LED Connection	Parallel segments with resistors	LEDs connected in series
การควบคุมปัจจุบัน	Resistors limit current	Driver regulates current
สมรรถ	มัชฌ	ยิ่งกว่า
Brightness Consistency	สายกลาง	อุจ

LED strip lights rely on constant voltage power supplies and resistor-based current control, while LED linear modules used in professional lighting systems often rely on constant current drivers to maintain stable LED performance.

Flexible LED Strip vs Rigid LED Linear Module

Flexible LED strips and rigid LED linear modules are two common types of linear LED lighting, but they differ in structure, electrical design, and applications. Flexible LED strips use thin flexible PCBs and typically operate in constant voltage systems such as 12V or 24V, making them easy to bend and install in decorative lighting projects. Rigid LED linear modules use aluminum or FR-4 boards and are commonly powered by constant current LED drivers, which allows higher brightness, better heat dissipation, and more stable performance in commercial lighting fixtures.

In general, LED strips are widely used for accent lighting and residential installations, while LED linear modules are preferred for commercial luminaires, retail lighting, and architectural linear lighting systems.

Structural Differences

The primary structural difference between LED linear modules and LED strip lights lies in the type of circuit board used. LED linear modules are built on rigid boards such as aluminum PCBs, while LED strip lights use flexible printed circuit boards (FPC) designed for bending and easy installation.

Rigid aluminum boards provide better mechanical stability and improved heat transfer, which makes LED linear modules suitable for integration into commercial lighting fixtures such as office luminaires, retail displays, and architectural linear lights. In contrast, LED strip lights prioritize flexibility and simple installation. They often include adhesive backing and can be cut or bent to fit cabinets, shelves, and decorative lighting installations.

Key takeaway:
LED linear modules emphasize durability and fixture integration, while LED strip lights focus on flexibility and quick installation.

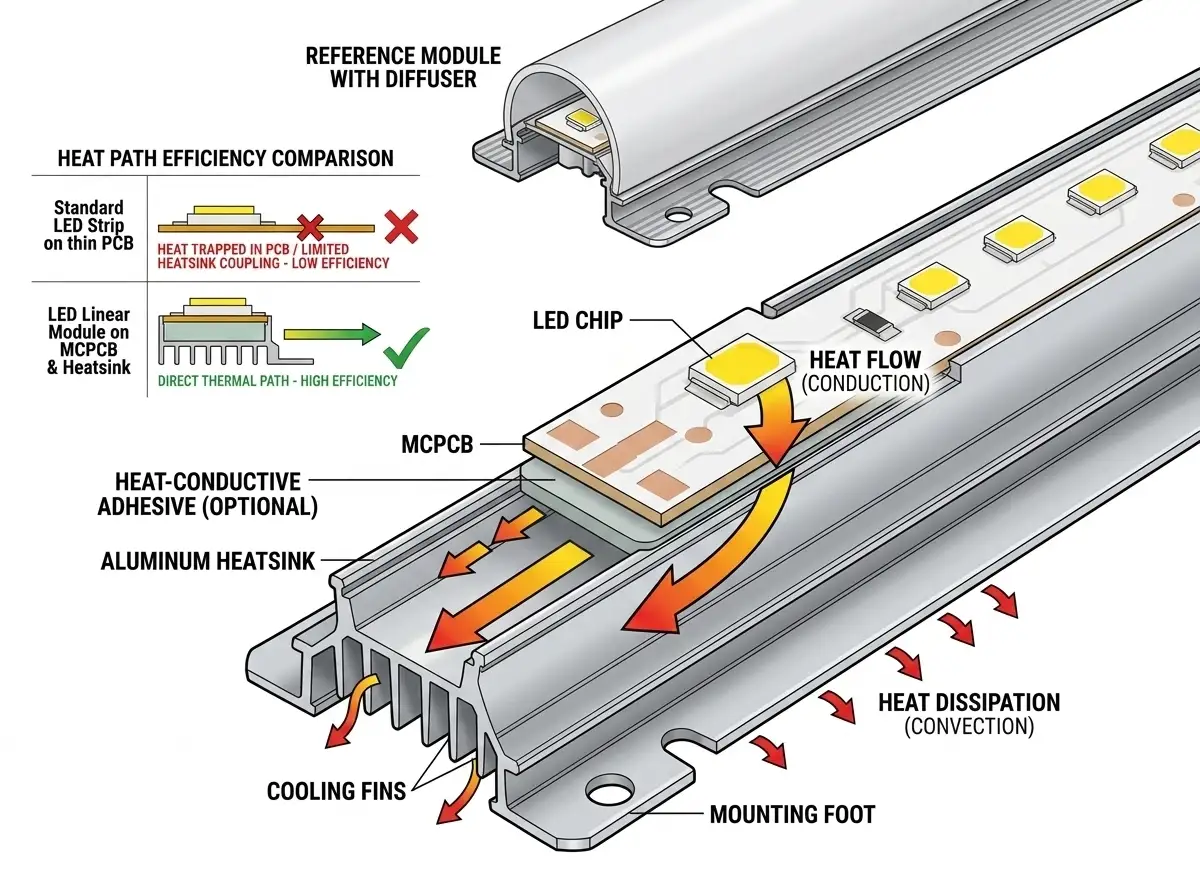

การจัดการความร้อน

Thermal management is a critical factor affecting LED efficiency, brightness stability, and lifespan. LED linear modules typically provide better heat dissipation because they use aluminum PCBs that transfer heat away from LED chips and into the luminaire body or heat sink.

Efficient heat transfer helps maintain stable operating temperatures, which improves LED performance and extends operational life. Many commercial LED linear modules can achieve lifespans of 50,000–100,000 hours under proper thermal conditions. LED strip lights, however, rely on thin flexible circuit boards that dissipate heat less efficiently. For improved performance, they are often installed in aluminum channels or profiles to help manage heat.

Key takeaway:
LED linear modules offer superior thermal stability for high-power lighting, while LED strips are better suited for low-power decorative applications.

Besides structural design, thermal management is another key factor that affects LED performance and long-term reliability.

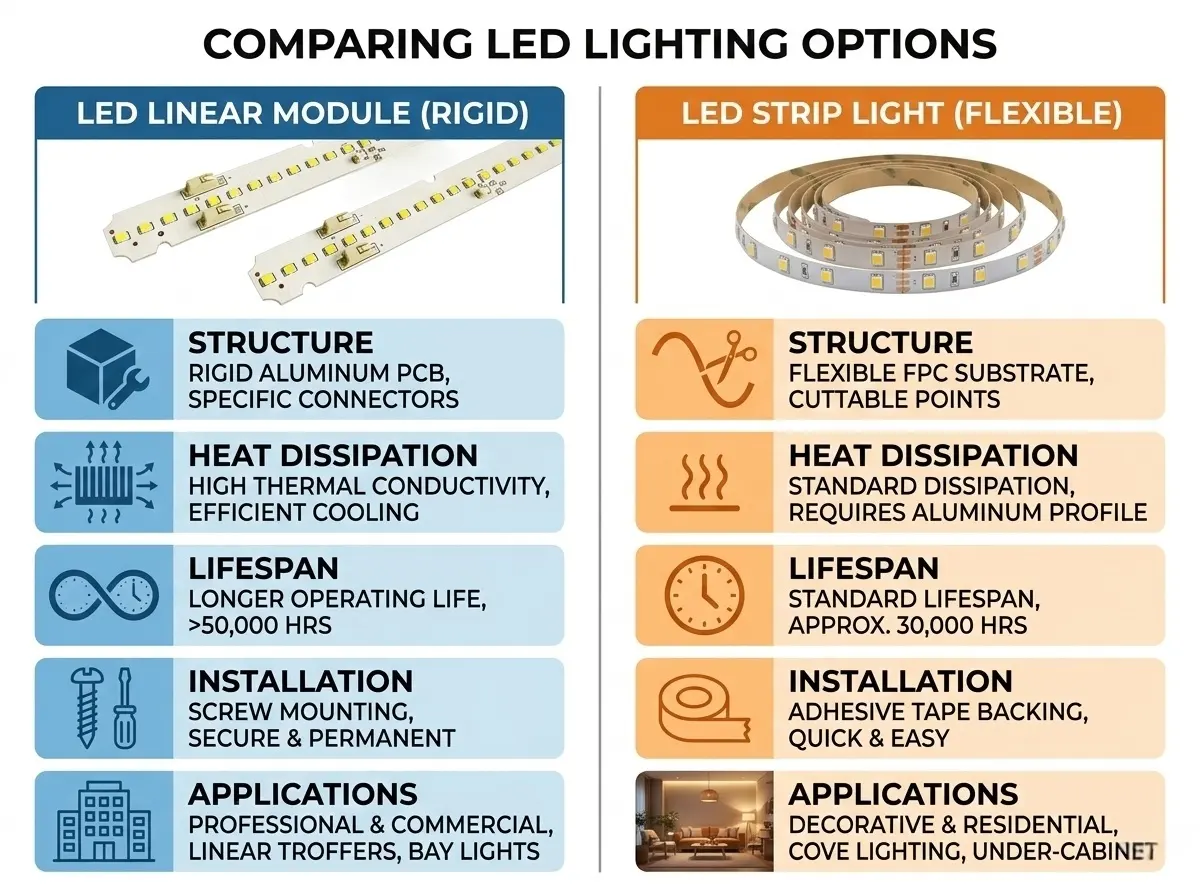

LED Linear Modules vs LED Strip Lights: Comparison Summary

When choosing between LED linear modules and LED strip lights, it is important to compare their structure, performance, installation method, and typical applications. The table below highlights the key technical differences between LED linear modules and LED strip lights, including driver type, electrical input, structure, and typical applications.

ลักษณะ	โมดูลเชิงเส้น LED	ไฟ LED แถบ
โครงร่าง	Rigid PCB board	Flexible PCB tape
Driver Type	ไดรเวอร์ปัจจุบันคงที่	Constant voltage power supply
Electrical Input	Constant current (350–700mA typical)	12V หรือ 24V DC
การใช้งานหลัก	Commercial lighting fixtures	Accent and decorative lighting
การประกอบ	Mounted inside fixtures	Adhesive or aluminum channels
การกระจายความร้อน	Excellent thermal performance	Limited heat dissipation
อายุขัย	50,000–100,000 hours	30,000–50,000 ชั่วโมง
การบำรุง	Modular replacement possible	Entire strip often replaced
การใช้งานทั่วไป	Office lighting, retail fixtures	Cabinet lighting, accent lighting

Cost Difference Between LED Strip Lights and LED Linear Modules

The cost of LED strip lights and LED linear modules varies depending on LED density, brightness, PCB material, and certification requirements. In general, flexible LED strip lights are lower-cost lighting components, while rigid LED linear modules are designed for higher brightness and professional lighting fixtures, which usually increases their price.

Flexible LED strips typically use flexible PCBs and constant-voltage designs, which makes them inexpensive and easy to mass-produce. In global supply chains, standard LED strips usually cost around $1–$4 per meter in B2B export pricing, depending on LED density and quality.

Rigid LED linear modules use aluminum PCBs or thicker FR-4 boards, higher-power LED chips, and more robust thermal designs. Because of these structural differences, linear modules are usually more expensive, with typical B2B pricing around $3–$8 per meter for commercial lighting modules.

Typical Price Comparison

ประเภทสินค้า	Typical Power	China Factory Price	Typical B2B Export Price	การใช้งานทั่วไป
Flexible LED Strip	5–15W/m	$0.5–2/m	$1–4/m	Cabinet lighting, accent lighting
แถบไฟ LED COB	10–15W/m	$1.5–3/m	$3–6/m	Architectural decorative lighting
Rigid LED Linear Module	10–30W/m	$1–5/m	$3–8/m	Linear luminaires, retail fixtures
Industrial Linear LED Board	30–50W/m	$3–8/m	$8–20/m	Industrial lighting, plant lighting

Several factors explain the price difference between LED strip lights and LED linear modules:

• PCB material (flexible PCB vs aluminum board)
• LED chip type and density
• brightness output and power level
• certification requirements (UL, ETL, CE, DLC)
• quality control and brand markup

In commercial lighting projects, engineers often choose LED linear modules despite their higher cost, because they provide better heat dissipation, longer lifespan, and more stable light output for professional luminaires.

Industry Expertise in LED Linear Lighting

With the rapid development of LED lighting technology, linear LED modules have become a core component in modern commercial lighting systems. Manufacturers and lighting engineers increasingly rely on modular LED solutions because they offer standardized installation methods, improved thermal performance, and consistent optical output.

Professional lighting manufacturers often design LED linear modules to comply with industry standards such as Zhaga specifications and international safety certifications. These standards ensure compatibility between LED modules, drivers, and lighting fixtures across different manufacturers. Learn about Zhaga Standard for LED Linear Modules หน้า.

For commercial lighting projects—including office lighting, retail displays, and architectural lighting—engineers typically prioritize LED linear modules due to their reliability and long operational lifespan.

This growing adoption demonstrates why LED linear modules are now considered a key technology in modern architectural and commercial lighting systems.

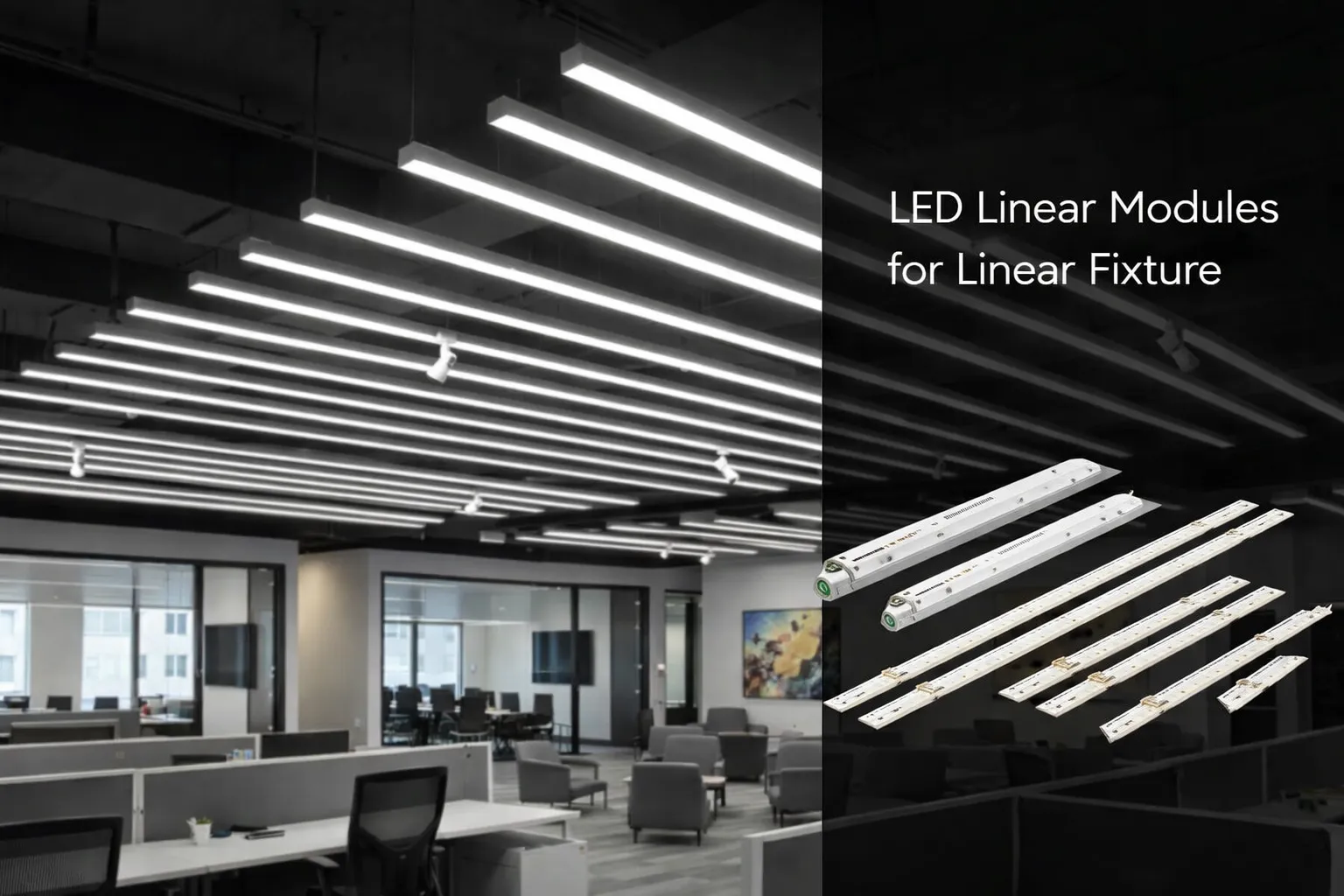

Which Is Better for Commercial Lighting?

For most commercial lighting systems, LED linear modules are the preferred solution because they offer better thermal management, higher reliability, and easier integration into professional lighting fixtures.

LED strip lights are better suited for decorative or flexible installations.

Advantages of LED Linear Modules for Commercial Projects

• Higher reliability
• Better heat management
• อายุการใช้งานยาวนานขึ้น
• Standardized mounting options
• Better compatibility with professional LED drivers

Learn high performance of commercial LED linear modules บทความ

When LED Strip Lights Are a Better Choice

LED strip lights may be preferable when:

• Flexible installation is required
• Lighting is decorative or accent-based
• Low power consumption is needed
• Installation must be simple

Typical Commercial Applications

แอปพลิเคชัน	Recommended Solution
แสงไฟสำนักงาน	โมดูลเชิงเส้น LED
ไฟแสดงสินค้าขายปลีก	โมดูลเชิงเส้น LED
แสงสถาปัตยกรรม	Both options
ไฟตู้	LED灯带
แสงเน้นเสียง	LED灯带

Learn the entire description of LED Linear Module Applications Article.

อย่างไร Electrical Options Are Available for LED Linear Modules?

Most LED linear modules used in commercial lighting operate with constant current LED drivers rather than fixed-voltage power supplies. These drivers deliver a controlled electrical current—commonly 350mA, 500mA, or 700mA—to a series of LEDs, ensuring consistent brightness and reliable performance.

Unlike LED strip lights that typically run on 12V or 24V constant voltage systems, linear modules are designed so that the driver regulates the current while the voltage adjusts automatically based on the number of LEDs in the circuit. As a result, the forward voltage of a module can vary, often ranging between 20V and 60V in commercial lighting fixtures.

Because the current remains constant, LED linear modules maintain stable light output, improved efficiency, and longer lifespan, making them well suited for professional lighting systems.

Understanding the electrical characteristics of LED systems also helps explain why voltage drop behaves differently in constant voltage and constant current lighting designs.

How to Prevent Voltage Drop in LED Lighting Systems

Voltage drop occurs when electrical resistance in wires or connections reduces the voltage along a circuit, which can cause uneven brightness in LED lighting installations.

This problem is most common in constant voltage systems such as LED strip lights, particularly in long installations where voltage gradually decreases as distance from the power supply increases. As a result, LEDs located farther from the power source may appear dimmer.

In constant current LED systems, commonly used with LED linear modules, the driver automatically adjusts the output voltage to maintain a fixed current through the LEDs. This regulation helps maintain uniform brightness and stable light output across the entire lighting module.

Proper electrical design—including selecting the correct LED driver, using appropriate wiring, and distributing loads correctly—helps minimize voltage drop and ensures reliable LED lighting performance.

Are LED Linear Modules Dimmable?

Yes, most LED linear modules support dimming when paired with compatible drivers.

Common Dimming Technologies

วิธีการลดแสง	แอปพลิเคชัน
0-10V	แสงเชิงพาณิชย์
ดอกซวีซต้า	ระบบอาคารอัจฉริยะ
กบ.	LED electronic control
Triac	แสงสว่างสำหรับที่อยู่อาศัย

Dimming can improve energy efficiency, lighting comfort, and system flexibility.

What Power Supply Is Required for LED Lighting Systems?

LED lighting systems require an LED driver that converts AC mains power into controlled electrical output suitable for LEDs. In professional lighting fixtures, LED linear modules are typically powered by constant current LED drivers, which regulate the current supplied to the LEDs to maintain stable brightness and consistent performance.

Unlike constant voltage systems used by LED strip lights, constant current drivers provide a fixed current to LEDs connected in series. The driver automatically adjusts the output voltage according to the total forward voltage of the LED modules in the circuit.

ปัจจัยสำคัญเมื่อเลือกไดรเวอร์ LED

When selecting a driver for LED linear modules, engineers typically consider several factors:

• current rating (for example 350mA, 500mA, or 700mA)
• driver voltage range
• total system power capacity
• dimming compatibility (such as 0–10V or DALI)
• safety and certification requirements

Choosing the correct driver ensures stable light output, efficient operation, and long-term reliability in commercial lighting systems.

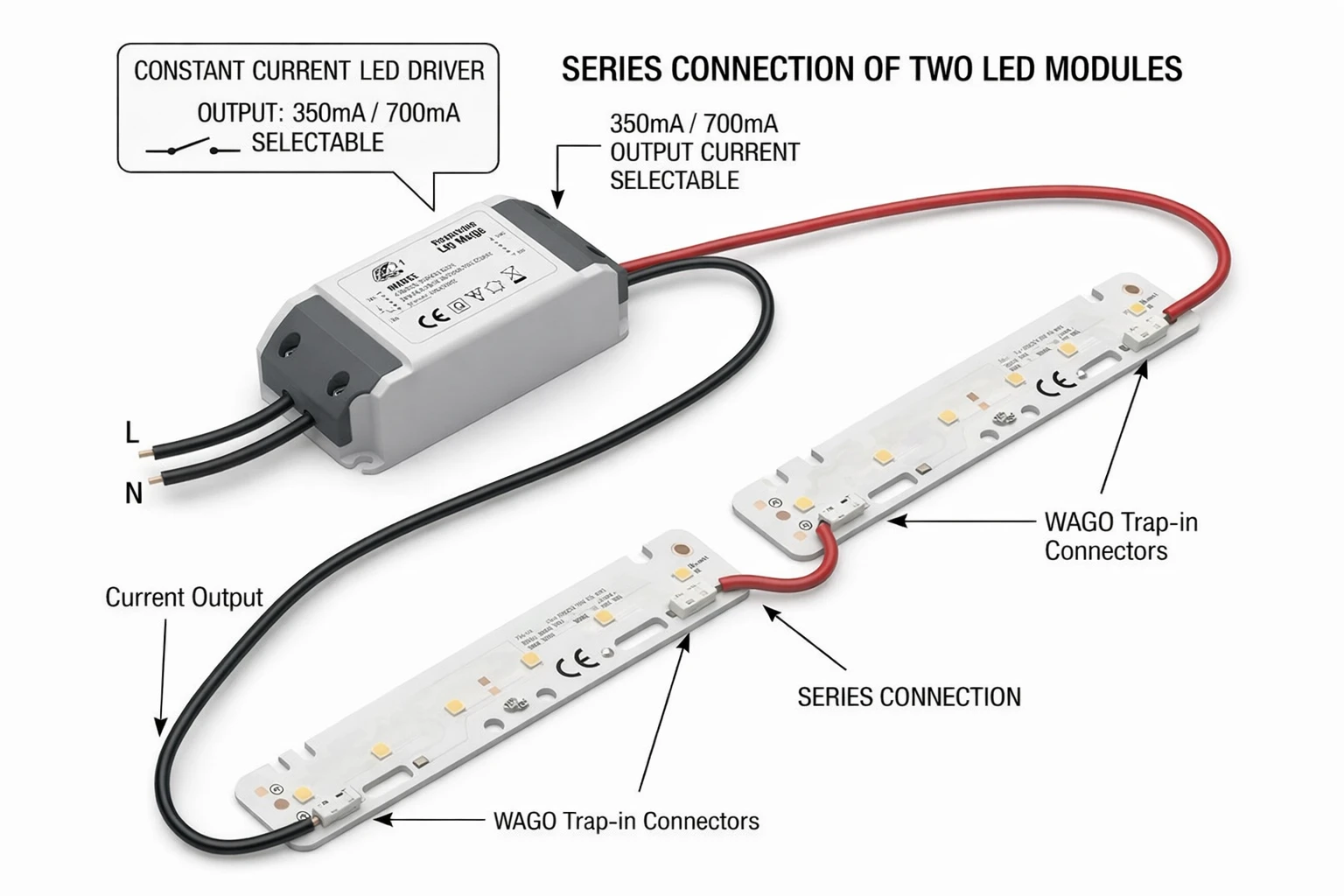

Example Constant Current Driver Calculation

In many LED linear lighting systems, modules are connected in series and powered by a constant current LED driver. In a series circuit, the current remains the same through each module while the total voltage increases.

Example configuration:

• Number of LED modules: 10
• Forward voltage per module: 30V
• Rated current per module: 350mA

If all modules are connected in series:

• Total forward voltage: 30V × 10 = 300V
• Driver current: 350mA constant current
• Total power: 300V × 0.35A ≈ 105W

In practical lighting fixtures, designers usually divide modules into multiple shorter series strings so the driver voltage remains within common ranges (for example 40–120V). This approach improves safety, compatibility with standard LED drivers, and overall system reliability.

Recommended driver:

350mA constant current LED driver with sufficient voltage range and power capacity.

Learn How to Choose the Right LED Driver for Linear Modules Article.

What Color Temperature Should You Choose?

Color temperature is measured in Kelvin (K) and determines the visual tone of the light.

อุณหภูมิสี	รูปโฉม	การใช้งานทั่วไป
2700k	อบอุ่น ขาว	แสงสว่างสำหรับที่อยู่อาศัย
3000k	Warm neutral	การต้อนรับขับสู้
4000k	Neutral white	แสงไฟสำนักงาน
5000K–6500K	ขาวนวล	Industrial lighting

Many modern lighting systems use tunable white technology, allowing users to adjust color temperature dynamically.

Can LED Linear Modules and LED Strip Lights Be Used Outdoors?

LED strip lights and LED linear modules can be used outdoors if they have the appropriate waterproof protection. Outdoor lighting systems typically require an IP65 or higher rating to protect against dust, rain, and moisture exposure.

IP Rating Guide

เรตติ้งไอพี	ระดับการป้องกัน
IP20	Indoor only
ip65	Water resistant
ip67	Outdoor capable
ip68	Submersible

Outdoor installations typically require IP65 or higher protection.

How Much Electricity Do LED Lighting Systems Use?

LED lighting systems are highly energy efficient compared with traditional lighting technologies. Both LED linear modules and LED strip lights consume significantly less electricity while producing more light output, making them a cost-effective solution for residential and commercial lighting applications.

Example Energy Comparison

ประเภทแสง	การใช้พลังงาน	อายุขัย
ฮาโลเจน	60W	2,000 hours
เรือง	20W	10,000 hours
พา	10W	50,000+ ชั่วโมง

LED systems can reduce electricity consumption by 50–80% compared with traditional lighting technologies.

How to Choose the Right Lighting Solution for Your Project

Selecting the correct lighting technology depends on several factors.

Consider These Criteria

1. Application environment
2. Installation structure
3. Required brightness
4. การจัดการความร้อน
5. Electrical design

Quick Selection Guide

สถานการณ์	Recommended Solution
Commercial fixtures	โมดูลเชิงเส้น LED
ไฟประดับ	LED灯带
แสงสถาปัตยกรรม	ทั้งสอง
Long installations	โมดูลเชิงเส้น LED
Flexible installation	LED灯带

บทสรุป

LED linear modules are the preferred choice for commercial and architectural lighting, offering longer lifespan, better thermal management, and standardized installation. LED strip lights are ideal for decorative, accent, or flexible installations.

Choosing the correct solution depends on application type, installation environment, electrical design, and maintenance needs.

คำถามที่พบบ่อย
