At night, modern cities come alive with dazzling building facades that seem to play videos like giant screens. The dynamic visuals on skyscrapers, bridges, and landmarks are not always created by traditional LED displays, but often by LED video strip lights. These rigid linear fixtures, installed across architectural surfaces, transform static structures into vibrant media facades. With precise pixel control, they can deliver animations, graphics, and even video playback, making them a powerful tool in architectural lighting, entertainment, and urban design.
What is a Video LED Pixel Strip Light (Rigid Type)?
A Video LED Pixel Strip Light—also known as LED video strip, pixel bar, LED rigid video bar, media strip, or digital pixel linear light—is a linear lighting fixture designed for large-scale visual displays. Unlike flexible LED strips, these rigid bars are built with aluminum housing, durable PCB and waterproof protection to ensure stability, heat dissipation, and long-term outdoor performance.
Each strip integrates high-brightness LEDs with intelligent driver ICs, allowing every pixel to be individually addressed. This enables the creation of dynamic effects such as color chasing, animations, text, and even low-resolution video playback. By arranging multiple strips in a grid or along building facades, designers can transform ordinary architectural surfaces into massive video-capable installations.

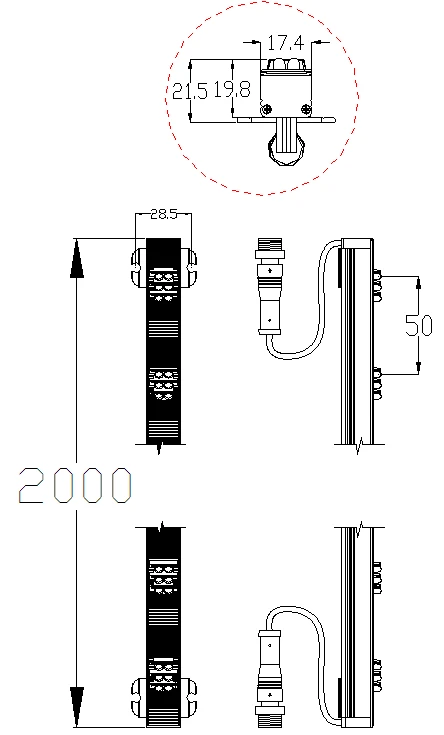

Key Components and Structure
A Video LED Pixel Strip Light is built with robust components to ensure reliable performance in demanding architectural and outdoor environments.
LED Sources: Typically use high-brightness RGB LEDs such as SMD3535, SMD5050, SMD2727, or DIP346, offering vivid colors and long lifespan.
Driver IC: Integrated circuits enable precise pixel control. Common types include DMX512-based ICs such as UCS512 and TM512, and SPI-based ICs such as WS2811 and SM16703.
Housing Material: Rigid aluminum body with a PC cover, providing both heat dissipation and environmental protection.
PCB: Manufactured with FR4 or aluminum substrates, ensuring efficient heat management and structural stability.
Connection System: Equipped with power and signal cables, usually with waterproof connectors for quick installation and reliable outdoor use.
Mounting Accessories: Various aluminum profiles, brackets, and clips are available, enabling flexible mounting on building facades, bridges, and other structures.
기술 사양
Video LED Pixel Strip Lights are defined by several key parameters that determine their performance and suitability for different projects. Below is an overview of the most common specifications:
| 매개변수 | 설명 | 일반적인 값 |

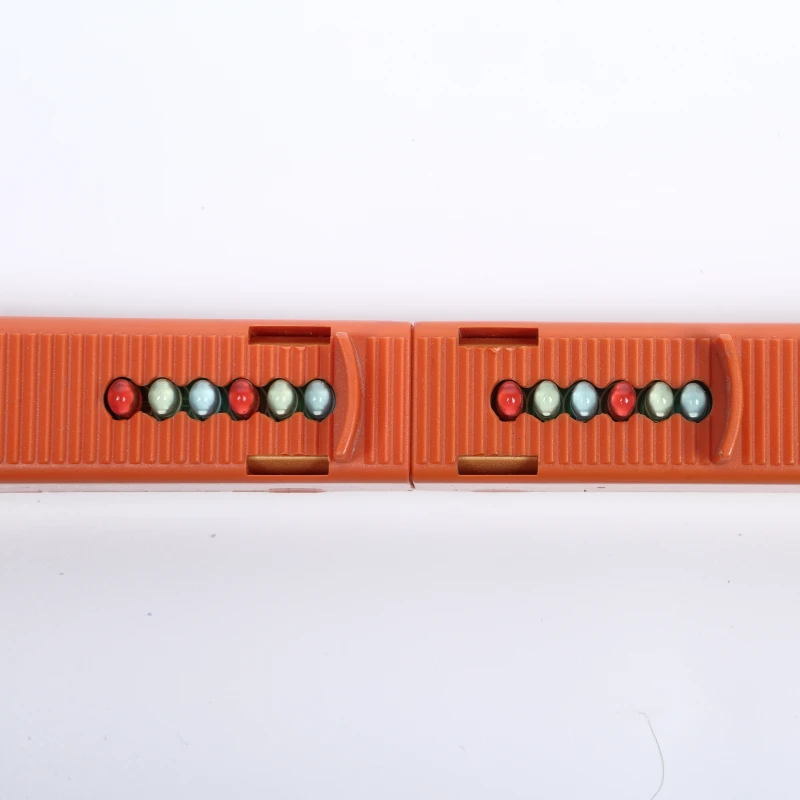

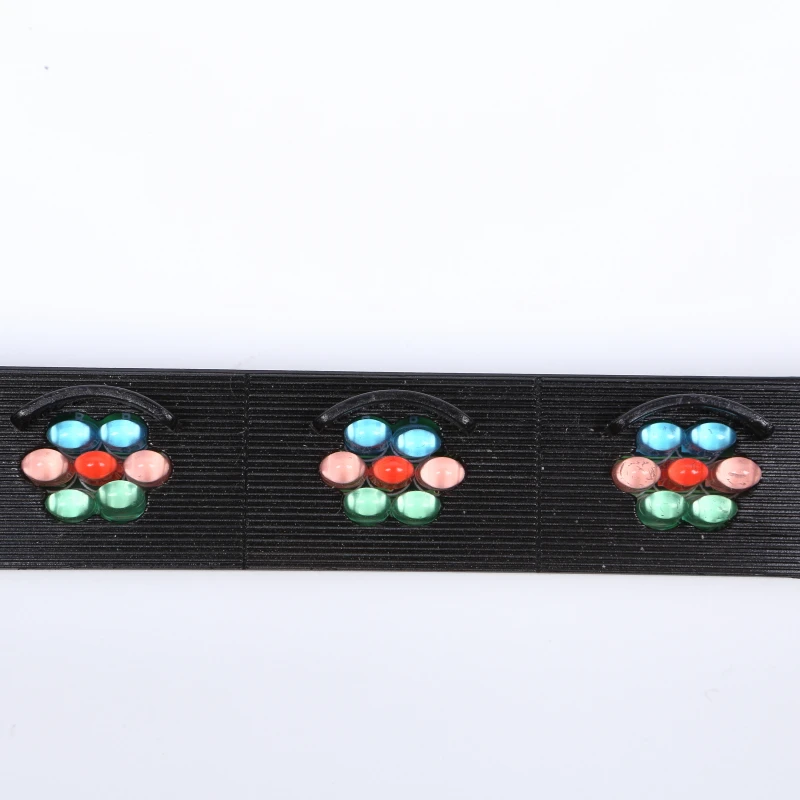

| Pixel Composition | Each pixel consists of RGB LEDs controlled by a driver IC | 1R1G1B for 3-in-1 RGB SMD chips 2R2G2B or 5R4G4B for DIP chips, can be customized |
| Pixel Density | Number of pixels per meter, affects resolution and video clarity | 8–60 pixels/m (commonly 31.25 and 50 pixels/m) |
| 밝기 | Light output per pixel or per meter | 800–4000 cd/m depending on LED type |
| 전압 | Operating voltage, higher voltages reduce power loss over distance | DC24V / DC48V |
| 전력 소비량 | Energy use per meter | 12–40 W/m depending on density and brightness |
| 길이 | Standard module length, extendable via modular connection | 0.5m / 1.0m per bar, mostly decided by the project needs |
| Viewing Angle | Beam spread of the emitted light | 110°–120° or 90*45° |
| Gray Scale | Number of brightness levels per channel | 8-bit (256 levels) to 16-bit (65,536 levels) |
| Refresh Rate | Frequency of data updates, affects flicker and video quality | ≥1000 Hz, high-end models ≥2000 Hz |
| 방수 등급 | Level of protection against dust and water | IP65, IP66, IP67 (outdoor); IP20 (indoor) |
Advantages of Video LED Pixel Strip Lights
Video LED Pixel Strip Lights offer several distinct advantages that make them a preferred choice for large-scale architectural and media projects:
Modular Design for Large Displays
These strips are designed for seamless modular connection, allowing integrators to build massive video matrices across building facades, bridges, or stage backdrops. The system can scale from small installations to city-scale media facades.
High Brightness for Long-Distance Viewing
With high-intensity LEDs, the strips deliver excellent visibility even from hundreds of meters away, creating effects similar to conventional LED display screens but with more design flexibility.
Programmable and Software-Compatible
Each pixel is individually addressable, enabling dynamic color-changing effects, animations, and even video playback. They are compatible with professional lighting and media control software, ensuring smooth synchronization and creative freedom.
Strong Customization Options
Length, pixel density, and mounting methods can be customized to match specific architectural requirements. Tailor-made solutions reduce installation costs while improving aesthetics by blending with the building structure.
Durable Housing and Weather Resistance
Built with aluminum alloy housings and professional waterproof designs, the strips are engineered for long-term outdoor use. They withstand UV exposure, rain, and temperature variations, ensuring reliable performance in demanding environments.
Applications of Video LED Pixel Strip Lights
Thanks to their flexibility, durability, and high visual impact, Video LED Pixel Strip Lights are widely adopted across various industries:
Architectural Media Facades
Installed on skyscrapers, commercial complexes, and landmark buildings, pixel strips transform plain facades into giant dynamic canvases. They are often used for city skylines, corporate branding, and holiday lighting displays.
Bridges and Landmarks
With their high brightness and long viewing distance, these strips are ideal for illuminating bridges, towers, and iconic landmarks. They create spectacular nighttime visuals while enhancing the city’s cultural identity.
Stage and Entertainment
In concerts, festivals, and theme events, video pixel bars serve as dynamic backdrops, synchronized with music and lighting. Their programmable features allow lighting designers to achieve immersive visual effects.
Advertising and Signage
Beyond static billboards, media strips enable creative digital signage solutions. They can display animations, text, and low-resolution videos in a more cost-effective and customizable way than traditional LED displays.
Theme Parks and Exhibitions
In immersive environments such as amusement parks, museums, or exhibitions, pixel strips are used for interactive installations, guiding visitors through visually engaging experiences.
Installation & Control Considerations
Power Configuration and Voltage Drop
For large-scale installations, stable power distribution is critical. Long runs often use DC48V systems to minimize voltage drop and reduce wiring complexity, ensuring consistent brightness across the entire facade.
Signal Transmission
Video LED Pixel Strip Lights commonly adopt DMX512 or Artnet protocols, which provide reliable synchronization for large video matrices. Proper signal amplification is necessary for long-distance data transmission.
Wiring and Protection
Quick-connect waterproof connectors and weatherproof cabling are widely used to simplify installation while maintaining long-term durability in outdoor environments.
System Integration
These strips are fully compatible with professional media servers and lighting control software such as Madrix, Resolume, and Arkaos, enabling smooth video playback and synchronized effects.
유지 관리
Each bar is modular and supports hot-swappable replacement, allowing quick servicing without disrupting the entire installation.
IF you are interested in this products, we are glad to introduce it to you.
