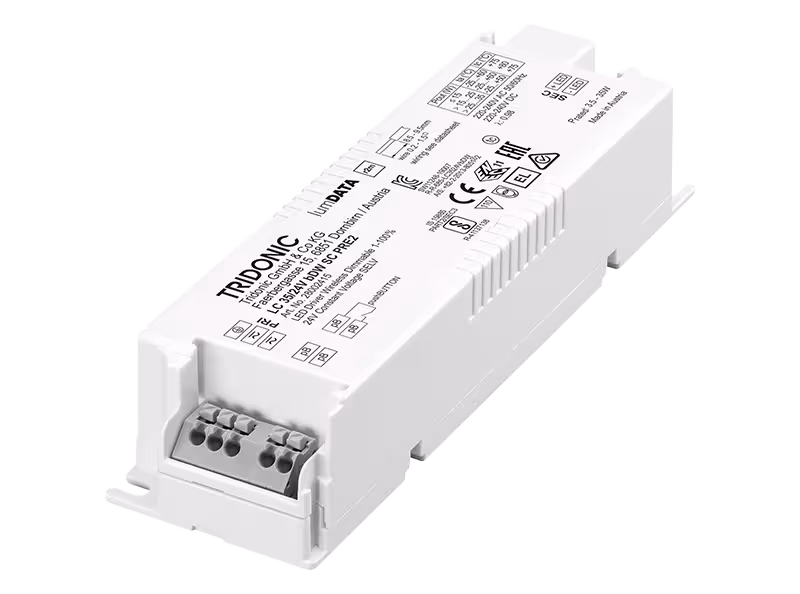

Driver LCA 35W 24V one4all SC PRE
Product: LCA 35W 24V
Dimmable 24V constant voltage LED Driver for flexible constant voltage strips
Can bei either used built-in or independent with clip-on strain-relief
One4all interface and ready2mains enable different dimming options
Dimming range 1 to 100 %
Suitable for emergency escape lighting systems acc. to EN 50172
5-year guarantee
AC voltage range:
Output voltage:
Typ. current:
Max. input power:
Typ. efficiency:
λ (PF):
Dimming range:
IP Rating:
Life-time:
Dimensions:
AC198 – 264 V
DC24V
176 mA
40W
89%
0.98
1-100%
IP20
up to 50,000 h
195 x 43 x 30.2 mm
