Custom Outdoor LED Sign Letters for Rooftop Installation: A Project Case Study

An Austrian customer ordered 11 illuminated letters and a three-part logo for a rooftop sign. The letters were approximately 400 mm high and 100 mm deep, with frosted acrylic faces, matte-black stainless steel returns and 4000K white lighting.

Before fabrication, we worked through the details that were missing from the initial enquiry: the logo finish, mounting points, drainage and power supply. We also corrected a quotation error involving the letter depth.

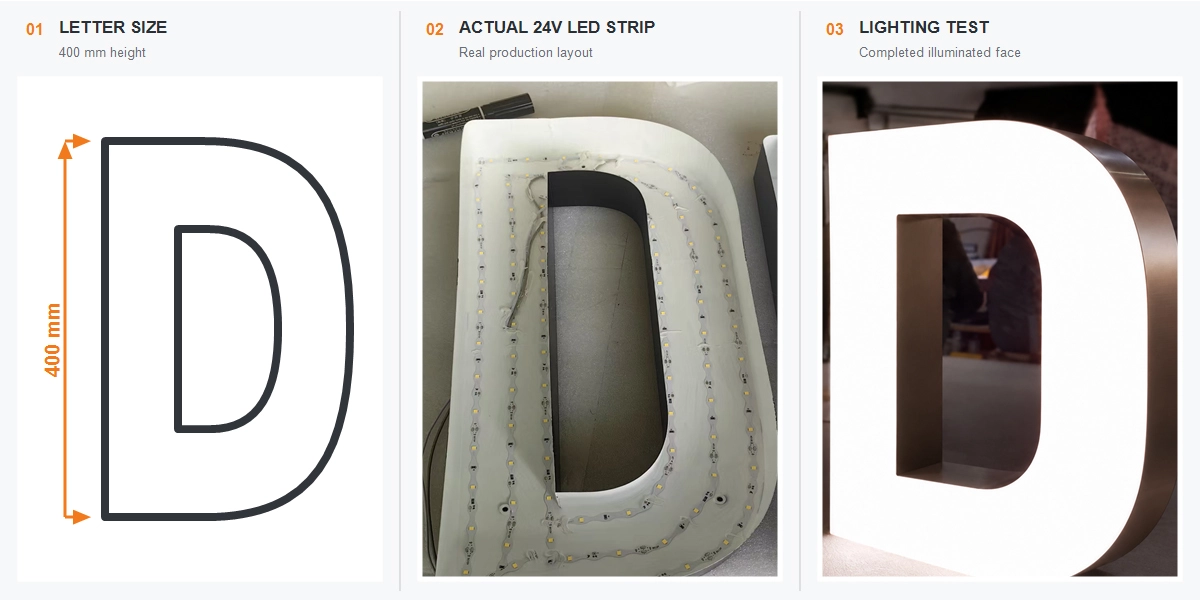

The finished letters were arranged and illuminated together on the factory floor before packing. This case study covers how the specification was agreed and what we checked before the order was ready for collection.

custom-led-letter-d-process-overview

Project at a Glance

Project itemConfirmed specification
ApplicationOutdoor rooftop signage
Product configuration11 individual LED letters plus a three-part logo
Letter dimensionsApprox. 400 mm high × 100 mm deep
Face5 mm frosted acrylic
Letter bodyMatte-black stainless steel returns and stainless steel backs
Lighting24V LED strip, 4000K white
InstallationM6 mounting hardware with lower drain holes
Logo finishUV print matched to specified color values
Power supplyWaterproof Mean Well driver with EU plug

The Enquiry Started with Three Basic Requirements

The customer’s first enquiry described individual 3D letters, approximately 400 mm high and 100 mm deep, with internal lighting.

“We would like the company name made as individual 3D letters, with capital letters approximately 40 cm high and 10 cm deep.”

That gave us enough information for an initial estimate. To prepare the production drawing, we still needed the final artwork, material choices, light color and mounting details.

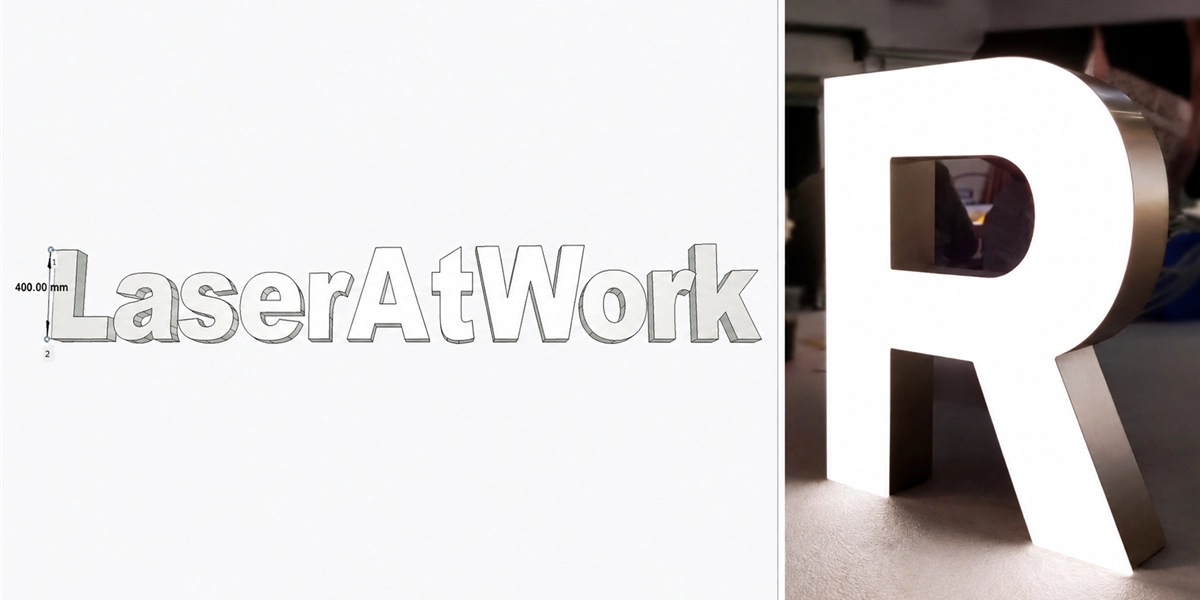

The design called for front-lit channel letters: a fabricated metal body with LEDs inside and an acrylic face through which the light would pass.

initial-3d-led-sign-letter-concept

At that point, three requirements were clear. The company name had to be made as separate fabricated letters, each letter needed internal LED illumination, and the finished sign had to reproduce the customer’s own branding.

These requirements indicated that the project needed custom front-lit channel letters rather than standard off-the-shelf signage.

Buyers who have not yet selected an illumination style can compare the construction and applications of front-lit, back-lit and halo-lit LED letter signs before finalizing their design.

The customer initially requested a budgetary quotation. This provided an early indication of cost, but it was not yet a production-ready specification. The artwork, materials, lighting system and rooftop mounting method still required clarification.

This distinction is important when sourcing custom sign letters. A preliminary quote can be prepared from approximate dimensions, but a final quotation should be based on the latest drawing and confirmed construction.

From a Logo File to a Production Specification

After receiving the initial estimate, the buyer asked whether the LED light source was included, whether the letters could operate at 24V DC, which metals would be used and what acrylic colors were available.

These questions gradually converted the visual concept into a manufacturable outdoor sign.

A 24V, 4000K Lighting System

The lighting was included in the proposed construction. The customer asked for 24V DC operation, and the final specification used 24V LED strips with a waterproof Mean Well driver and an EU plug.

We offered 6000K and 4000K white. The customer selected 4000K, so that color temperature was added to the approved specification before production.

Standard Zigzag LED Strip

SMD2835 6mm S-shaped White LED Strip Light

  • Product: SMD2835-60LED-6MM-S
  • Input Voltage: DC12V/ 24V
  • Watt: 6W/ 7.2W per meter
  • LED QTY: 60pcs/ 72pcs/ 120pcs
  • Color: 3000K/4000K/6500K/R/G/Y/B
  • CRI : Ra 70/80/ 90 @3000K/4000K/6500K
  • Luminous flux: 110-115lm/W @Ra70
  • IP Grade: IP33
  • Beam Angle: 120°

Frosted Acrylic with Black Stainless Steel Returns

Each letter used a 5 mm frosted acrylic face, recessed approximately 3 mm into the body with around 2 mm exposed.

The returns were made from 0.6 mm stainless steel with a matte-black finish. The back plates were 1.5 mm stainless steel, and the overall letter depth was 100 mm.

The frosted acrylic helped diffuse the LED light across the face. Light uniformity also depended on the letter shape, LED spacing and internal surfaces.

For a comparison of material options, see our guide to choosing acrylic or metal for custom 3D sign letters.

Matching the Color of the Separate Logo Element

The final design included more than the company name. The customer added a small graphic element made up of three separate components.

The intended color was initially described as tan, beige or light brown. Those descriptions were suitable for the early discussion but were not precise enough for production. The same word can appear noticeably different across monitors, printing processes and acrylic samples.

The solution was to UV-print the graphic on acrylic using the customer’s defined color reference:

  • CMYK: 26, 52, 76, 0
  • RGB: 198, 140, 82

These values gave production a clearer target than a general color name.

For custom logo signs, buyers should provide a Pantone, CMYK, RGB or approved physical sample when brand-color accuracy matters. The manufacturing process and substrate can still affect the result, so a physical sample may be advisable for projects requiring particularly close matching.

What the Customer Provided Before Production

A logo image is helpful for an initial discussion, but it is usually not enough to manufacture custom fabricated letters. SignliteLED requested vector artwork and clearly marked dimensions.

Required informationWhy it was needed
Vector logoPreserve the correct letter and graphic shapes
Outlined textPrevent missing-font or font-substitution problems
Letter dimensionsConfirm the actual manufacturing size
Spacing and layoutMaintain the intended overall appearance
Letter depthDefine the side-return construction
Mounting positionsPrepare the back plates correctly
Brand color valuesReproduce the separate graphic element

The accepted artwork formats included AI, vector PDF and DXF. The buyer provided a vector PDF of the logo and a separate dimensional drawing.

Converting the lettering to outlines ensured that the manufacturer received the intended shapes without needing the customer’s original font file.

The vector artwork and production drawing served different purposes. The vector file defined what the logo should look like. The production drawing explained how it would be built, illuminated and installed.

A production drawing may include face dimensions, letter depth, material thicknesses, cable exits, installation holes, mounting bolts and separate logo elements. It should therefore be reviewed even when the original vector artwork is accurate.

The Rooftop Installation Changed the Product Design

The customer asked for M6 threaded mounting points at the rear of each letter to connect it to the planned supporting structure. We confirmed that the mounting points could be added and their positions shown on the production drawing.

Once outdoor rooftop use was confirmed, the agreed construction included reinforcing screws, M6 × 50 mounting bolts, lower drain holes and a waterproof LED driver. The drain holes allowed moisture entering or condensing inside the letters to escape.

We prepared the letter construction and mounting points according to the approved drawing. The supporting frame, wind-load assessment, site wiring, maintenance access and compliance with local building regulations needed to be confirmed by qualified local professionals.

For other mounting options, see our guide to channel letter types, mounting methods and specifications.

 The Approved Construction

Before production, we found that the cost calculation had used 50 mm-deep letters, although the quotation and the customer’s drawing specified 100 mm. We acknowledged the error and agreed a revised amount with the customer, keeping the requested 100 mm depth.

The final specification combined 5 mm frosted acrylic faces, matte-black stainless steel returns and stainless steel back plates with internal 24V LED strips in 4000K white. The production drawing also showed the mounting points and face construction, with approximately 3 mm of the acrylic recessed into the body and 2 mm exposed.

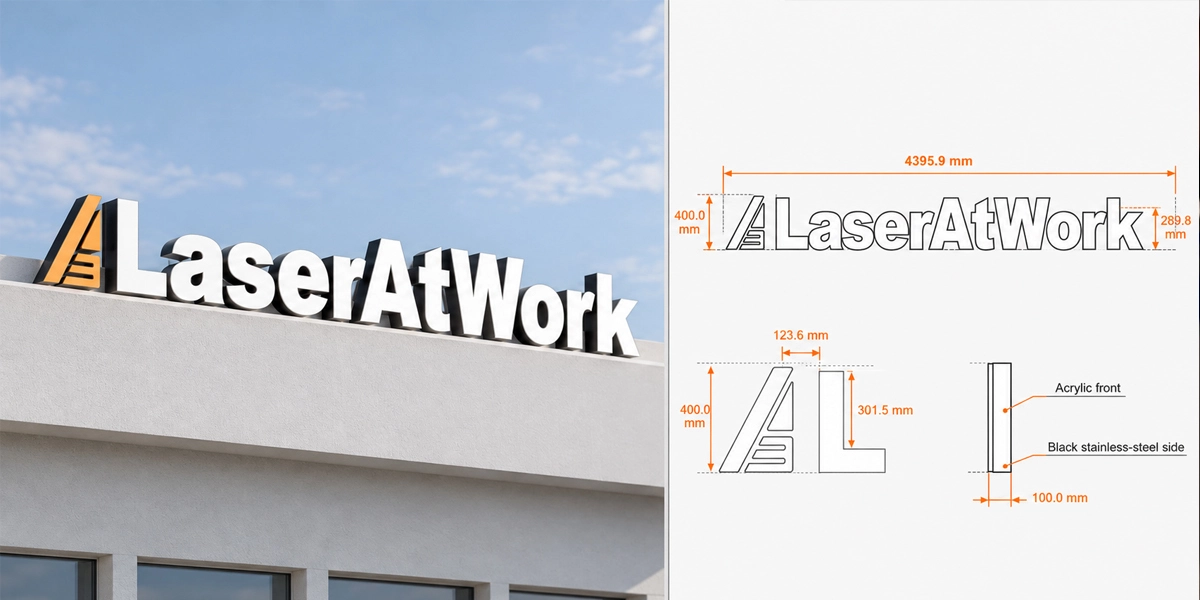

custom-rooftop-led-sign-letters-rendering-drawing

Approved rooftop visualization and production drawing showing the letter dimensions, materials and mounting details.

The installation package included reinforcing screws and M6 × 50 mounting bolts. Lower drain holes were incorporated into the letters, and a waterproof Mean Well driver with an EU plug was specified for the lighting system. The three-part logo element used UV-printed acrylic matched to the customer’s approved color references.

The customer reviewed and approved the consolidated specification before production was released.

Full-Sign Lighting Test Before Packing

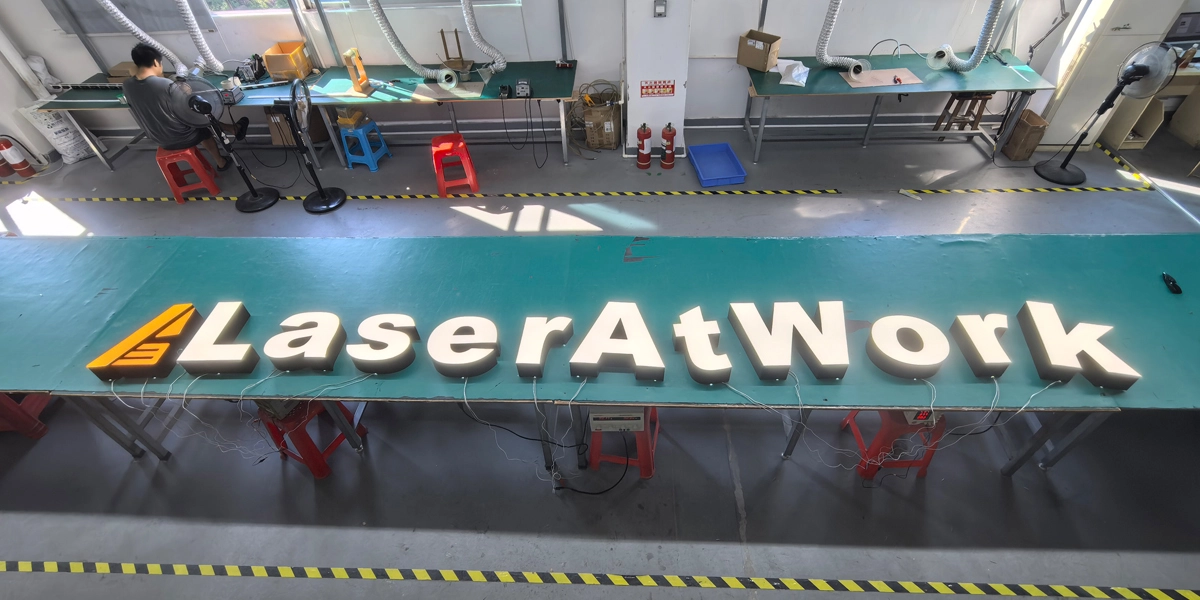

After fabrication, we arranged the letters and logo in sequence and powered the complete set together. We checked the 4000K white illumination, the appearance of the printed logo and brightness consistency across the letters.

custom-led-sign-letters-production-lighting-test

The completed letters and logo during the factory lighting check, before packing.

Each component was then labeled and packed for collection.

Project Timeline

StageOutcome
Initial enquiryApproximate letter height, depth and style received
Budget quotationPreliminary cost prepared for 11 letters
Logo updateA three-part graphic element was added
Artwork reviewVector logo and dimensional information supplied
Official quotationProduct scope prepared for purchase approval
Engineering reviewDifference in letter depth identified and resolved
Application confirmationOutdoor rooftop use and 4000K white confirmed
Drawing approvalMaterials, lighting and mounting details approved
ProductionManufacturing released after payment and approval
CompletionLetters and logo completed in approximately 10–12 days
CollectionBuyer arranged pickup through its courier account

The customer chose to use its own FedEx account for international shipment. SignliteLED therefore provided the final package information so that collection could be scheduled.

When buyers use their own courier accounts, the parties should confirm who will book the collection, prepare the commercial documents, manage export information and handle import clearance.

A Practical RFQ Checklist for Buyers

A clear request for quotation helps the supplier evaluate a project accurately and reduces repeated questions.

For custom outdoor LED sign letters, the RFQ should include:

  • vector logo with all text converted to outlines;
  • number of letters and separate logo elements;
  • target letter height and overall depth;
  • spacing or total installed width;
  • indoor or outdoor environment;
  • wall, roof, frame or freestanding installation;
  • preferred face, return and back materials;
  • paint color or metal finish;
  • working voltage;
  • LED color or white color temperature;
  • power-supply and plug requirements;
  • mounting-hole and cable-exit positions;
  • destination country;
  • required completion date;
  • packaging or shipping restrictions.

Not every buyer will know all these details at the enquiry stage. If a specification is undecided, identify which requirements are fixed and which are open to the manufacturer’s recommendation.

For example, a buyer may already have an approved logo and maximum installation width but still need advice about the letter depth, acrylic construction or internal LED arrangement.

Buyers who need a more detailed pre-production checklist can also read our guide to ordering custom front-lit LED letters, which covers artwork, dimensions, materials, lighting, mounting and quotation details.

Who Is Responsible for What?

Custom signage projects often involve the buyer, sign manufacturer, local installer and sometimes a structural engineer. Clear responsibility prevents important site conditions from being overlooked.

Buyer or local project teamSign supplier
Approves the logo and brand colorsChecks whether the artwork can be manufactured
Defines the target dimensions and layoutProposes a practical letter construction
Provides the installation locationSpecifies suitable product materials
Confirms the supporting surface or framePrepares the agreed mounting points
Confirms local voltage requirementsSelects the internal LED and driver configuration
Evaluates wind load and site structureSupplies the production drawing
Manages local permits and installationPrepares the completed product for shipment

The buyer or local engineering team remains responsible for determining whether the building, roof or supporting frame can safely carry the sign.

The sign supplier is responsible for manufacturing the letters according to the approved production drawing and confirmed product specifications.

Frequently Asked Questions

Conclusion

Planning a Similar Sign?

Send us your vector logo, approximate letter height and depth, installation location and preferred light color. A photo or drawing of the supporting structure will also help us review the mounting requirements.

If some details are still undecided, tell us what has already been fixed. We can help work through the remaining construction and lighting options before preparing the production drawing.

YouTube video

Watch this project’s completed outdoor LED sign letters during production-line testing.
